AF-480
AF-480 - Image 2

AF-480

Watts per Metre

2w/m
IP Rating

IP20
Available Colours

6000k, 4000k, 3000k
Length

50 Metres
LED Type

White
Mounting Type

Adhesiveback
Voltage

24V
SKU: IN-AF480 Category:

Description

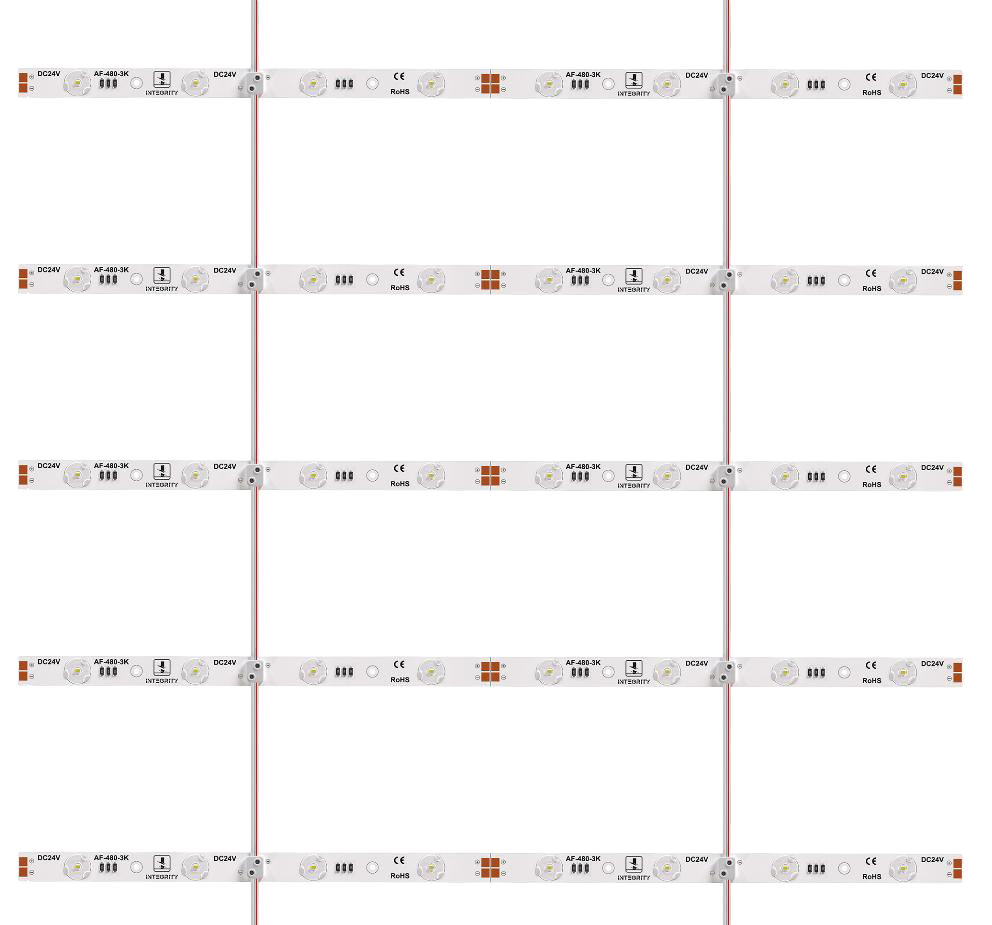

The AF-480 is a low-profile, energy-efficient LED ladder module designed for internal display and signage lighting. Each 480mm LED stick consumes just 2W while delivering an efficacy of up to 170lm/W, providing reliable illumination with low energy consumption.

Heavy-duty 18 AWG stick-to-stick cabling supports runs of up to 50 LED sticks, making the AF-480 suitable for larger installations. The system can be supplied in lengths of up to 5 metres and features a wide 175° beam angle for broad, even light distribution.

The AF-480 is available in 3000K warm white, 4000K neutral white and 6000K cool white. Standard modules offer a CRI of more than 80, with CRI 90+ available upon request. The product is dimmable when paired with a compatible 24V LED driver.

Tech Specs

  • 2W power consumption per 480mm LED stick
  • Up to 170lm/W efficacy
  • 24V DC constant-voltage operation
  • Available in 3000K, 4000K and 6000K
  • Up to 360 lumens per metre, depending on colour temperature
  • Wide 175° beam angle
  • 18 AWG stick-to-stick cabling
  • Supports runs of up to 50 LED sticks
  • Supplied in lengths of up to 5 metres
  • CRI >80 as standard; CRI 90+ available upon request
  • Dimmable with a compatible LED driver
  • IP20 rated for internal use
  • Operating temperature: -10°C to +45°C
  • Five-year warranty
  • UKCA, UL and RoHS certified
  • Tested to the international LM-80 standard

Product Data Sheet

PDF Download
