| Product Height | 14mm |
|---|---|
| Internal Width | 14mm |
| Available Body Colours | Anodised, Black, White |
| Available Diffuser | Click |
| Available Diffuser Colours | Black, Opal, Transparent |
| Available Lengths | 4m, 3m, 2m, 1m |
| Application | Recessed |
| Product Width | 30mm |

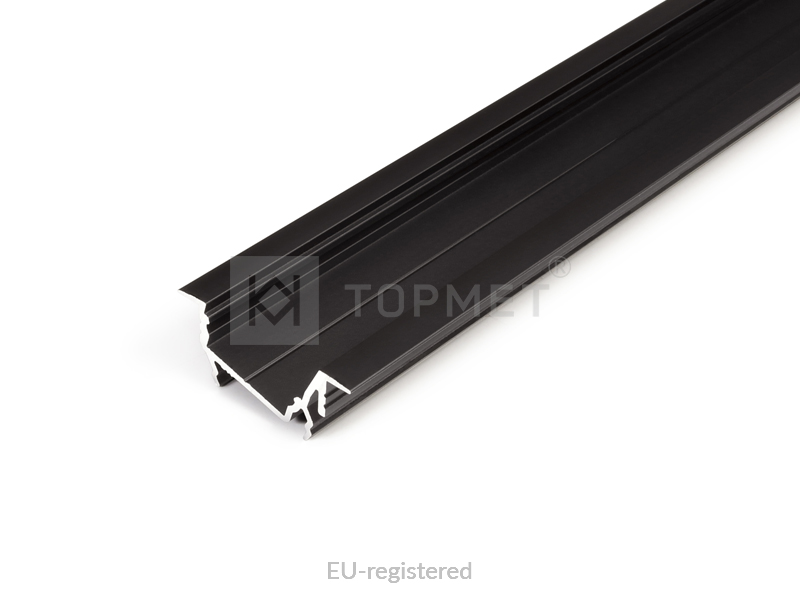

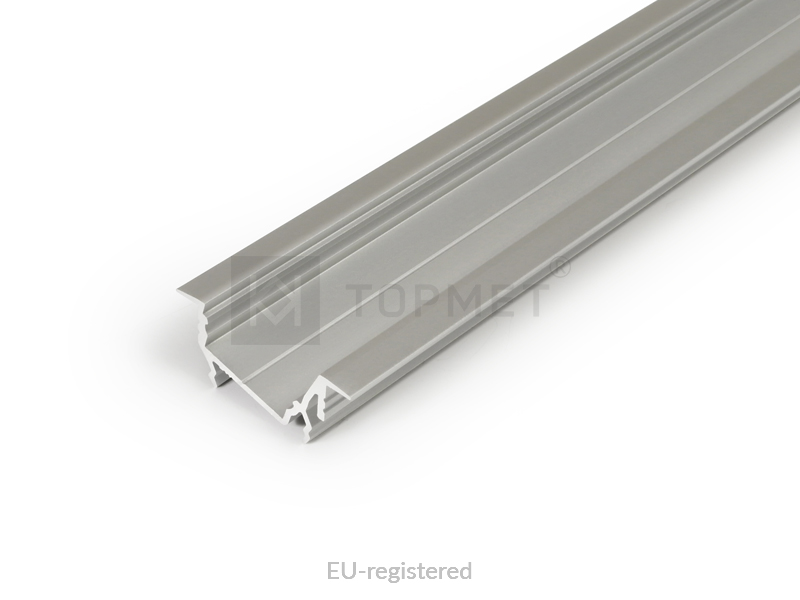

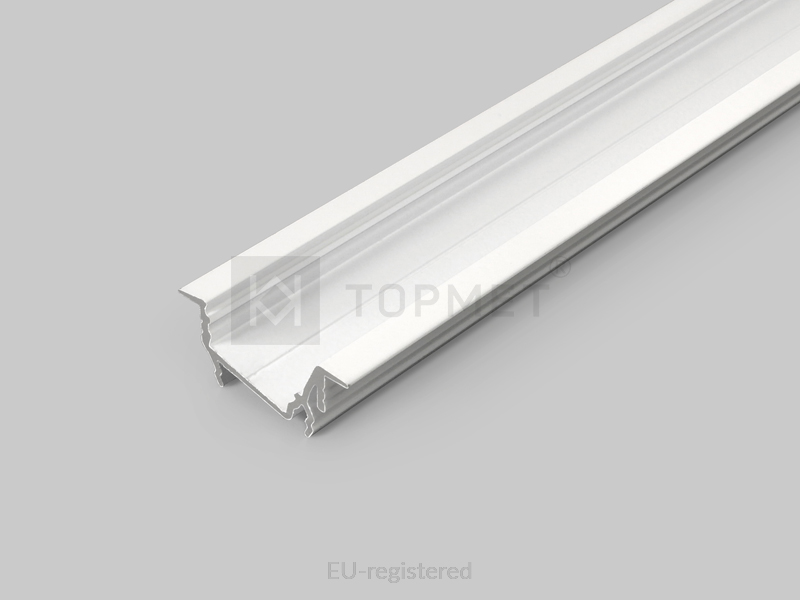

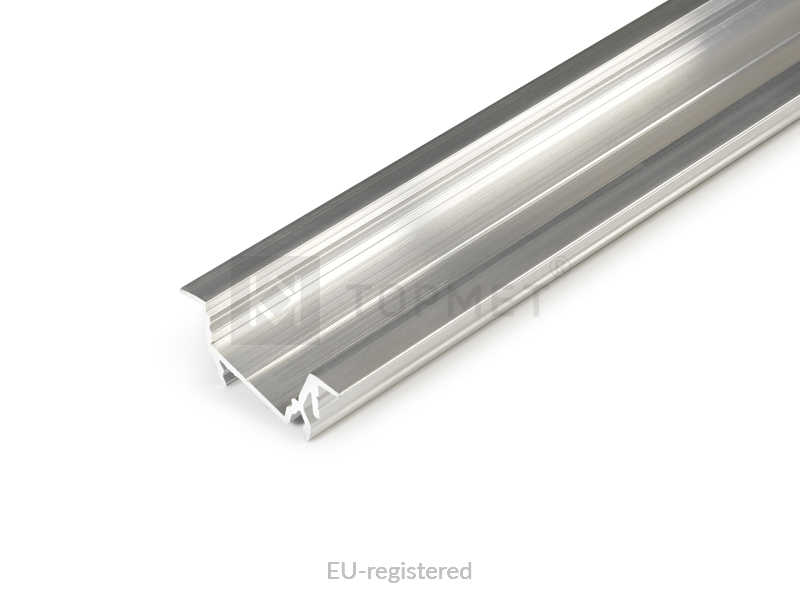

The DIAGONAL14 F/TY is a recessed angled aluminium LED profile for integrated directional lighting in furniture, ceilings and architectural surfaces. Its 30mm overall width provides a 14mm internal channel for LED tape and creates a clean diagonal light line.

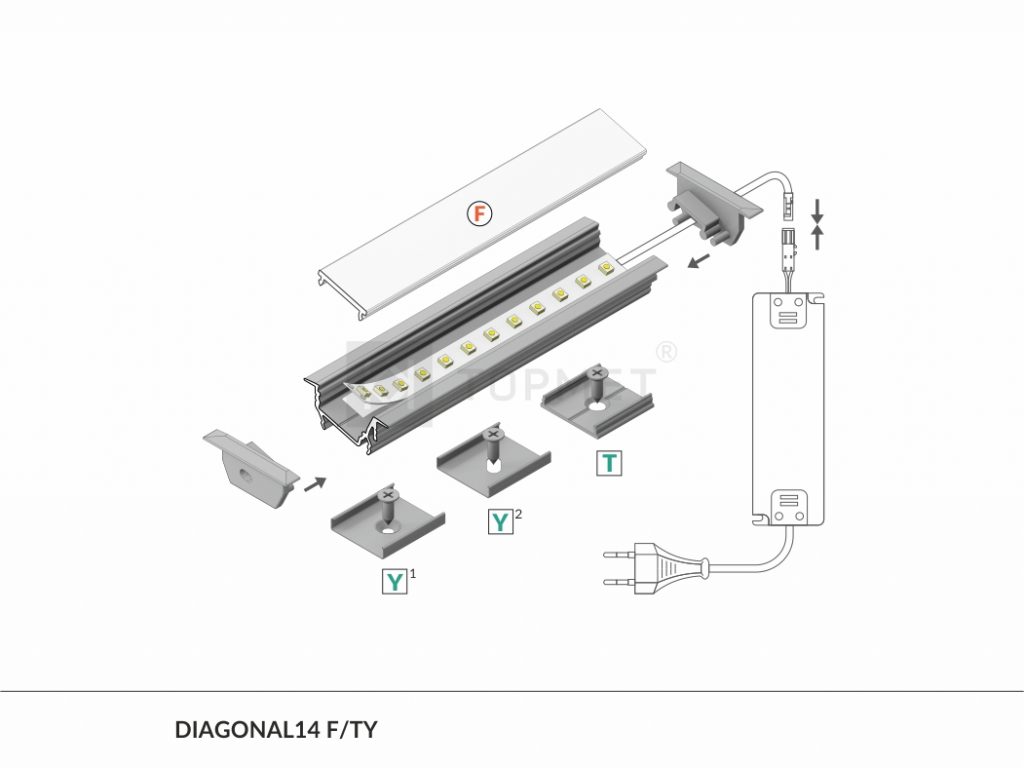

The profile uses an F click-fit diffuser and supports flexible Y, cone Y or T mounting options. It is compatible with 12V and 24V LED strip systems and is available in anodised, black and white finishes.

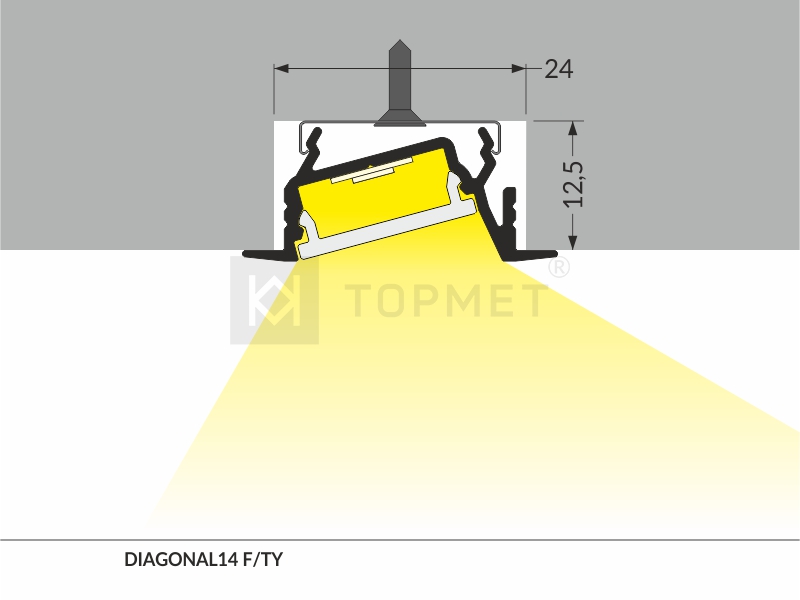

| Height | 12.5mm |
| Width | 24mm |
| Max. LED Tape Width | 14mm |
| Length | 2m |
| Material | Aluminium |
PDF Download
