HIDE10 C4

Product Height

16mm
Internal Width

10mm
Available Body Colours

Raw
Available Diffuser

Click
Available Diffuser Colours

Opal
Available Lengths

4m, 3m, 2m, 1m
Application

Tile In
Product Width

50mm
SKU: IN-HIDE1 Category: Tag:

Description

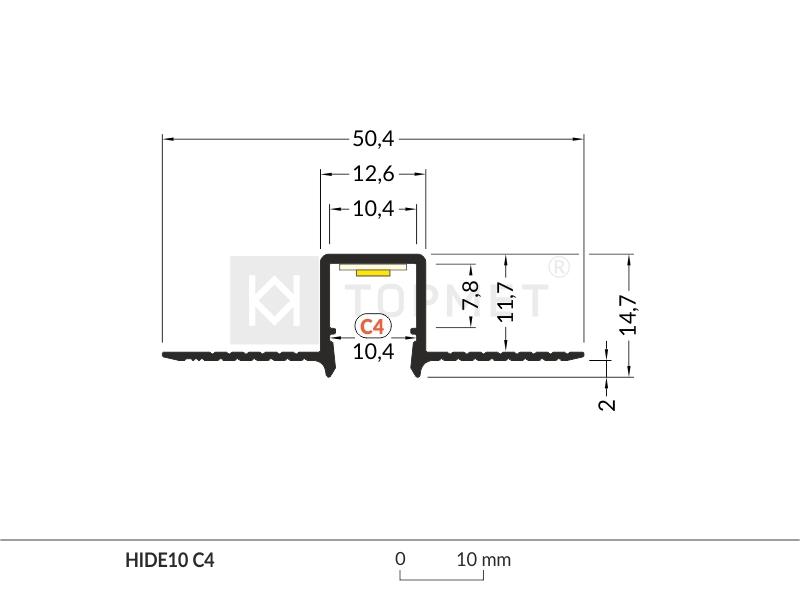

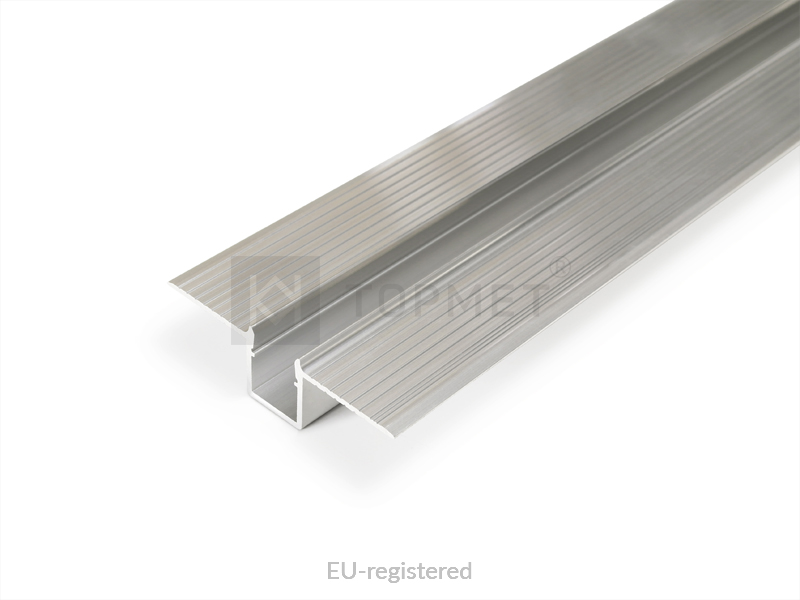

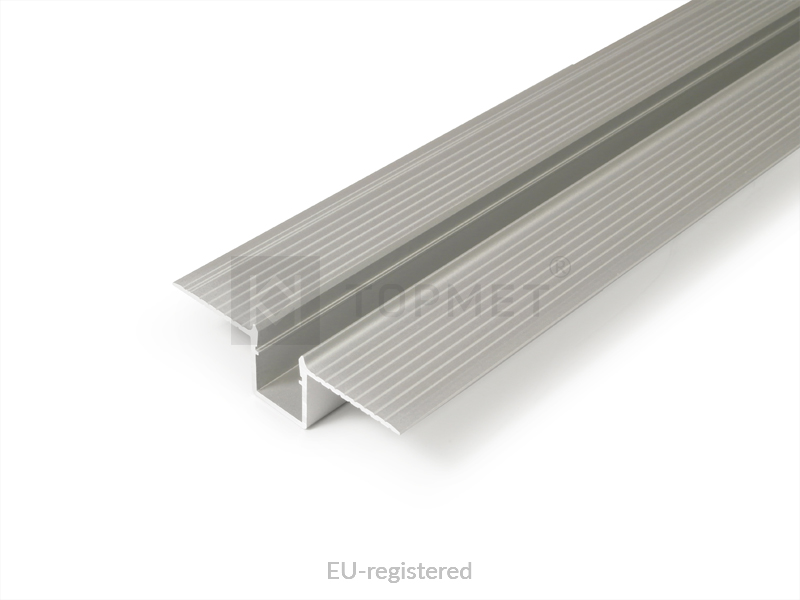

The HIDE10 C4 is a concealed plaster-in aluminium LED profile for creating a narrow, trimless line of light in walls and ceilings. Its recessed channel accepts LED tape up to 10mm wide and is finished with a C4 click-fit diffuser.

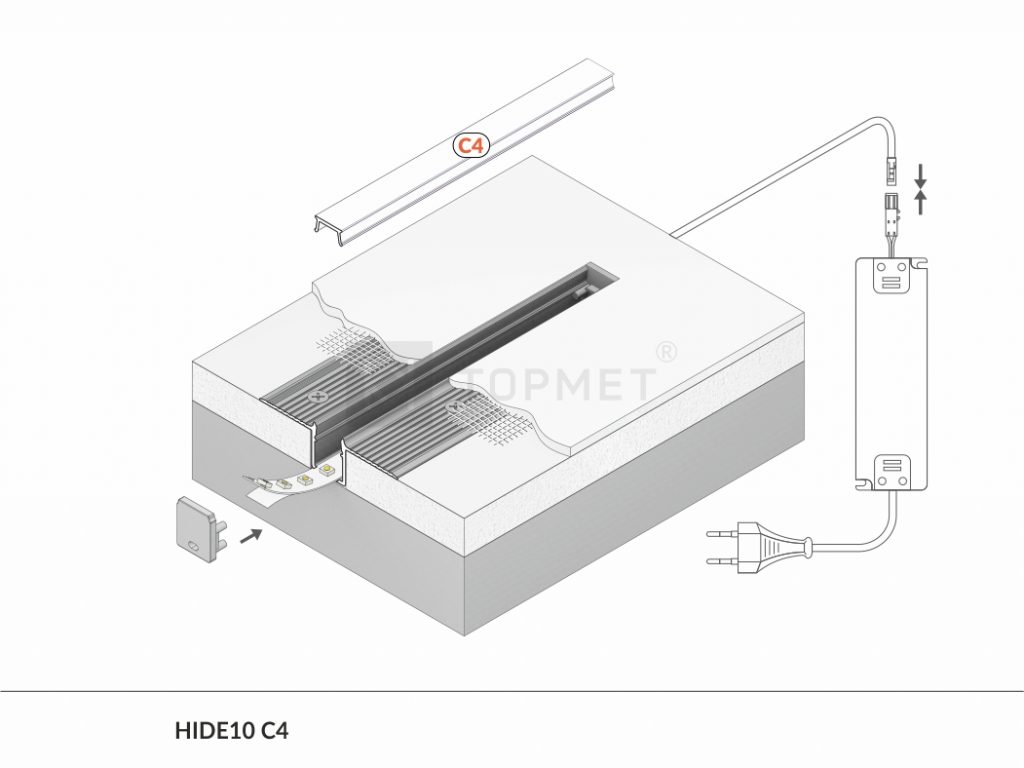

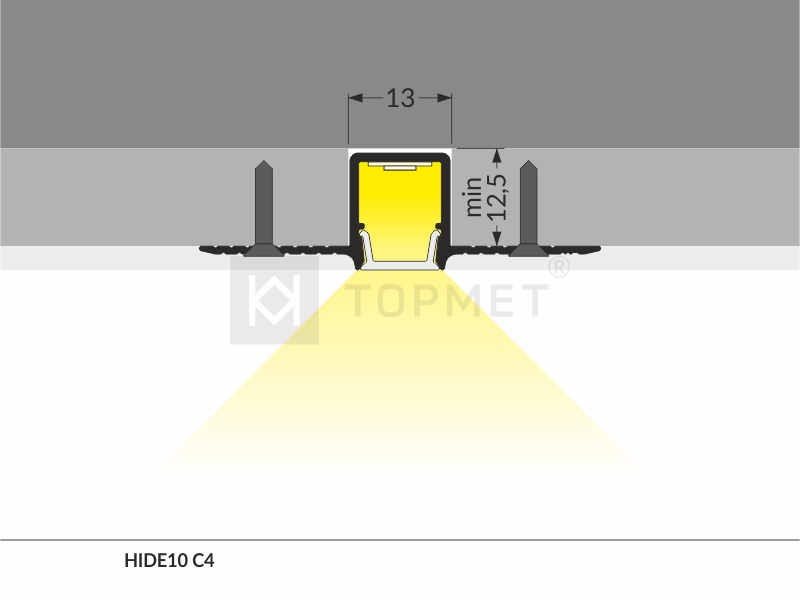

The profile is designed to be screw-fixed and skimmed into the surrounding surface, with fixing holes recommended at approximately 500mm intervals. It is compatible with 12V and 24V LED strip systems. Protect the diffuser and use plaster mesh during finishing for a clean result.

Tech Specs

Profile Type Recessed plaster-in aluminium LED profile
Maximum LED Tape Width 10mm
Diffuser C4 click-fit diffuser
Installation Screw-fixed and plastered into the finished surface
Recommended Fixing Interval Approximately 500mm
System Compatibility 12V and 24V LED strip systems
Material Aluminium

Product Data Sheet

PDF Download
