NF1616-VB-HE-24V

NF1616-VB-HE-24V

Warranty

3 years
Cut points

50mm
Run Length (max)

5 Metres
LED Width

16mm
Watts per Metre

16w/m
IP Rating

IP65
Available Colours

4000k, 3000k
Length

5 Metres
LED Type

White
Mounting Type

Fixings
Voltage

24V
Beam Angle

120-130
Bend Direction

Vertical
Product Height

16mm
SKU: IN-NF161-03 Category: Tag:

Description

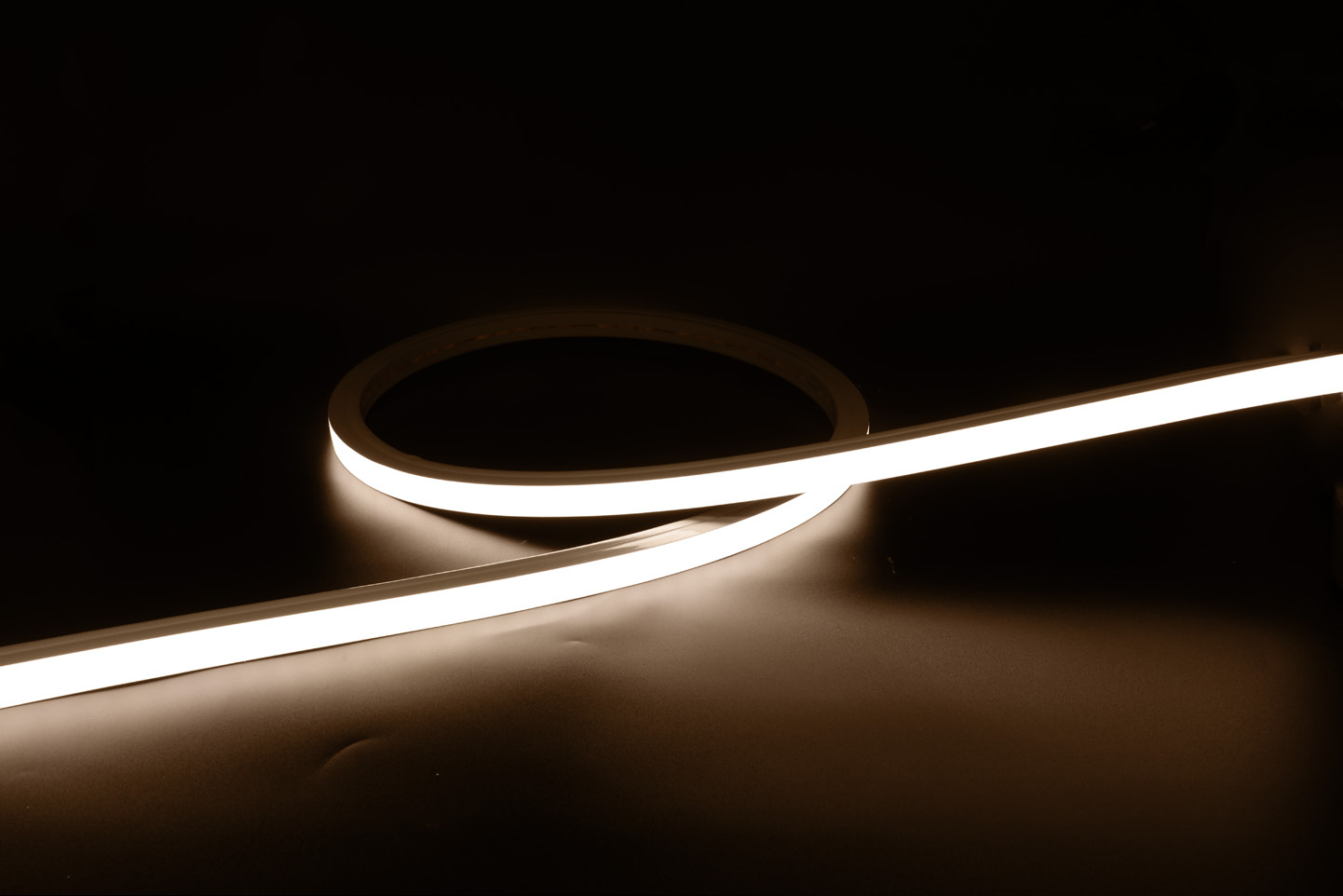

The NF1616-VB-HE-24V is a high-efficiency, high-output vertical-bend LED Neon Flex for bright, continuous architectural lighting. Compared with the standard-efficiency NF1616-VB product, it is designed to produce more usable light for the power consumed, making it a strong choice where greater brightness and improved energy efficiency are required.

Its increased light output can help achieve the required illumination with less product or at a lower operating load, depending on the installation design. This can reduce energy consumption, LED driver requirements and long-term running costs while retaining the smooth, dot-free appearance of the standard NF1616 profile.

The 16mm x 16mm profile operates from a 24V DC supply and consumes 16W per metre. It bends vertically for concave and convex curves, can be cut every 50mm and is available in 3000K and 4000K. The NF1616-VB-HE-24V is rated IP65, can be supplied in lengths of up to 5 metres and is covered by a three-year warranty. Correctly sealed connections and terminations are required to maintain the stated IP rating.

Tech Specs

Product NF1616-VB-HE-24V
Input Voltage 24V DC
Power 16W/m
Profile 16mm wide x 16mm high
IP Rating IP65
Colour Temperatures 3000K and 4000K
Cutting Increment 50mm
Bend Direction Vertical bend
Beam Angle 120-130°
Maximum Run Length 5m
Warranty 3 years

Product Data Sheet

PDF Download
