FRAME14 BC/Q
FRAME14 BC/Q - Image 2
FRAME14 BC/Q - Image 3
FRAME14 BC/Q - Image 4
FRAME14 BC/Q - Image 5
FRAME14 BC/Q - Image 6
FRAME14 BC/Q - Image 7

FRAME14 BC/Q

Product Height

34mm
Internal Width

14mm
Available Body Colours

Anodised, Raw, White
Available Diffuser

Click, Slide
Available Diffuser Colours

Black, Frosted, Opal, Transparent
Available Lengths

3m, 2m, 1m
Application

Plaster In
Product Width

26mm
SKU: IN-FRAME Category: Tag:

Description

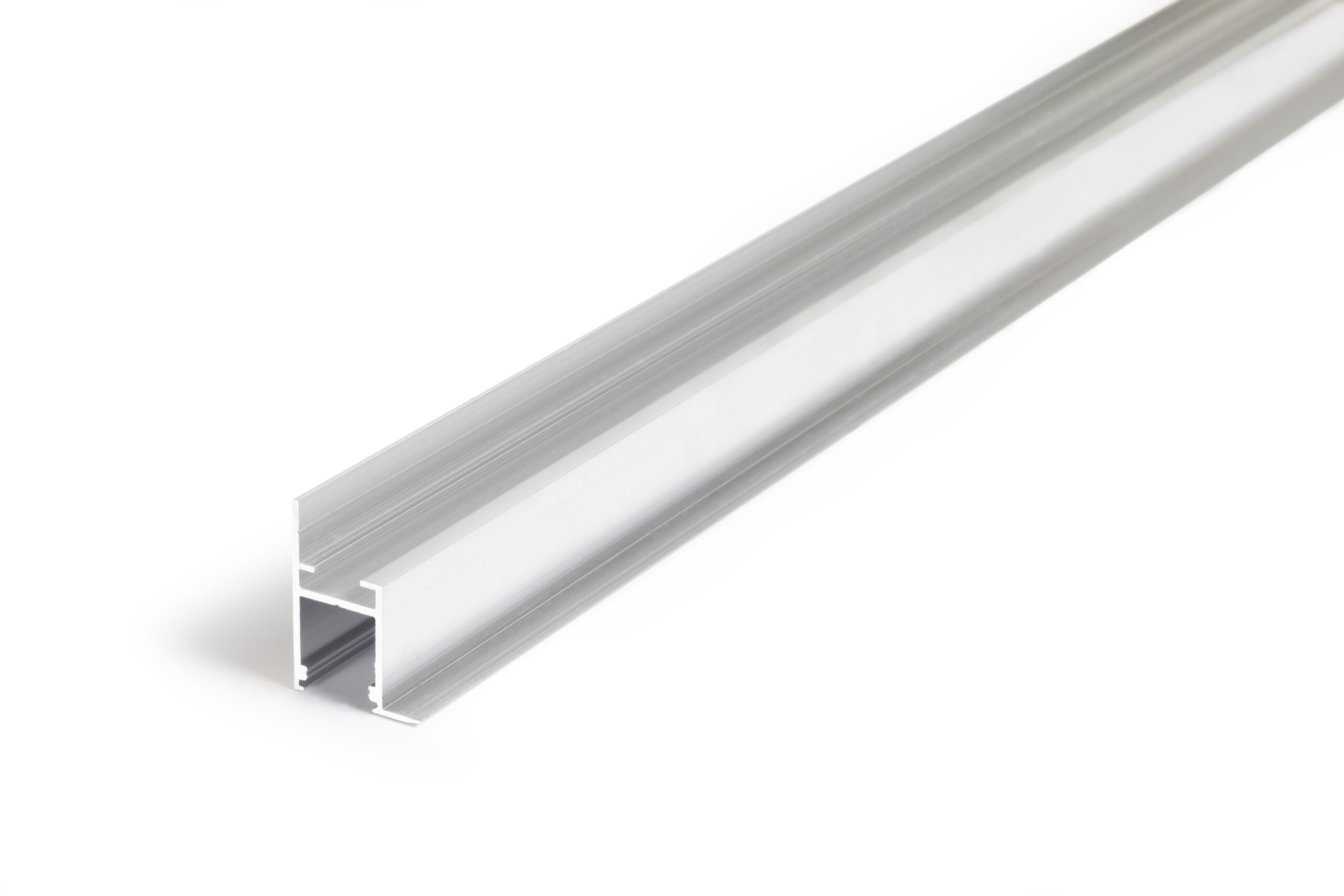

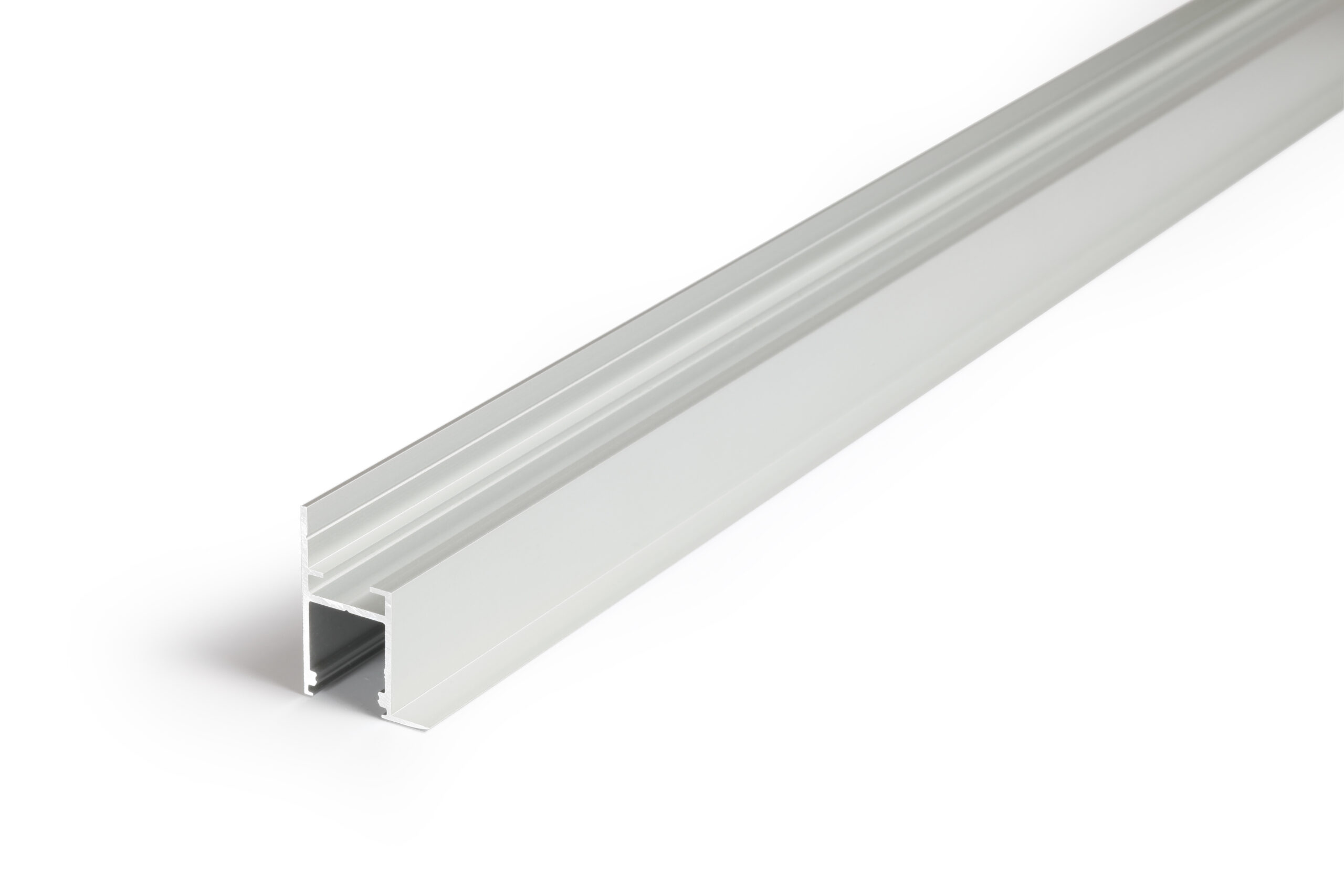

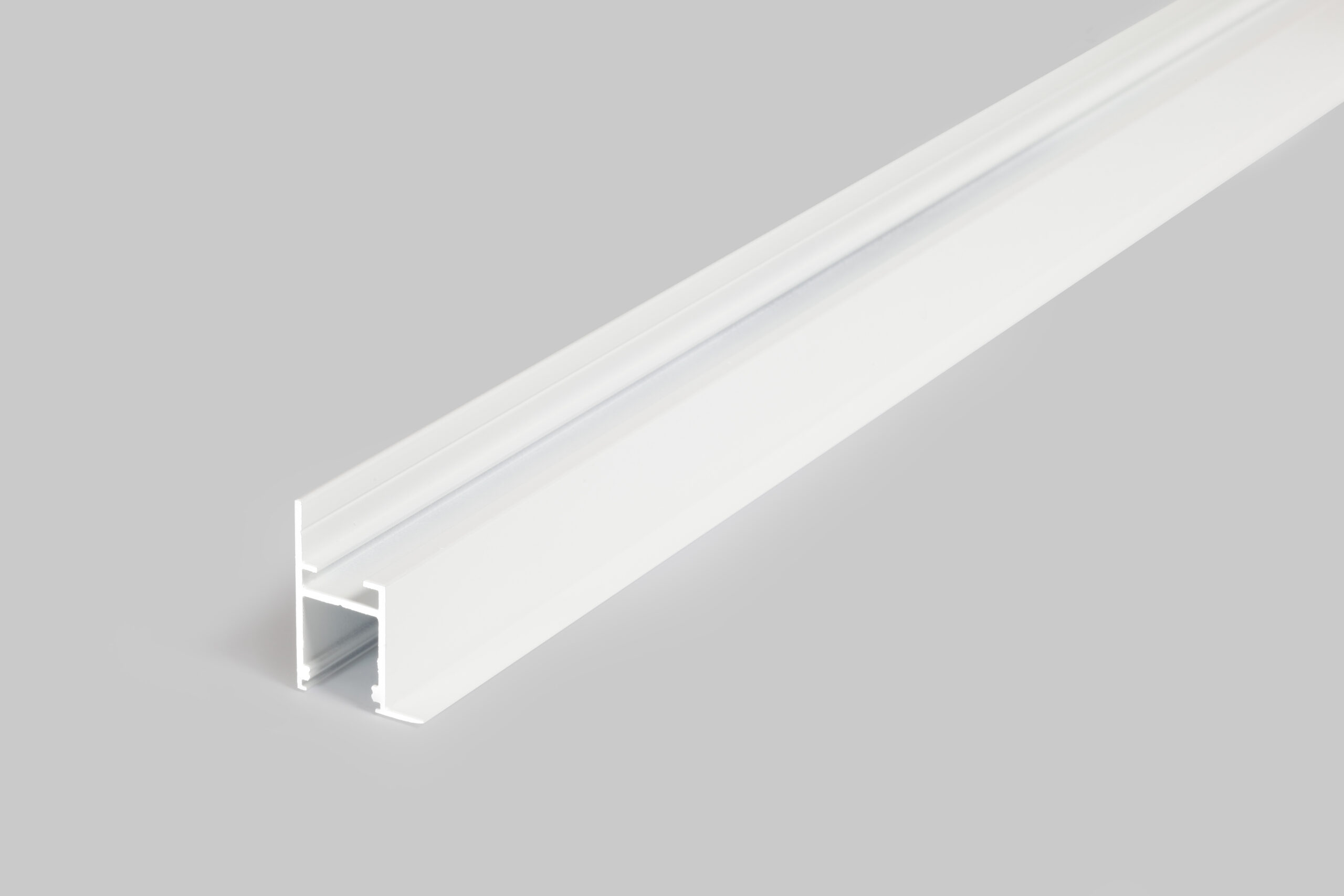

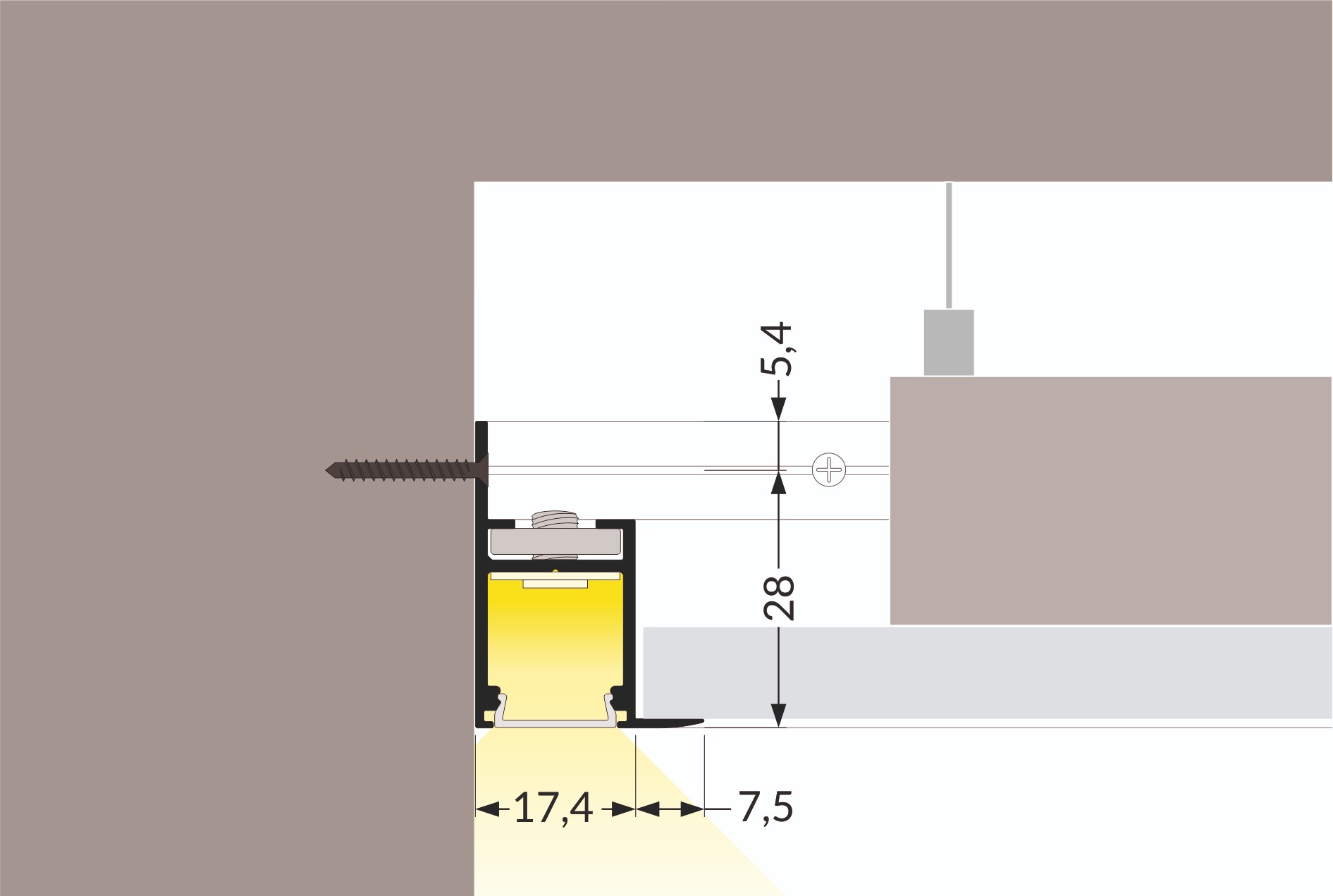

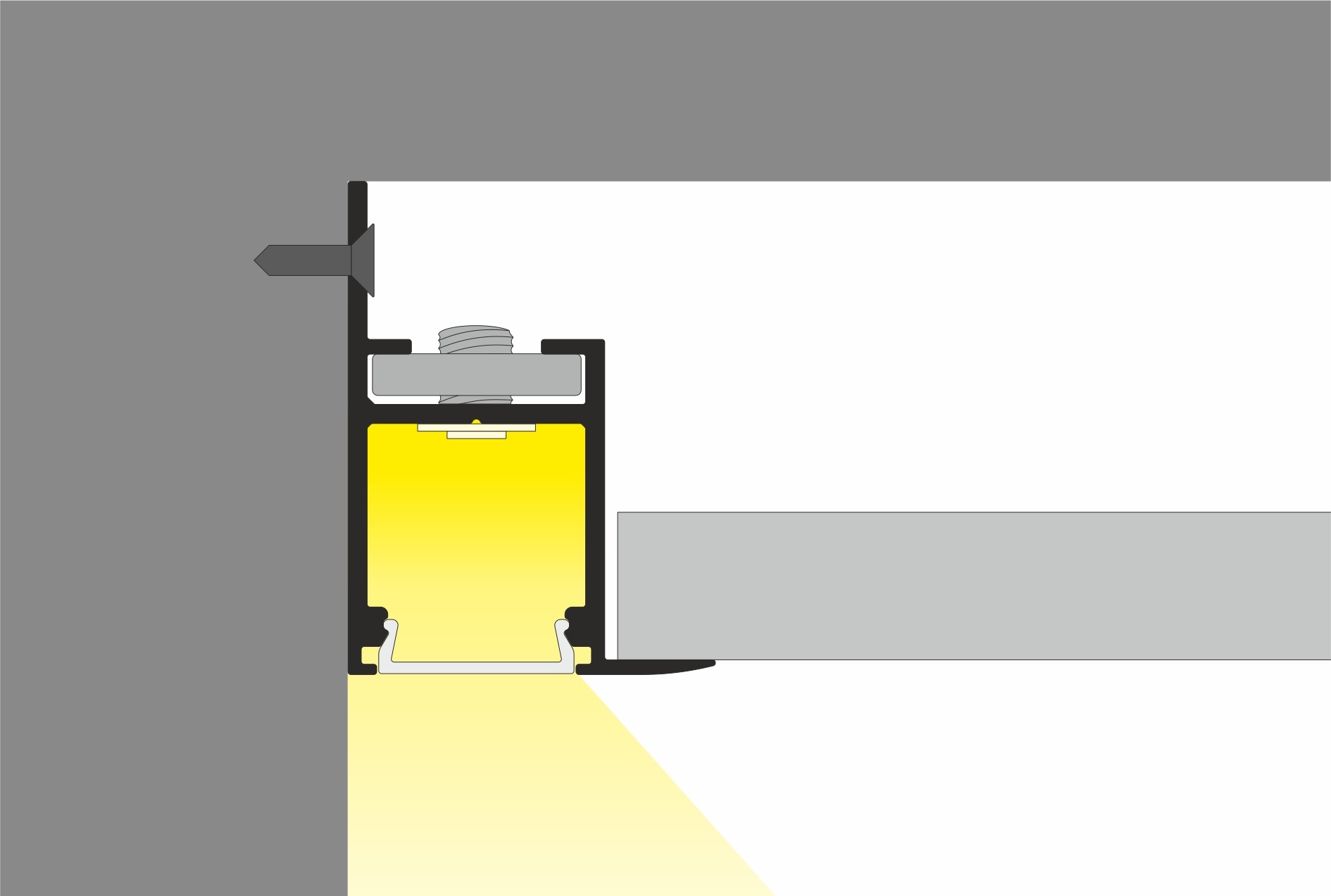

The FRAME14 BC/Q is a purpose-designed plaster-in aluminium LED profile for installation beside plasterboard or suspended ceiling systems. Positioned at the edge of the ceiling construction, it creates a clean, integrated line of light for contemporary architectural interiors.

The profile measures 69.1mm wide x 25.1mm high and accepts LED strip up to 14mm wide. It is compatible with either a B slide-in or C3 click-fit diffuser and can be used with correctly specified 12V or 24V LED strip and a suitable driver. Secure the profile to a stable supporting structure before fitting the LED strip and diffuser; allow 2mm per end when end caps are used.

Tech Specs

Height 33.4mm
Width 17.4mm
Max. Tape Width 14mm
Length  2m
Material Aluminium



Product Data Sheet

PDF Download
