| Product Height | 10mm |
|---|---|
| Internal Width | 14mm |
| Available Body Colours | Anodised, Black, Raw, White |
| Available Diffuser | Click, Slide |
| Available Diffuser Colours | Black, Frosted, Opal, Transparent |
| Available Lengths | 2m |
| Application | Surface Mounted |
| Product Width | 18mm |

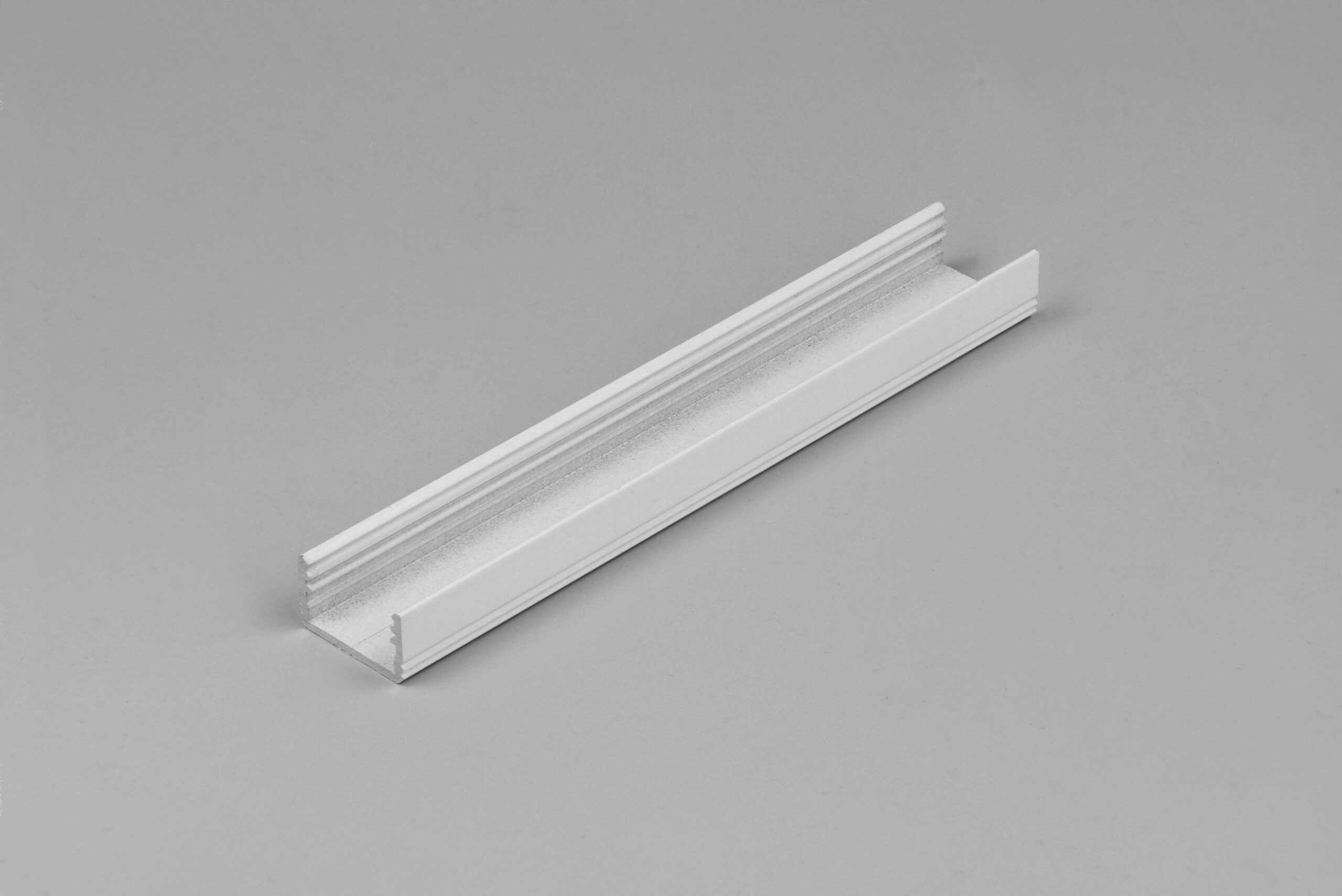

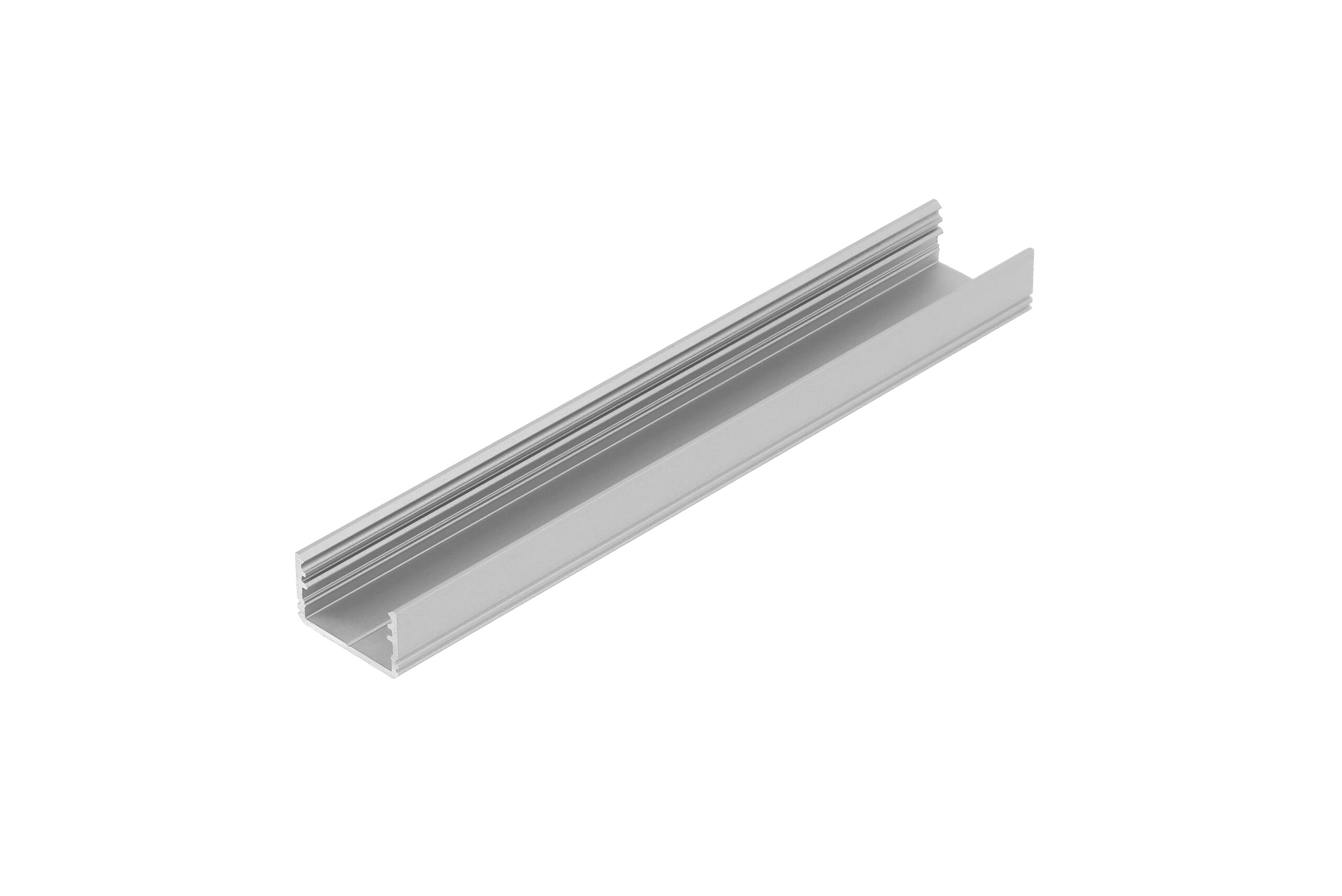

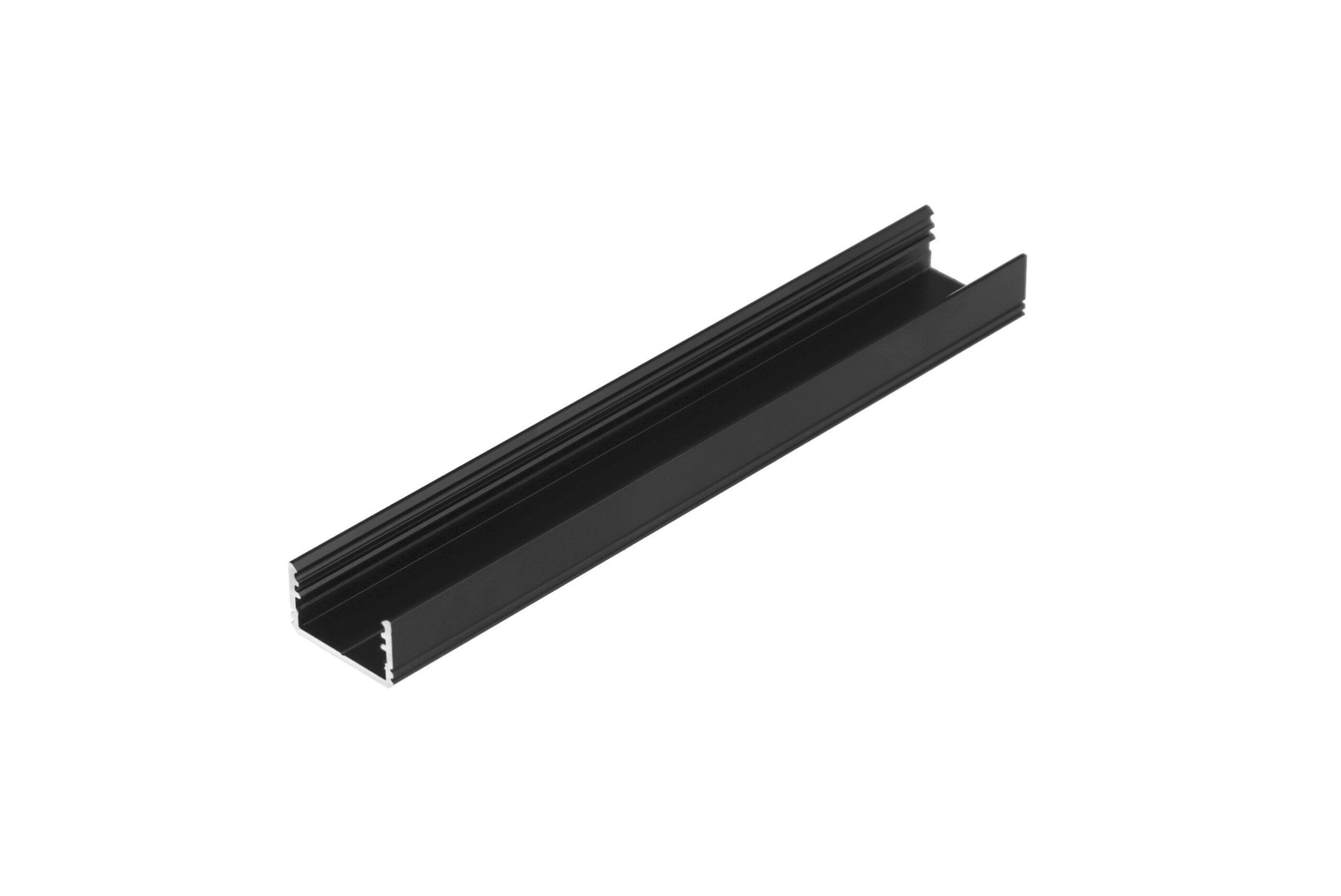

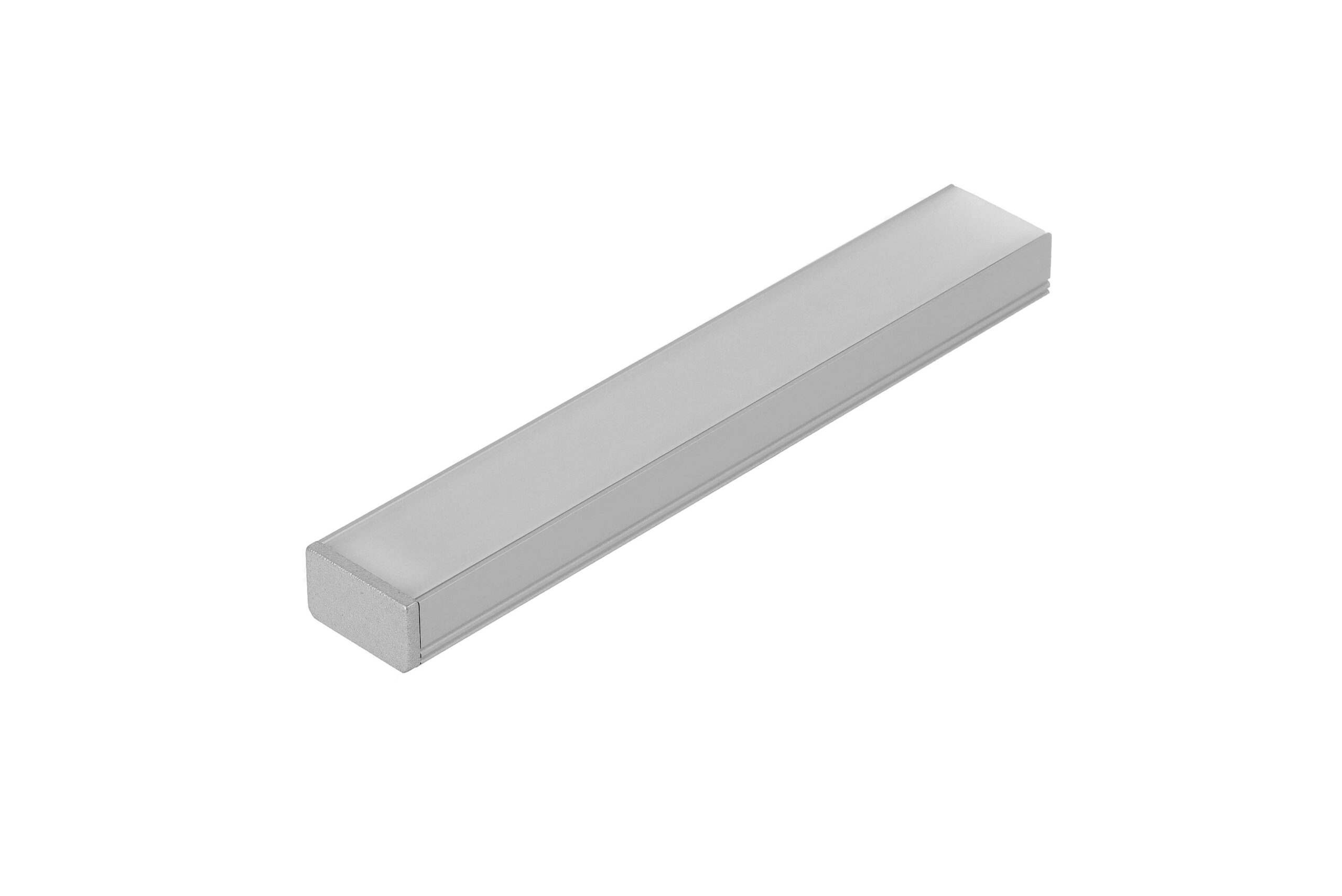

The UNI14 C3/B is a dual-purpose surface and furniture aluminium LED profile for clean, continuous linear illumination. Measuring 17.6mm wide x 10mm high, it accepts LED tape up to 14mm wide and suits cabinetry, shelving, displays and architectural details.

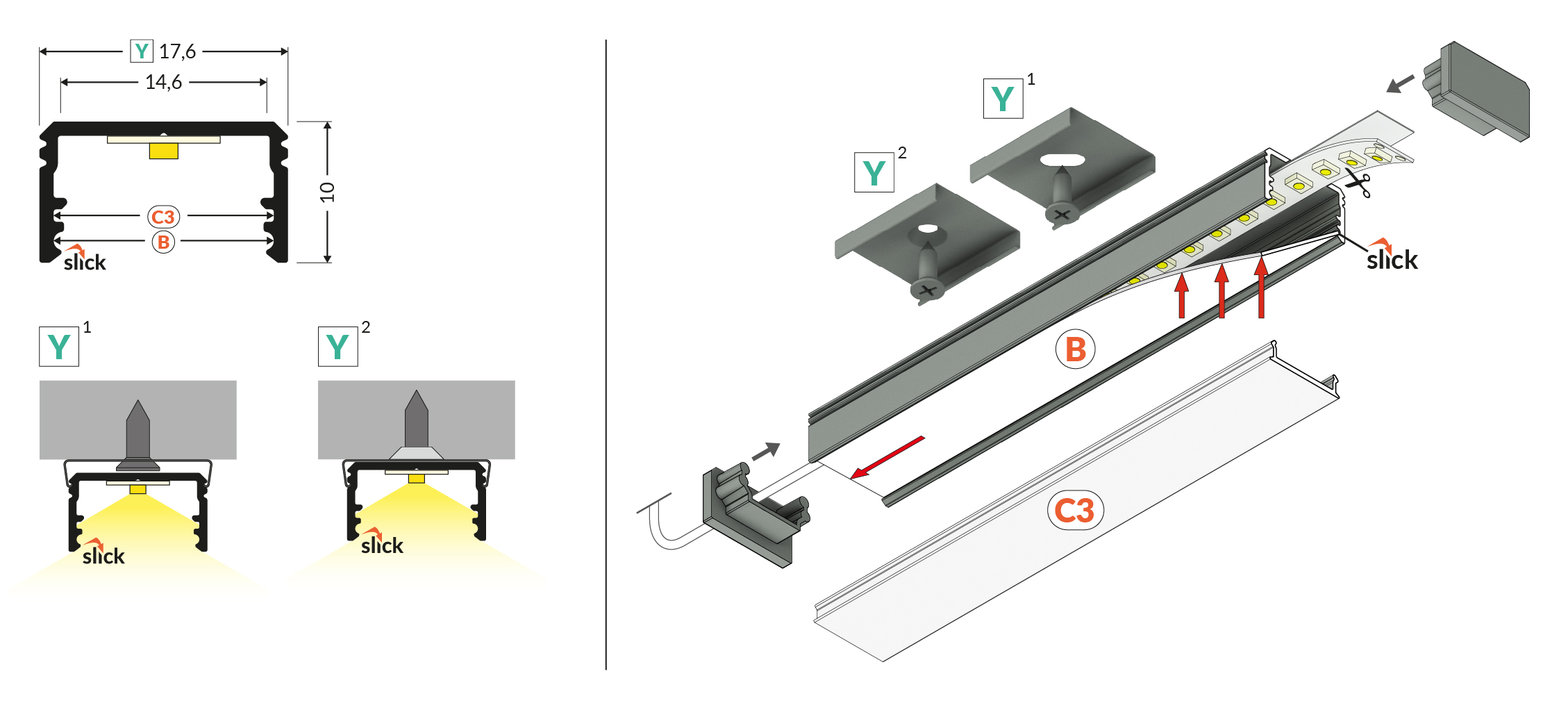

The profile is compatible with B slide-in and C3 click-fit diffusers and mounts using Y or cone Y plates. It supports 12V and 24V LED strip systems and is available in anodised, black, raw aluminium and white finishes.
| Profile Type | Surface-mounted aluminium LED profile |
|---|---|
| Overall Dimensions | 17.6mm wide x 10mm high |
| Maximum LED Tape Width | 14mm |
| Diffuser Options | B slide-in or C3 click-fit |
| Mounting | Y or cone Y mounting plate |
| System Compatibility | 12V and 24V LED strip systems |
| End-Cap Allowance | 2mm per end |
| Standard Length | 2m |
| Material | Aluminium |
PDF Download
