IP5W-24V
IP5W-24V - Image 2

IP5W-24V

Warranty

3 years
CRI

>85
Cut points

100mm
Run Length (max)

10 Metres
LED Width

10mm
Watts per Metre

5w/m
IP Rating

IP65
Available Colours

6000k, 4000k, 3000k
Length

10 Metres
LED Type

White
Mounting Type

Adhesiveback
Voltage

24V
Beam Angle

120-130
Bend Direction

Vertical
SKU: IN-IP5W2 Category: Tag:

Description

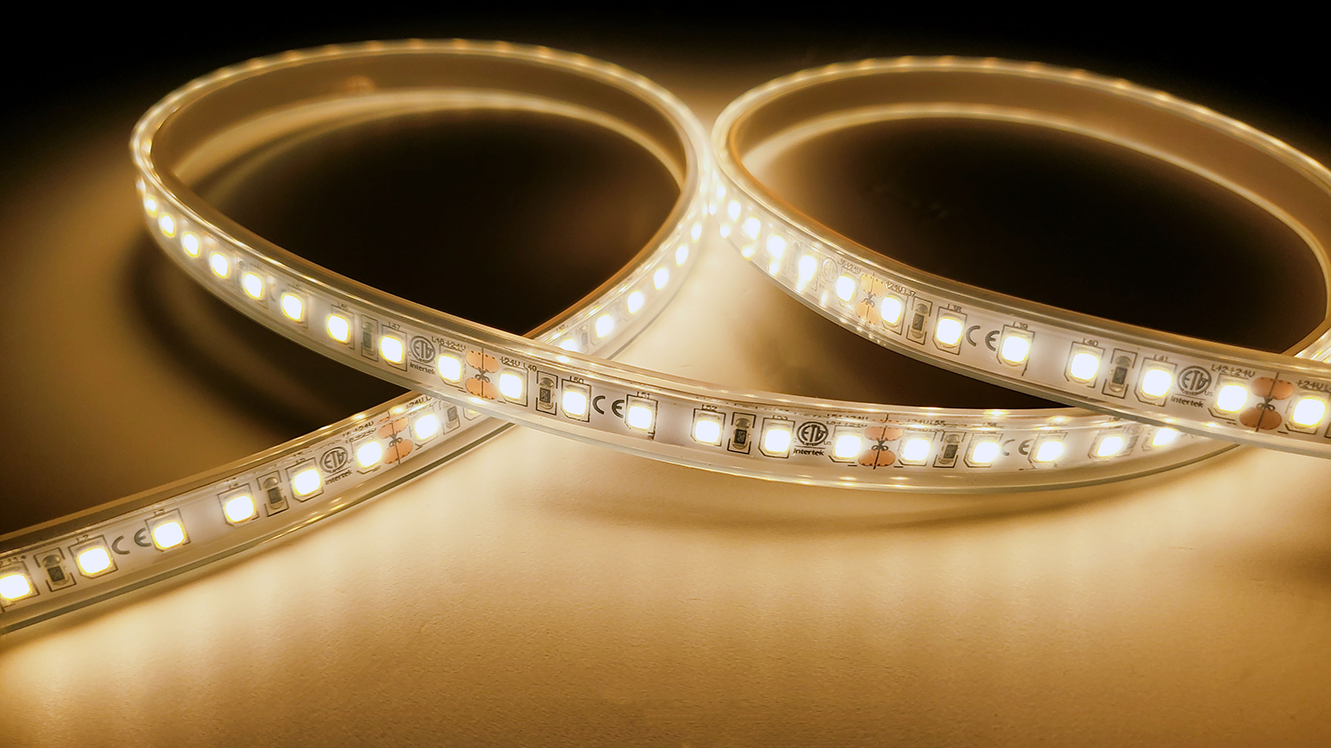

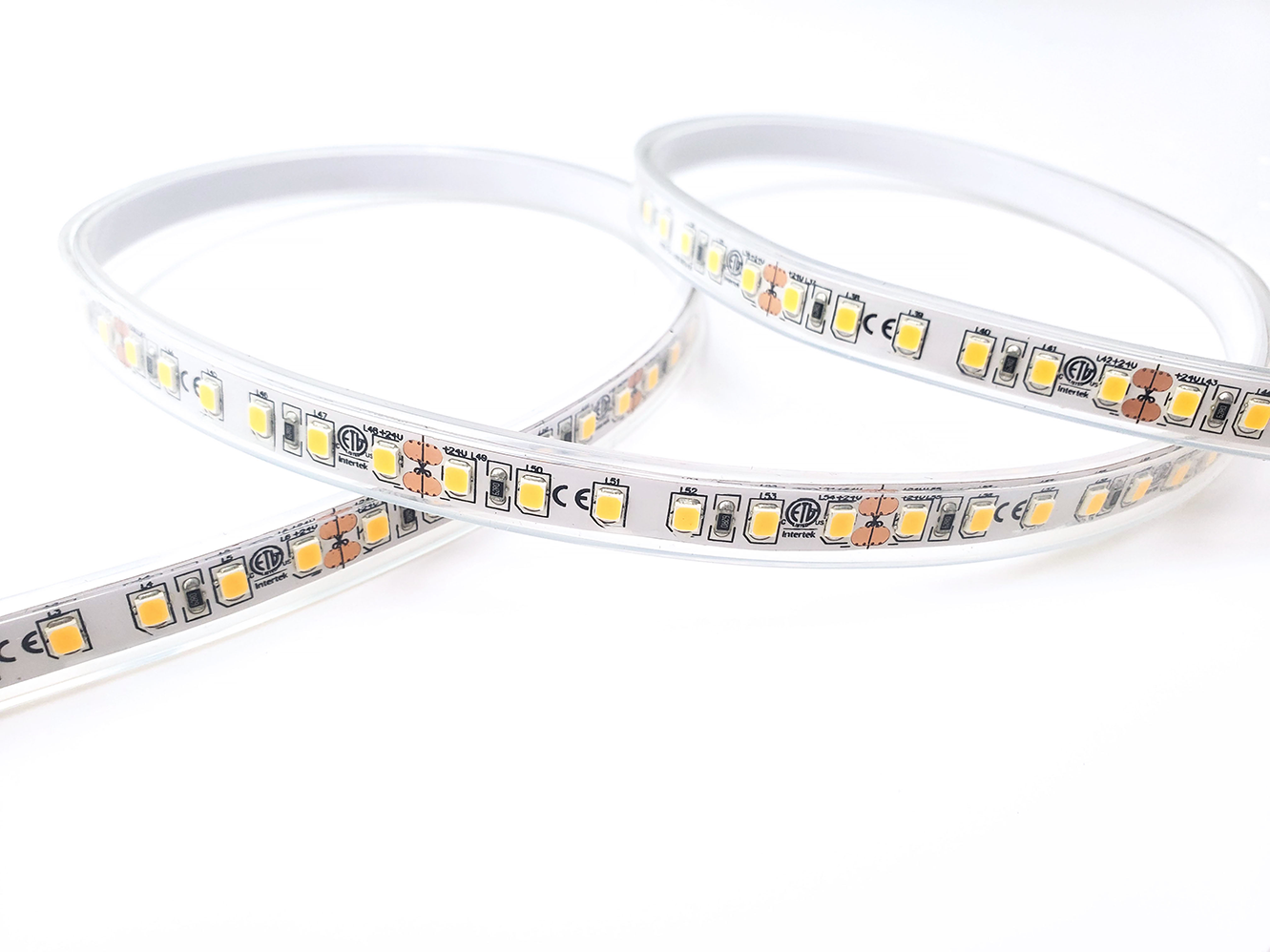

The IP5W-24V is a low-power, encapsulated LED strip for indoor and appropriate outdoor lighting installations. Operating at 4.8W per metre from a 24V DC constant-voltage supply, it delivers more than 95lm/W with a CRI above 85.

An IP65 sleeve encapsulates the front and back of the tape for increased environmental protection. The 10mm-wide strip uses 60 high-quality 2835 LEDs per metre, can be cut every 100mm and provides a 120° beam angle. Output ranges from 370lm/m at 2700K to 450lm/m at 6000K.

The IP5W-24V can be supplied in lengths of up to 10 metres and is available in 2700K, 3000K, 4000K and 6000K. It is dimmable with a compatible LED driver and is covered by a five-year warranty. Connections and terminations must be correctly sealed to maintain the stated IP rating.

Tech Specs

LED Type 2835
LED Quantity 60 LEDs/m
Product Width 10mm
Product Height 3.5mm
Power (W) 4.8w/m
Voltage 12V DC Constant Voltage
Current (A) 0.2A/m
CRI 80+ (90, 98 available to order)
LED Lifespan 50,000 hours
Certification CE, ETL, UL, LM79 & LM80
