CBRGBW-24V
CBRGBW-24V - Image 2

CBRGBW-24V

Warranty

5 years
CRI

>90
Cut points

33mm
Run Length (max)

5 Metres
LED Width

12mm
Watts per Metre

20w/m
IP Rating

IP20
Available Colours

4000k, 3000k
Length

Custom
LED Type

RGBW
Voltage

24V
Beam Angle

140-160
Bend Direction

Vertical
SKU: IN-CBRGB Category: Tags: , ,

Description

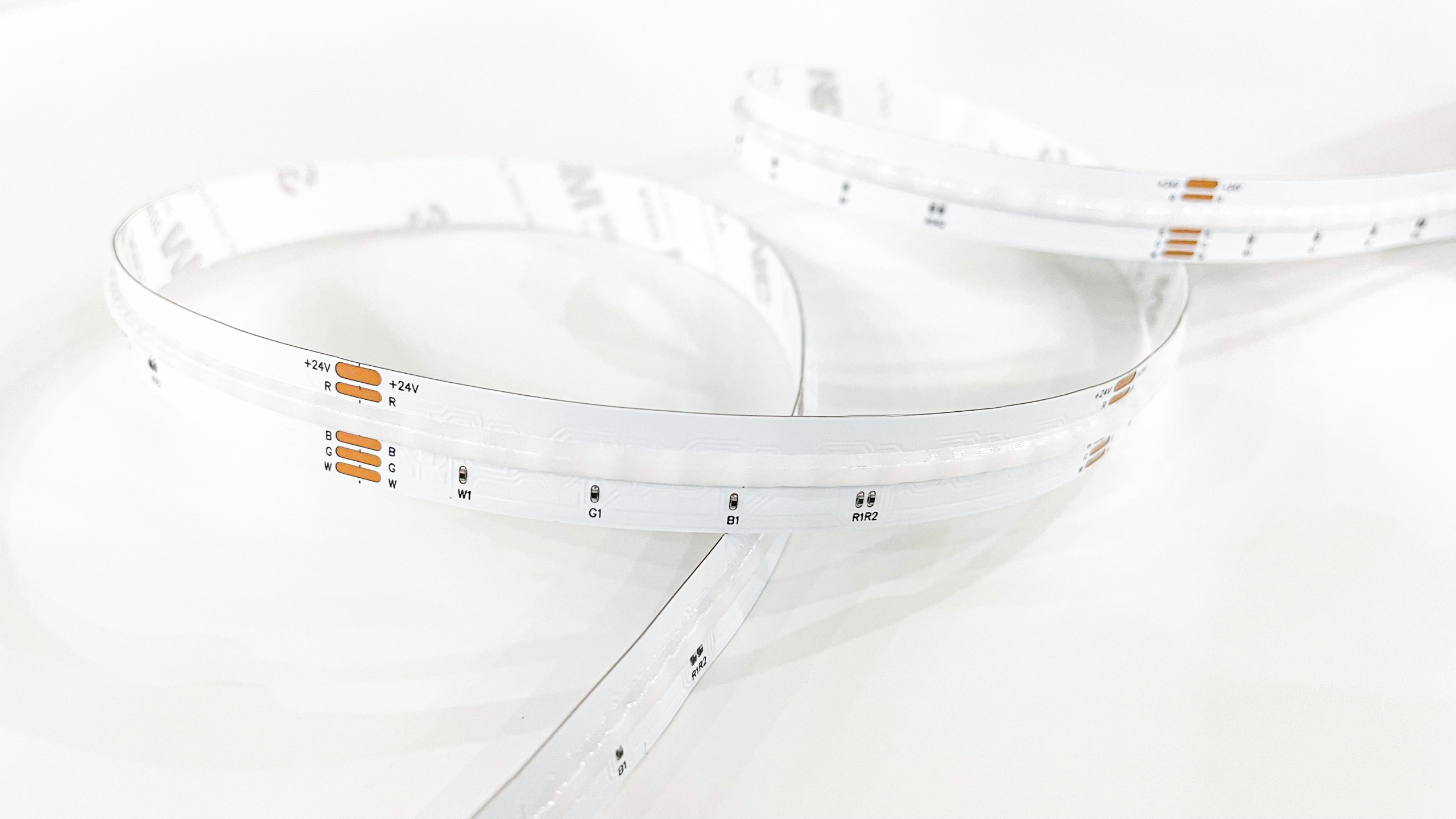

The CBRGBW-24V is a dotless COB RGBW LED strip that combines vivid colour-changing light with a dedicated high-quality white channel. Its 672 LEDs per metre create a smooth, continuous line of light without the spotting commonly associated with standard RGBW tape.

Operating at 20W per metre from a 24V DC supply, the strip can create strong primary colours, soft pastel tones and functional white light. White-channel options include 2700K, 3000K, 4000K and 6000K, all with a CRI above 90. The strip can be controlled using a compatible handheld remote, wall controller or app-based system.

The 14mm-wide tape is cuttable every 83.3mm, provides a 140° beam angle and can be supplied in lengths of up to 5 metres. It is rated IP20 for dry indoor use and carries a three-year warranty.

Tech Specs

LED Type COB RGBW
LED Quantity 672 LEDs/m
Product Width 12mm
Product Height 2.1mm
Power (W) 20w/m
Voltage 24V DC Constant Voltage
Current (A) 0.84A/m
CRI N/A
LED Lifespan 50,000 hours
Certification UKCA, ETL, UL, LM79 & LM80



Product Data Sheet

PDF Download
