LS10W-24V
LS10W-24V - Image 2

LS10W-24V

Warranty

5 years
CRI

>85
Cut points

50mm
Run Length (max)

10 Metres
LED Width

8mm
Watts per Metre

10w/m
IP Rating

IP20
Available Colours

6000k, 4000k, 3000k, 2700k
Length

Custom
LED Type

White
Mounting Type

Adhesiveback
Voltage

24V
Beam Angle

110-120
Bend Direction

Vertical
SKU: IN-LS10W-01 Category: Tag:

Description

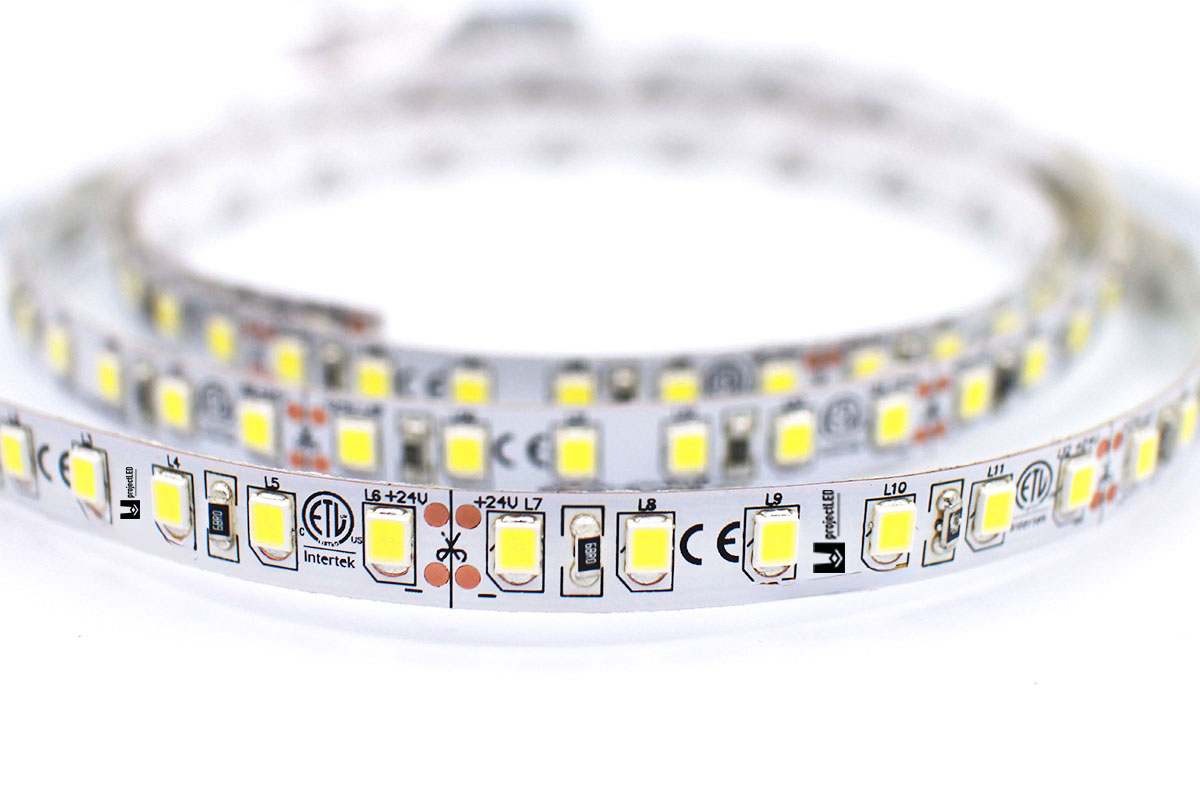

The LS10W-24V is a high-output, high-density LED strip that provides smooth, consistent illumination for indoor lighting applications. It operates at 9.6W per metre from a 24V DC constant-voltage supply and delivers more than 95lm/W with a CRI above 85.

The 8mm-wide tape contains 120 high-quality 2835 LEDs per metre and can be cut every 50mm. Depending on colour temperature, it produces between 980lm/m and 1025lm/m across a 120° beam angle.

The LS10W-24V is rated IP20 for dry indoor use and is available in 2700K, 3000K, 4000K and 6000K. It is dimmable with a compatible LED driver, has a rated life of 50,000 hours and is covered by a five-year warranty.

Tech Specs

LED Type 2835
LED Quantity 120 LEDs/m
Product Width 8mm
Product Height 1.2mm
Power (W) 9.6w/m
Voltage 24V DC Constant Voltage
Current (A) 0.4A/m
CRI 85+ (90, 98 available to order)
LED Lifespan 50,000 hours
Certification CE, ETL, UL, LM79 & LM80



Product Data Sheet

PDF Download
