CB11W-24V-IC
CB11W-24V-IC - Image 2

CB11W-24V-IC

Warranty

5 years
CRI

>90
Cut points

41.7mm
Run Length (max)

10 Metres
LED Width

10mm
Watts per Metre

11w/m
IP Rating

IP20
Available Colours

6000k, 4000k, 3000k, 2700k
Length

Custom
LED Type

White
Mounting Type

Adhesiveback
Voltage

24V
Beam Angle

120-130
Bend Direction

Vertical
SKU: IN-CB11W Category: Tags: ,

Description

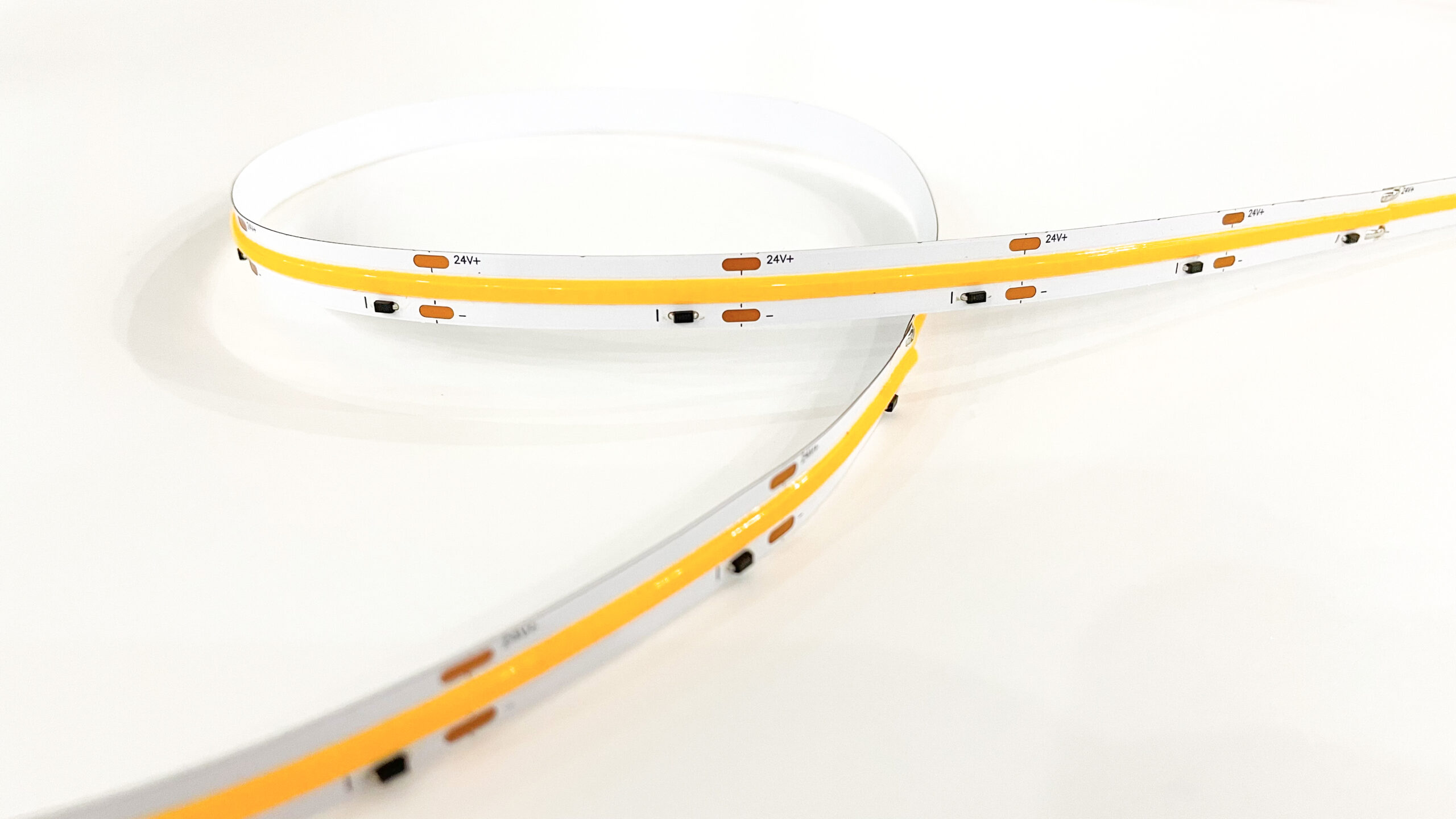

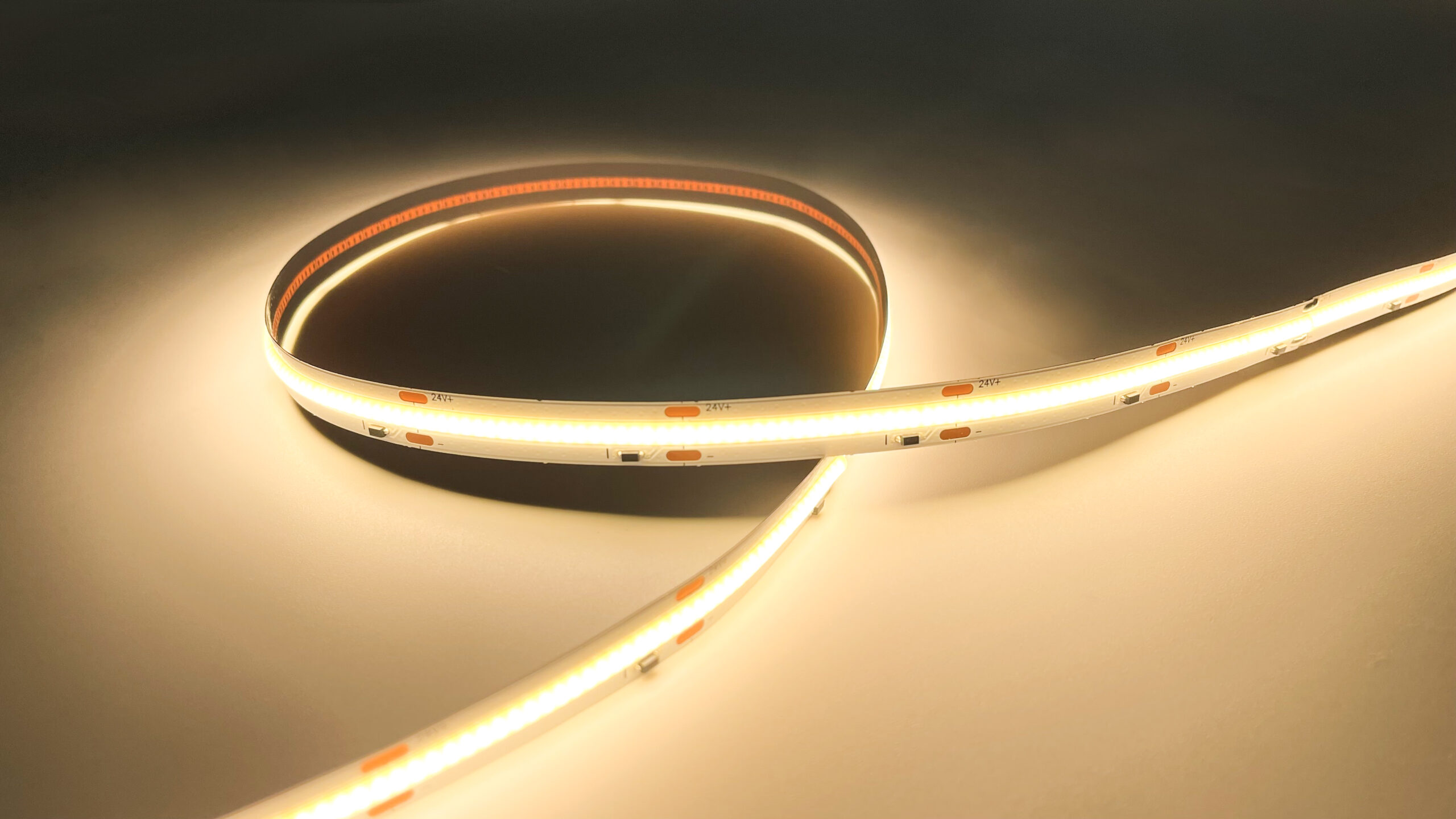

The CB11W-24V-IC is a high-output, long-run COB LED strip designed to provide uniform, dotless illumination across lengths of up to 10 metres from a single-end feed. Current-regulated PCB technology helps maintain consistent performance across the run.

Operating at 11W per metre from a 24V DC constant-voltage supply, the strip delivers up to 100lm/W with a CRI above 90. Its 10mm-wide PCB contains 840 LEDs per metre, can be cut every 41.67mm and provides a wide 180° beam angle.

The CB11W-24V-IC is rated IP20 for dry indoor use and is available in 3000K, 4000K and 6000K. It can be supplied on reels of up to 10 metres, is dimmable with a compatible LED driver and is covered by a five-year warranty.

Tech Specs

LED Type COB
Beam Angle 145 Degree
Product Width 10mm
Product Height 1.9mm
Power (W) 11w/m
Voltage 24V DC Constant Voltage
Current (A) 0.46A/m
CRI 90+
LED Lifespan 50,000 hours
Certification CE, ETL, UL, LM79 & LM80



Product Data Sheet

PDF Download
