SMOOTH12 BC/Q9
SMOOTH12 BC/Q9 - Image 2
SMOOTH12 BC/Q9 - Image 3
SMOOTH12 BC/Q9 - Image 4
SMOOTH12 BC/Q9 - Image 5

SMOOTH12 BC/Q9

Product Height

50mm+
Internal Width

12mm
Available Body Colours

Raw
Available Diffuser

Click, Slide
Available Diffuser Colours

Black, Frosted, Opal, Transparent
Available Lengths

4m, 3m, 2m, 1m
Application

Plaster In
Product Width

32mm
SKU: IN-SMOOT Category: Tag:

Description

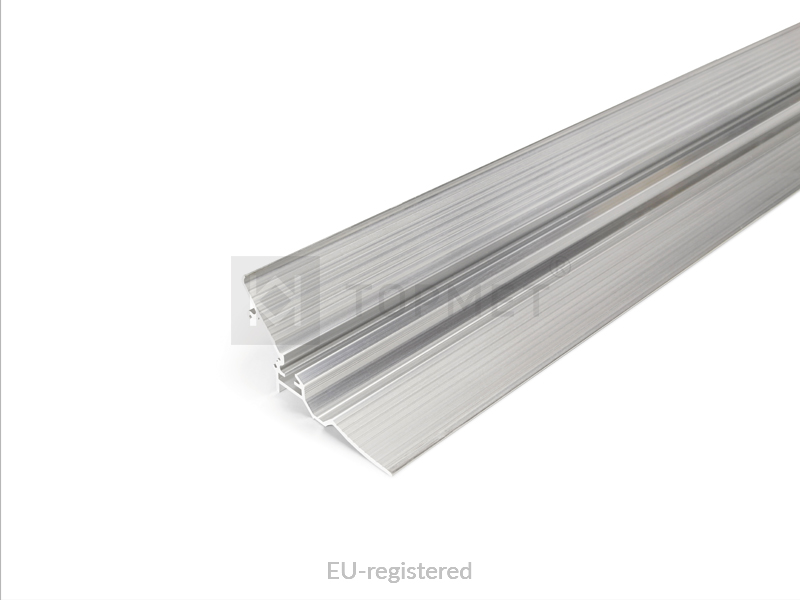

The SMOOTH12 BC/Q9 is a deep plaster-in aluminium LED profile designed to create a seamless, highly diffused architectural light line. Its 12mm internal channel accepts common LED tape formats, while the extended depth helps minimise visible spotting.

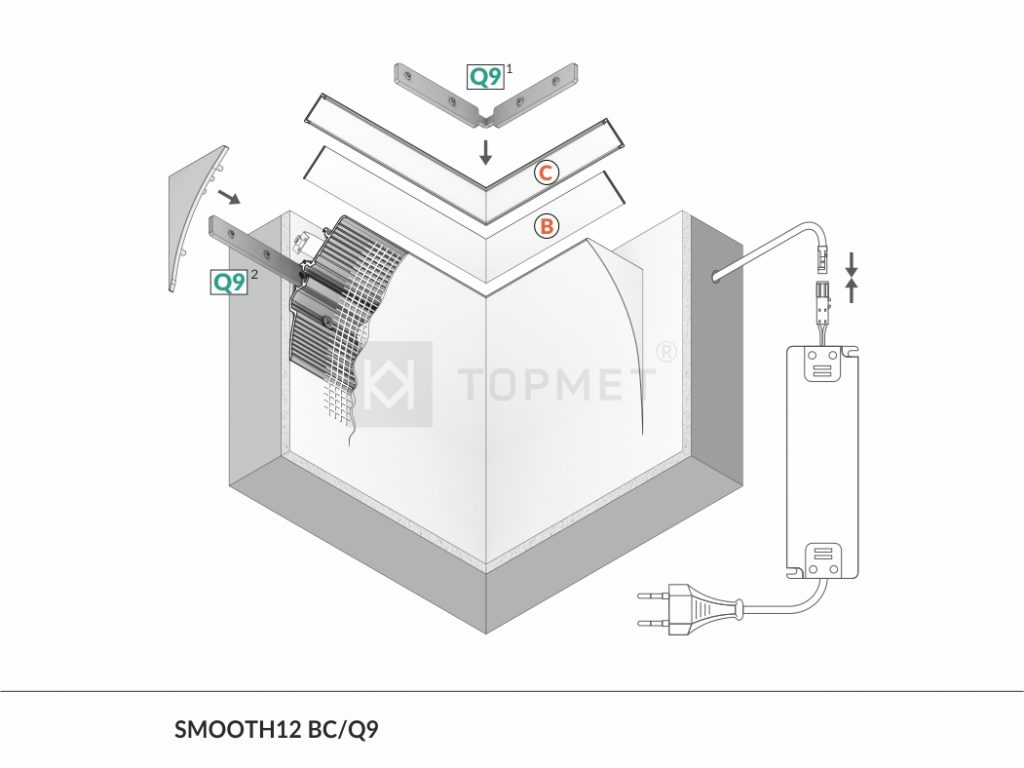

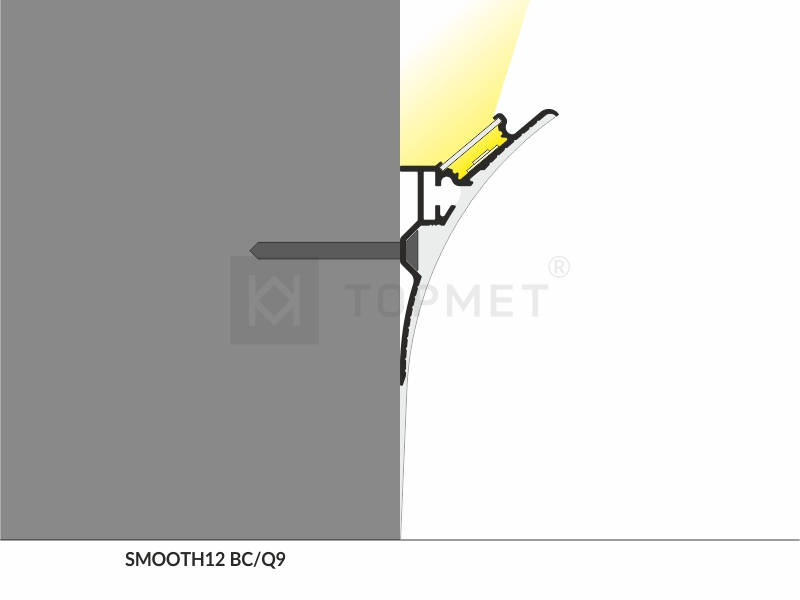

B slide-in and C click-fit diffuser options are available. The raw aluminium profile is installed into walls or ceilings and finished with plaster so only the illuminated aperture remains visible. It supports 12V and 24V LED strip systems.

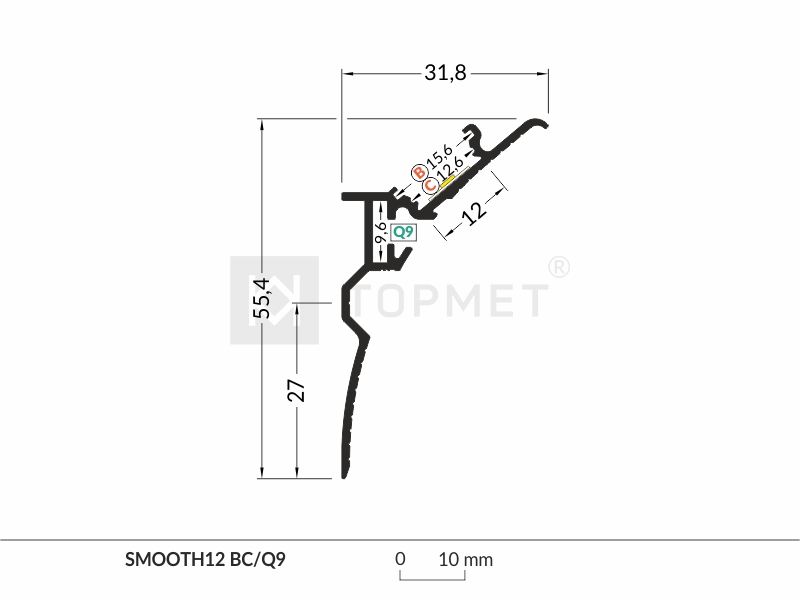

Tech Specs

Height 55.4mm
Width 31.8mm
Max. LED Tape Width 12mm
Length 2m
Material Aluminium

Product Data Sheet

PDF Download
