| Product Height | 20mm |
|---|---|
| Internal Width | 14mm |
| Available Body Colours | Anodised, Black |
| Available Diffuser | Click, Slide |
| Available Diffuser Colours | Black, Frosted, Opal, Transparent |
| Available Lengths | 4m, 3m, 2m, 1m |
| Application | Corner |
| Product Width | 24mm |

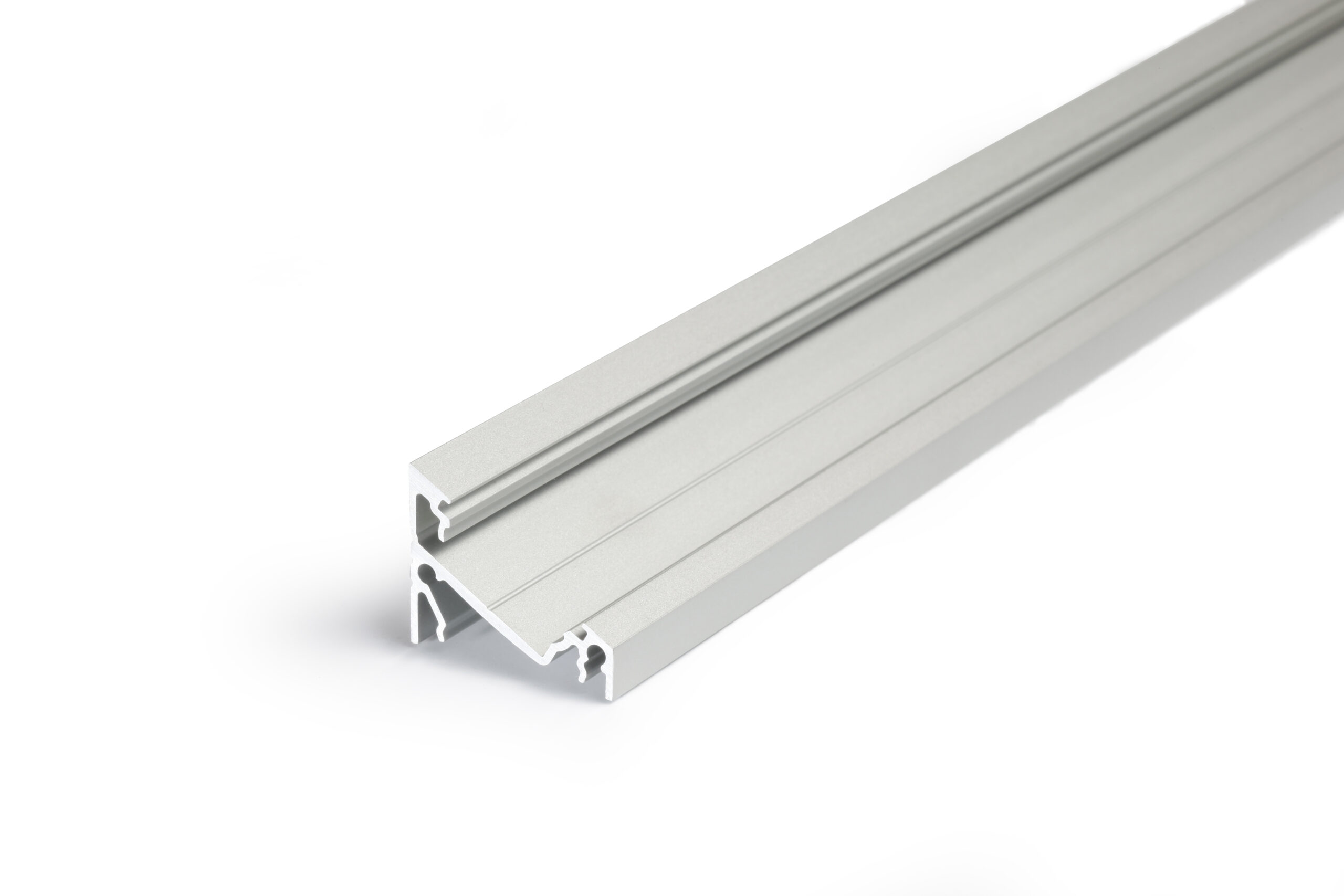

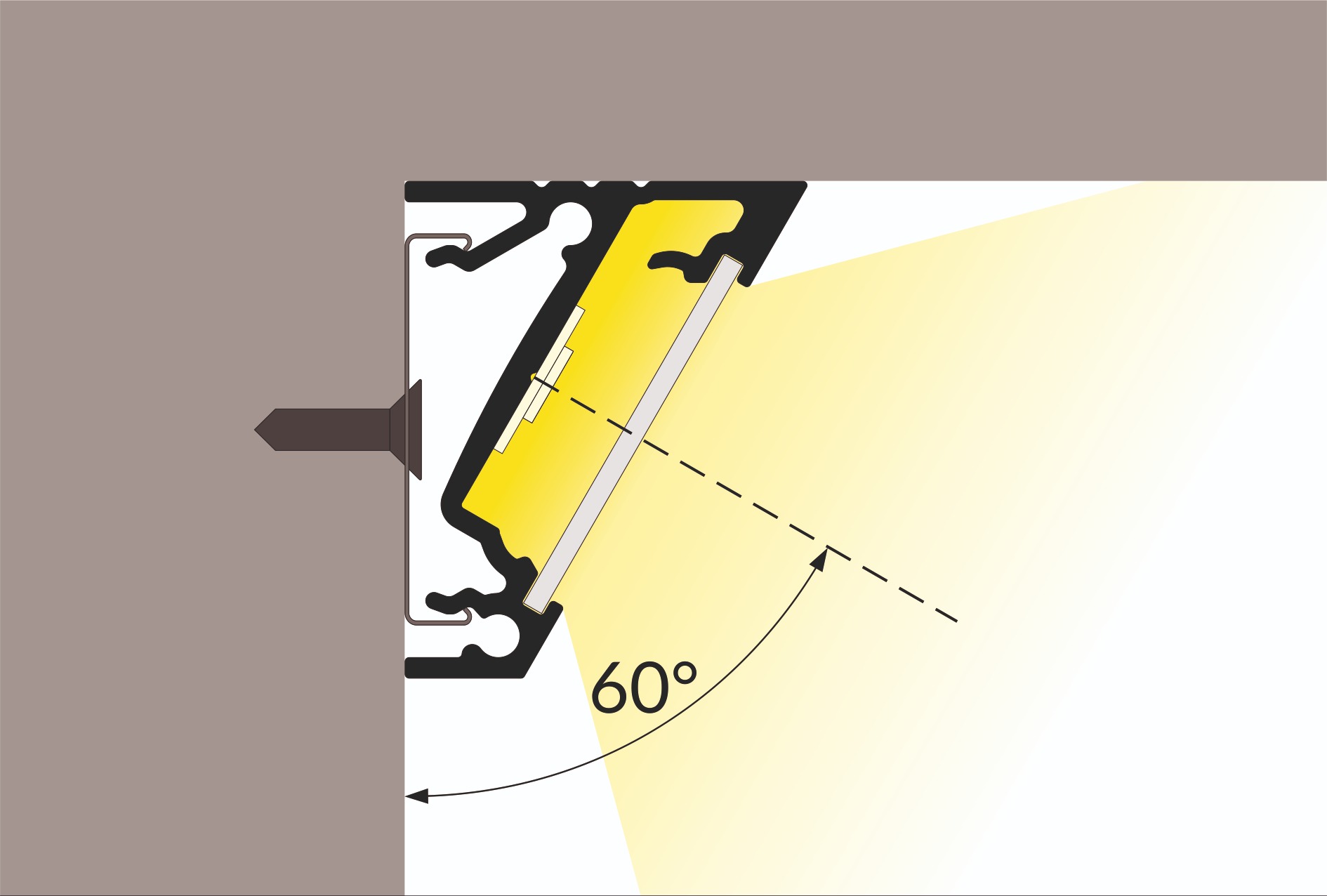

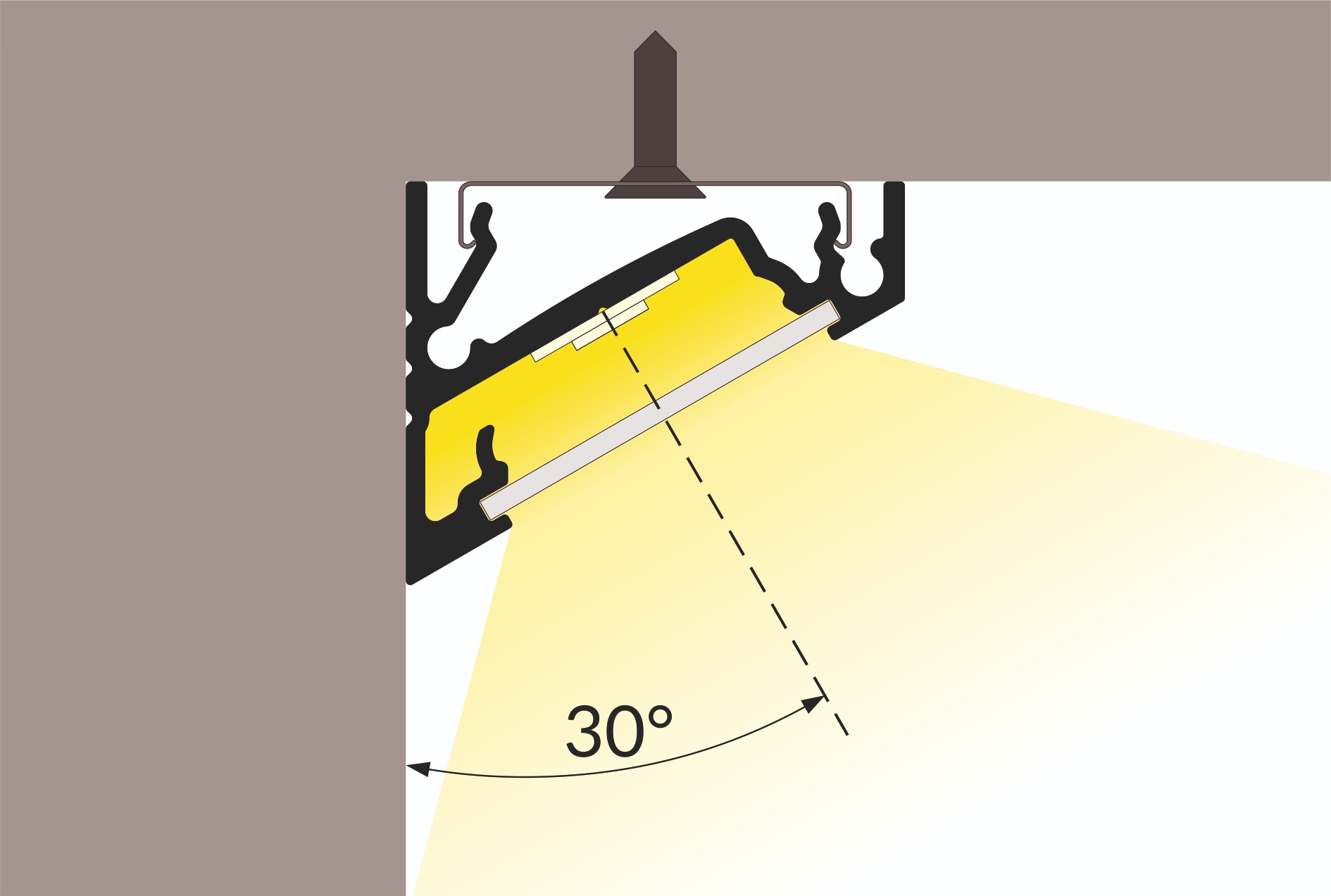

The CORNER14 EF/TY is a wide corner-mounted aluminium LED profile for brighter cabinet, display and architectural lighting. Its 24mm wide x 19.4mm high body accepts LED tape up to 14mm wide and creates a clean angled line of light.

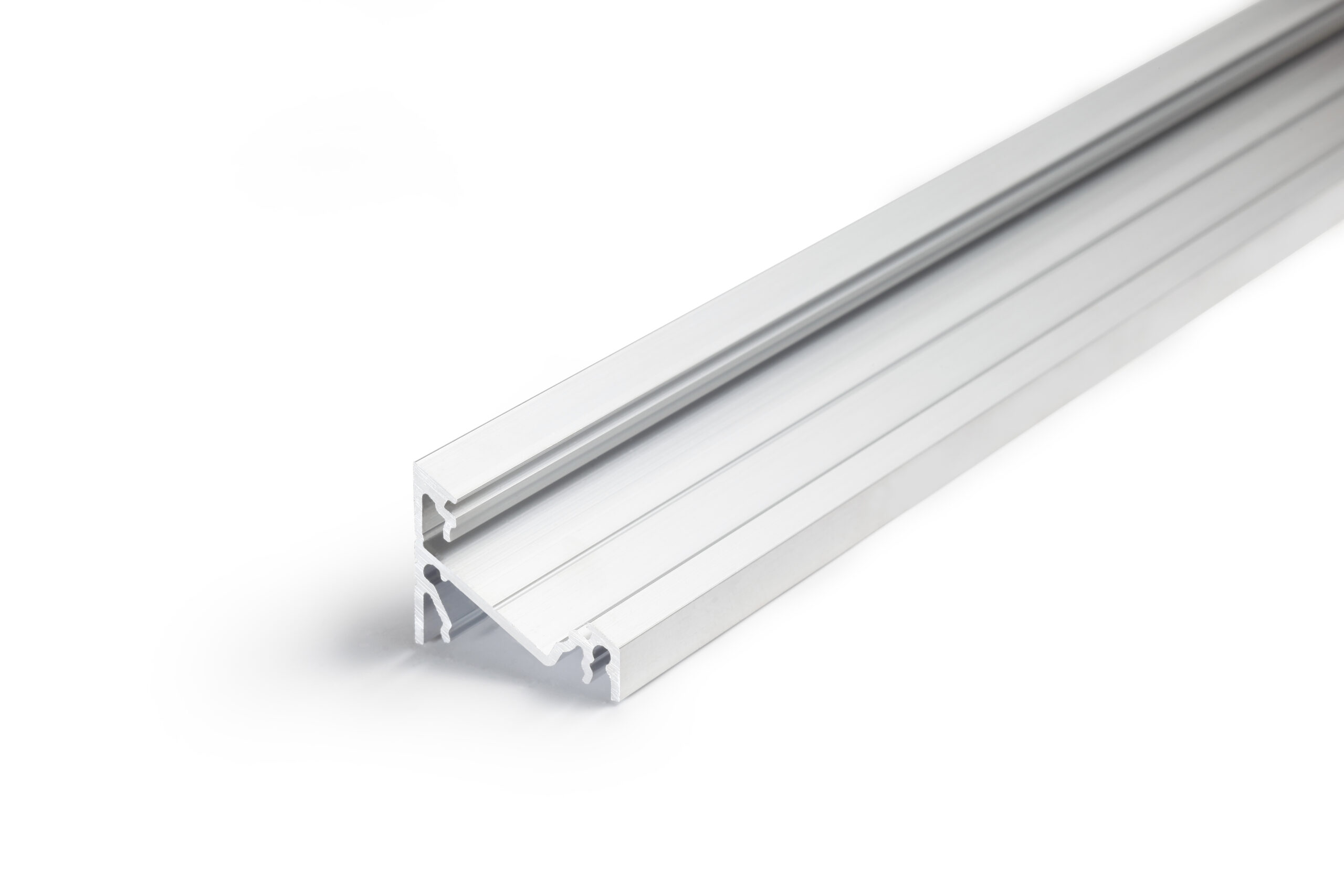

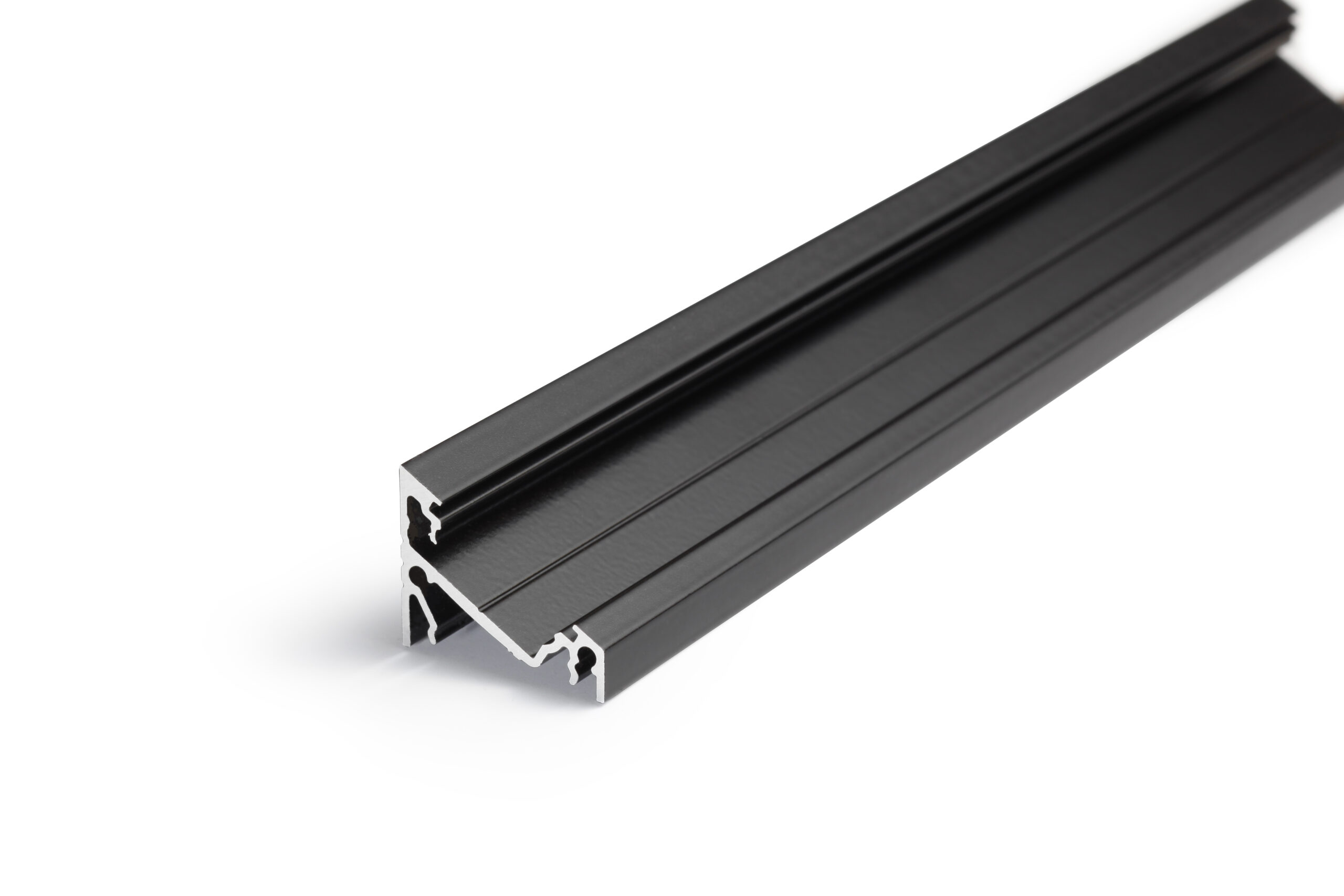

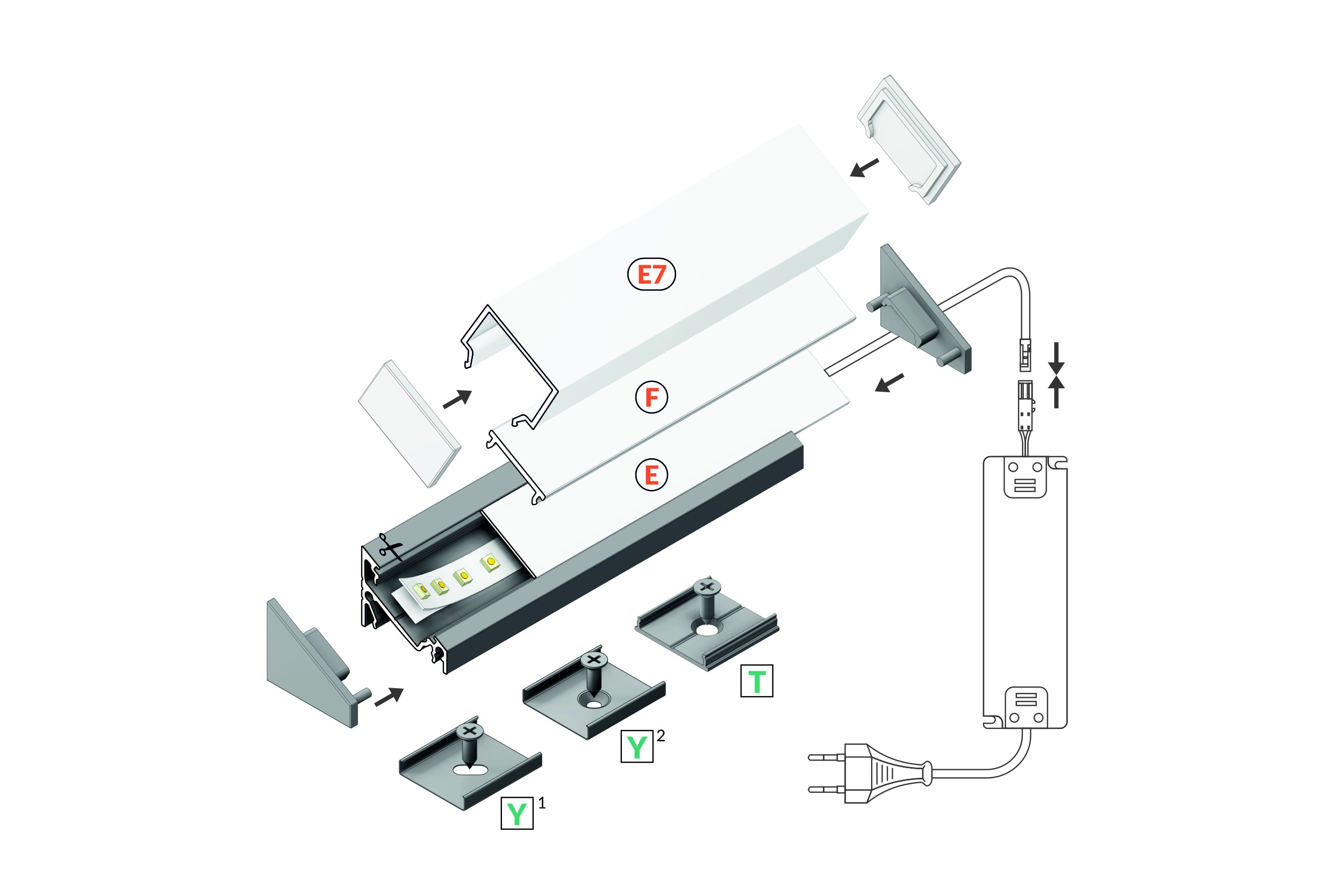

E or F slide-in and E7 click-fit diffuser options are available, with Y, cone Y or T mounting plates. The profile supports 12V and 24V LED strip systems and is offered in anodised and black finishes.

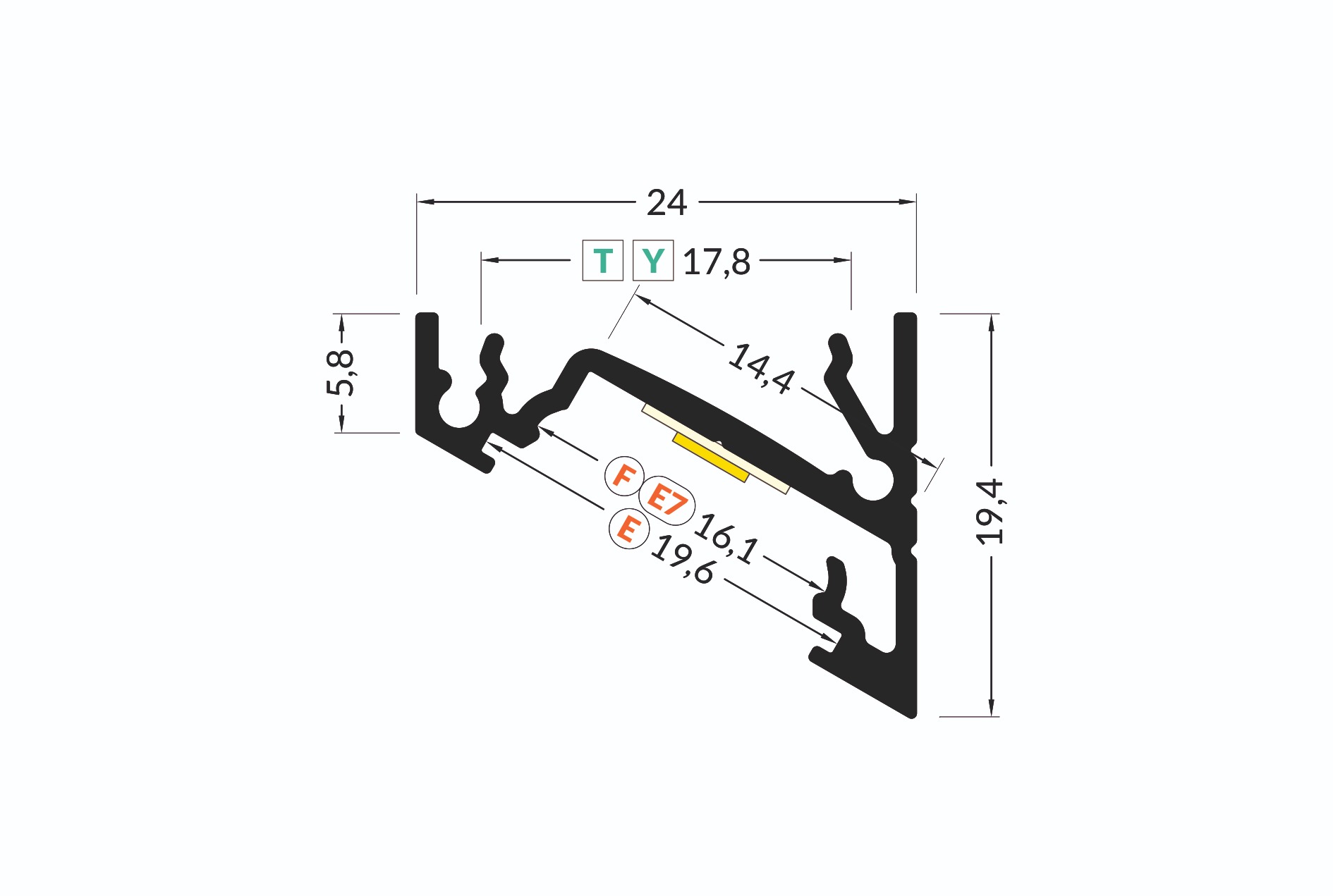

| Height | 19.4mm |
| Width | 24mm |
| Max. LED Tape Width | 14mm |
| Length | 2m |
| Material | Aluminium |
PDF Download
