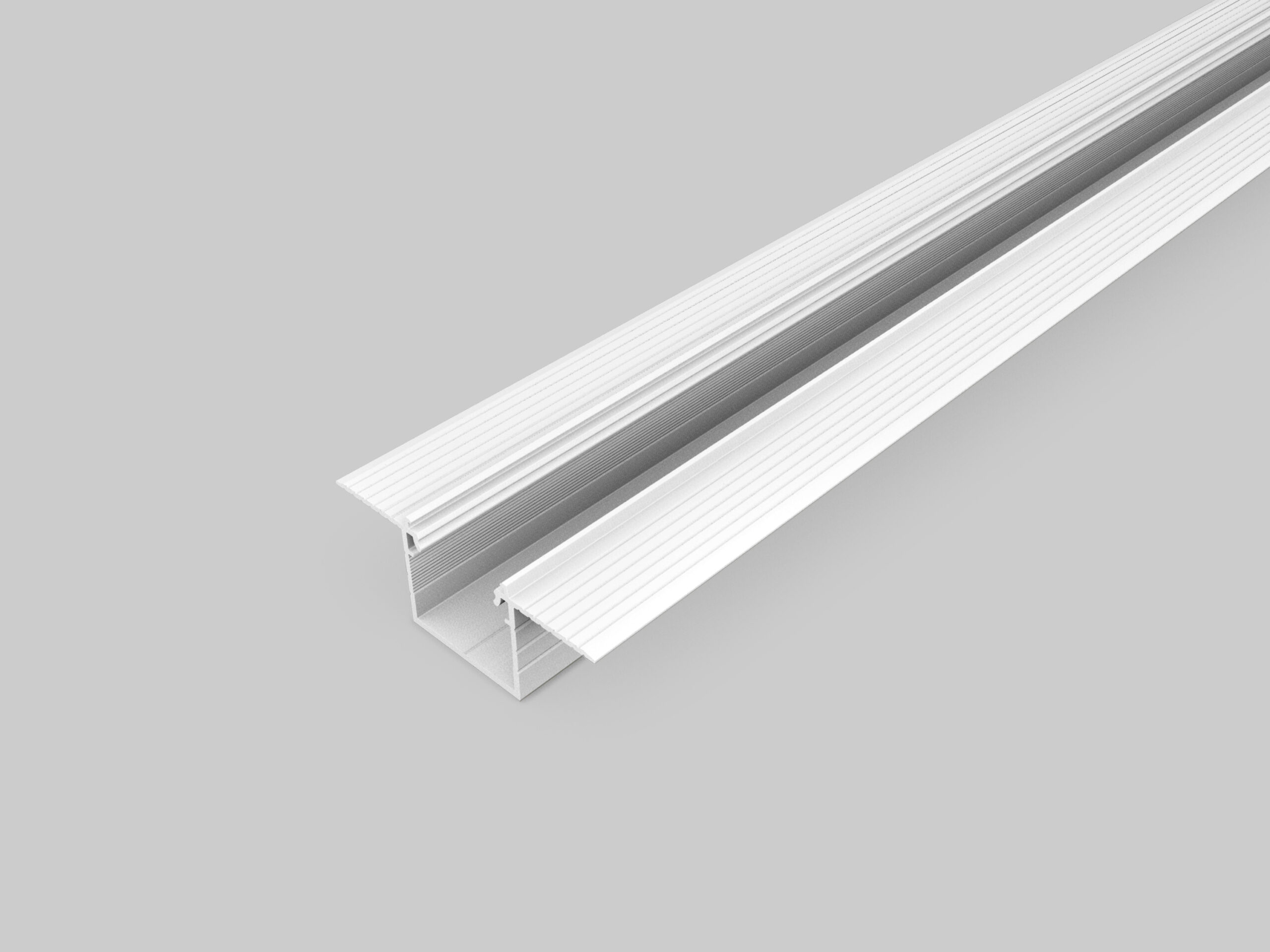

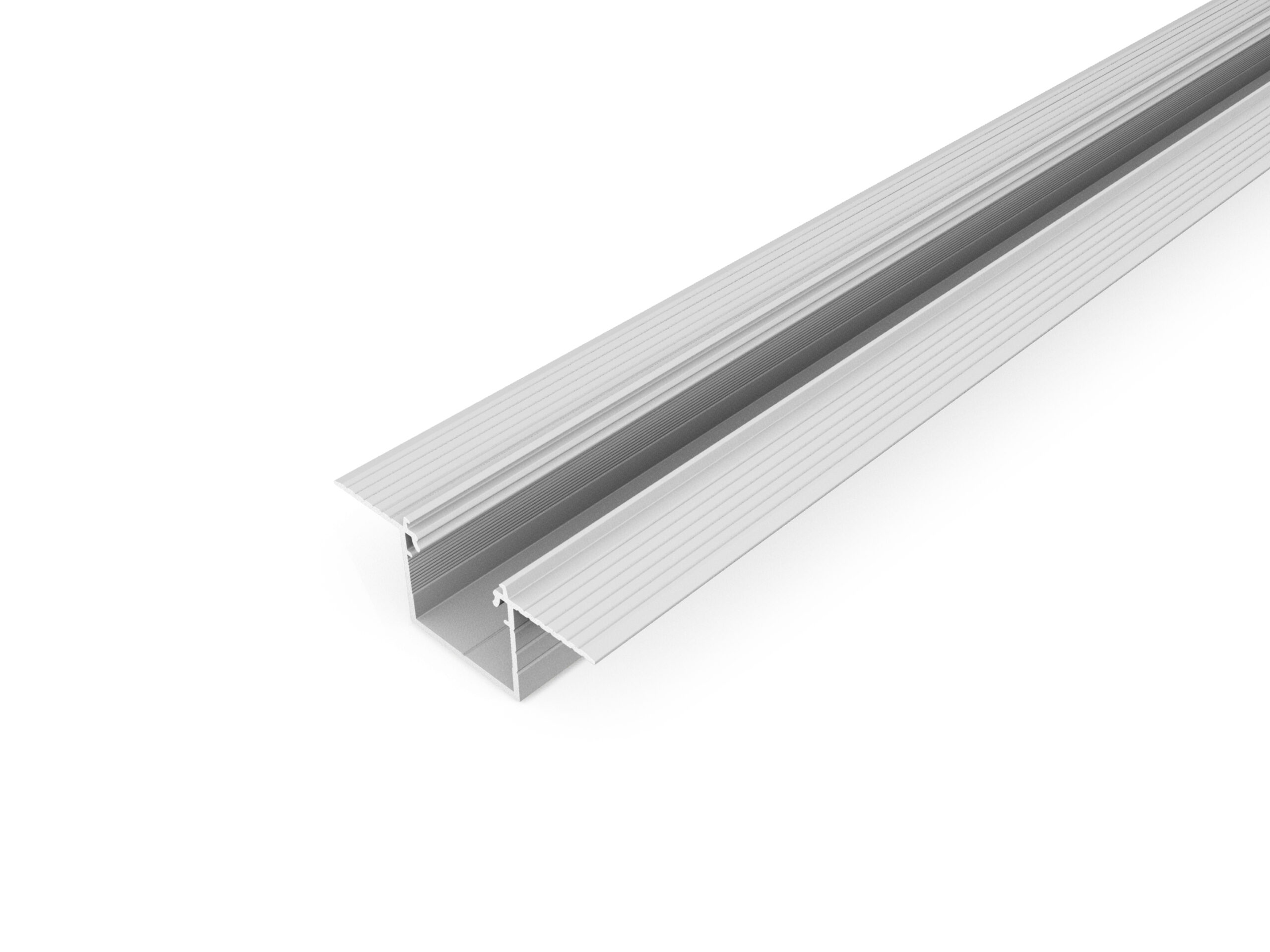

LINEA-IN20 TRIMLESS E/F
LINEA-IN20 TRIMLESS E/F - Image 2
LINEA-IN20 TRIMLESS E/F - Image 3
LINEA-IN20 TRIMLESS E/F - Image 4
LINEA-IN20 TRIMLESS E/F - Image 5
LINEA-IN20 TRIMLESS E/F - Image 6

LINEA-IN20 TRIMLESS E/F

Product Height

20mm
Internal Width

20mm
Available Body Colours

Raw
Available Diffuser

Click, Slide
Available Diffuser Colours

Black, Frosted, Opal, Transparent
Available Lengths

4m, 3m, 2m, 1m
Application

Plaster In
SKU: IN-LINEA-01 Category: Tag:

Description

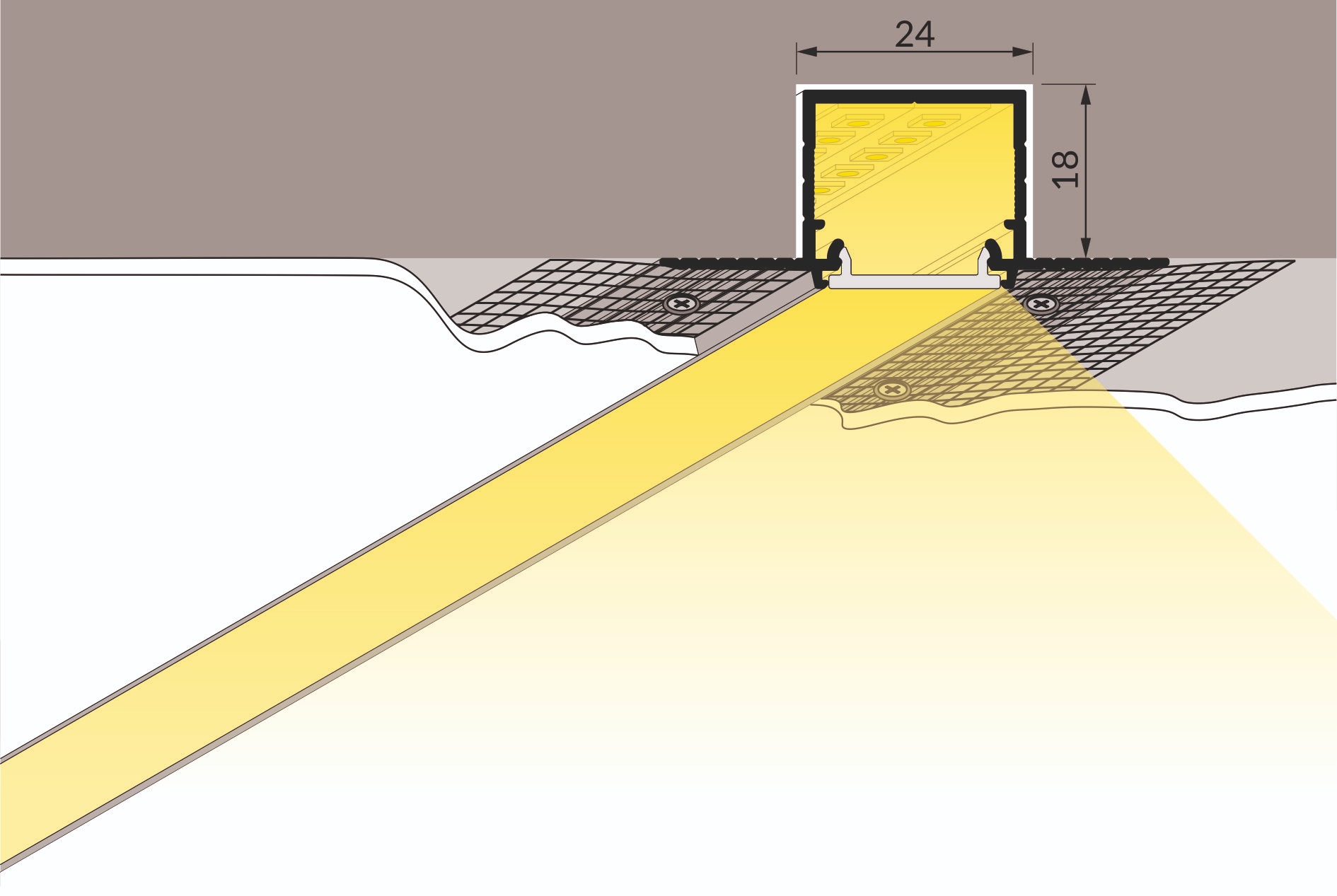

The LINEA-IN20 TRIMLESS E/F is a wide plaster-in aluminium LED profile for seamless recessed linear lighting in walls and ceilings. Its 20mm internal channel accepts wide or multi-row LED tape arrangements for high-output applications.

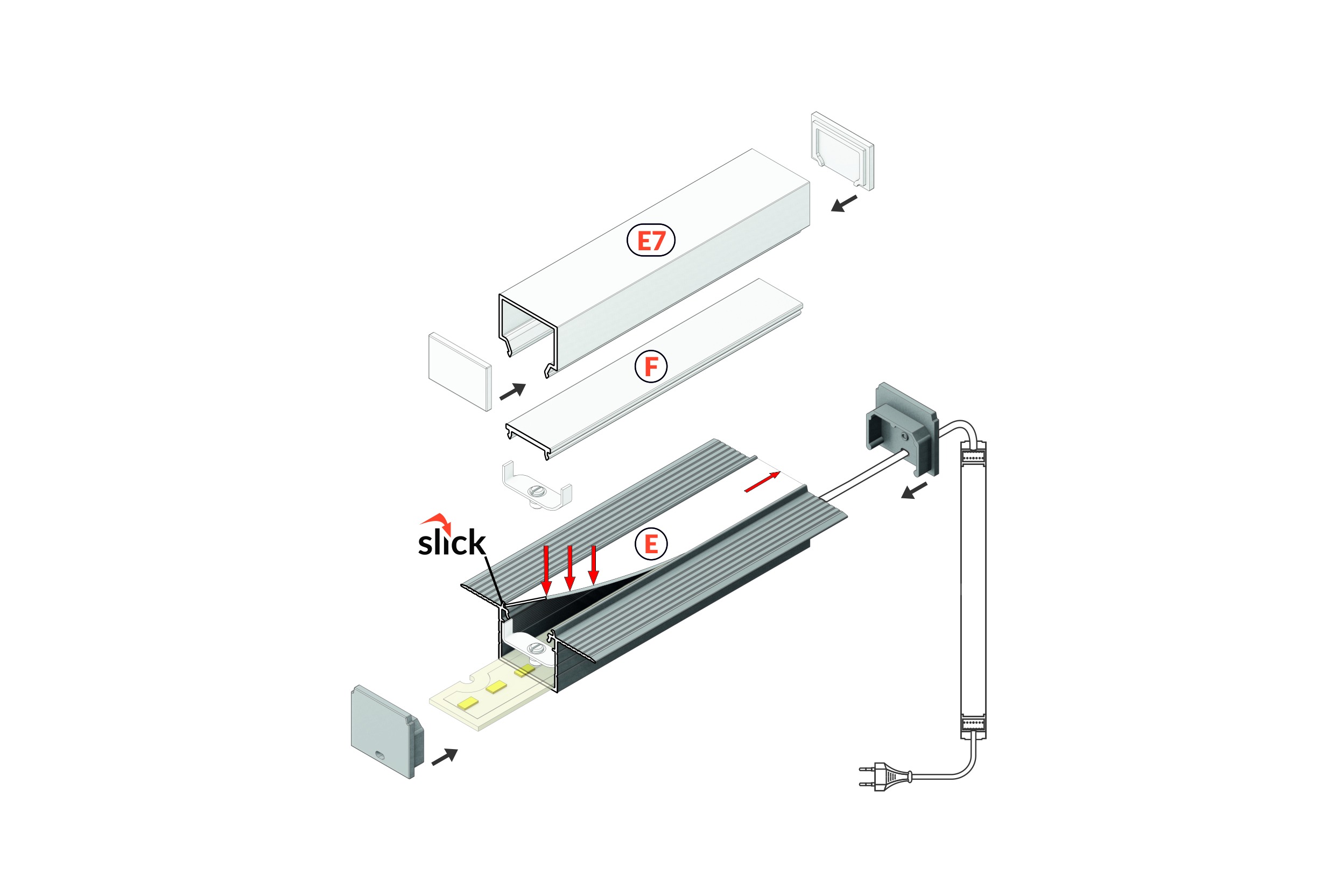

E slide-in and F click-fit diffuser options provide different finished lighting effects. The raw aluminium wings are concealed beneath the final plaster finish, leaving only a clean line of light visible. The profile supports 12V and 24V LED strip systems.

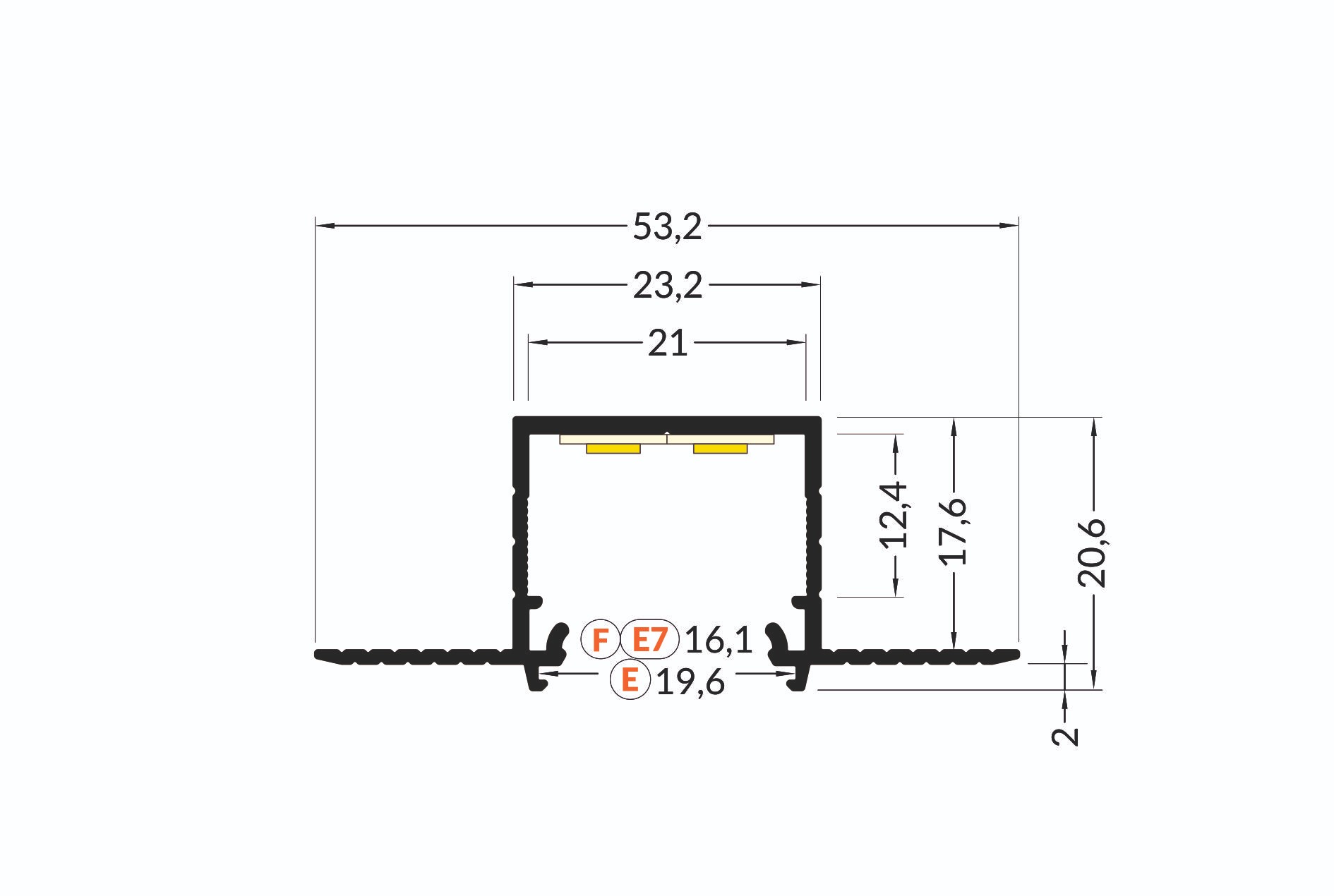

Tech Specs

Height 20.6mm
Width 52mm
Max. LED Tape Width 20mm
Length 2m
Material Aluminium

Product Data Sheet

PDF Download
