| Product Height | 20mm |
|---|---|
| Internal Width | 16mm |
| Available Body Colours | Anodised, Black, Raw, White |
| Available Diffuser | Click, Slide |
| Available Diffuser Colours | Black, Frosted, Opal, Transparent |
| Available Lengths | 4m, 3m, 2m, 1m |
| Application | Surface Mounted |
| Product Width | 20mm |

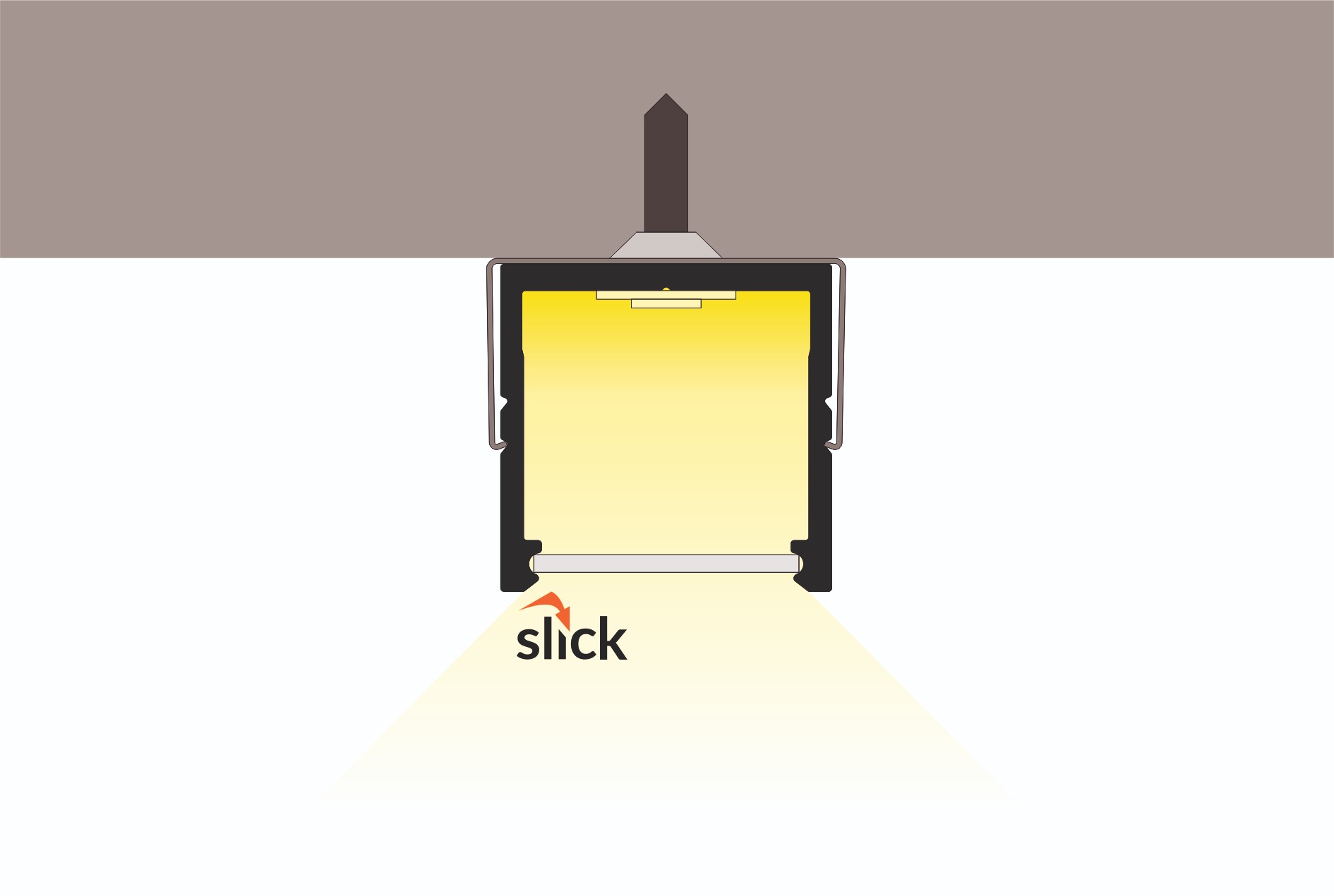

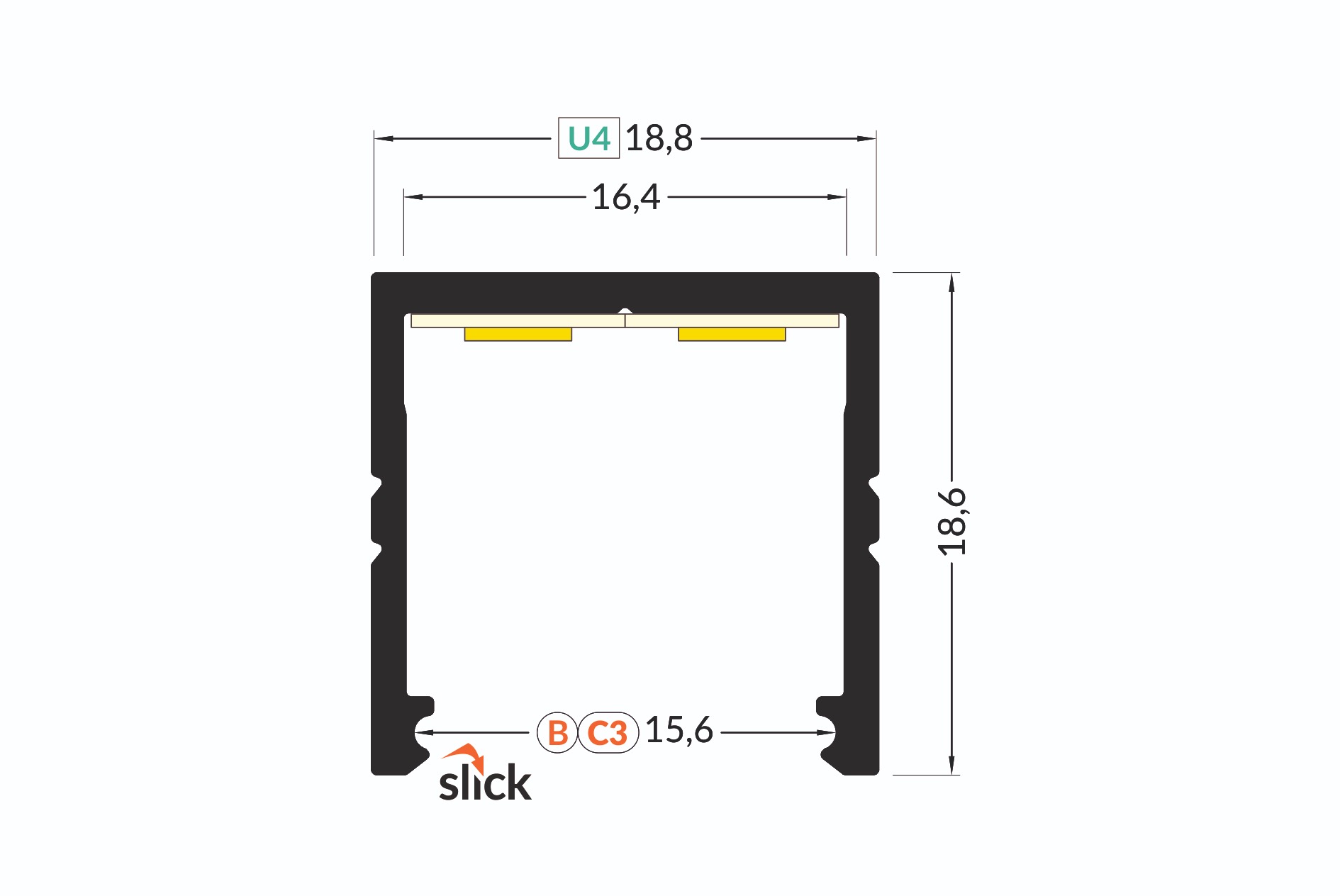

The SMART16 BC3/U4 is a deep surface-mounted aluminium LED profile for wider or higher-output LED tape. Its 18.8mm wide x 18.6mm high body accepts tape up to 16mm wide and helps reduce spotting for a smooth, uniform lighting effect.

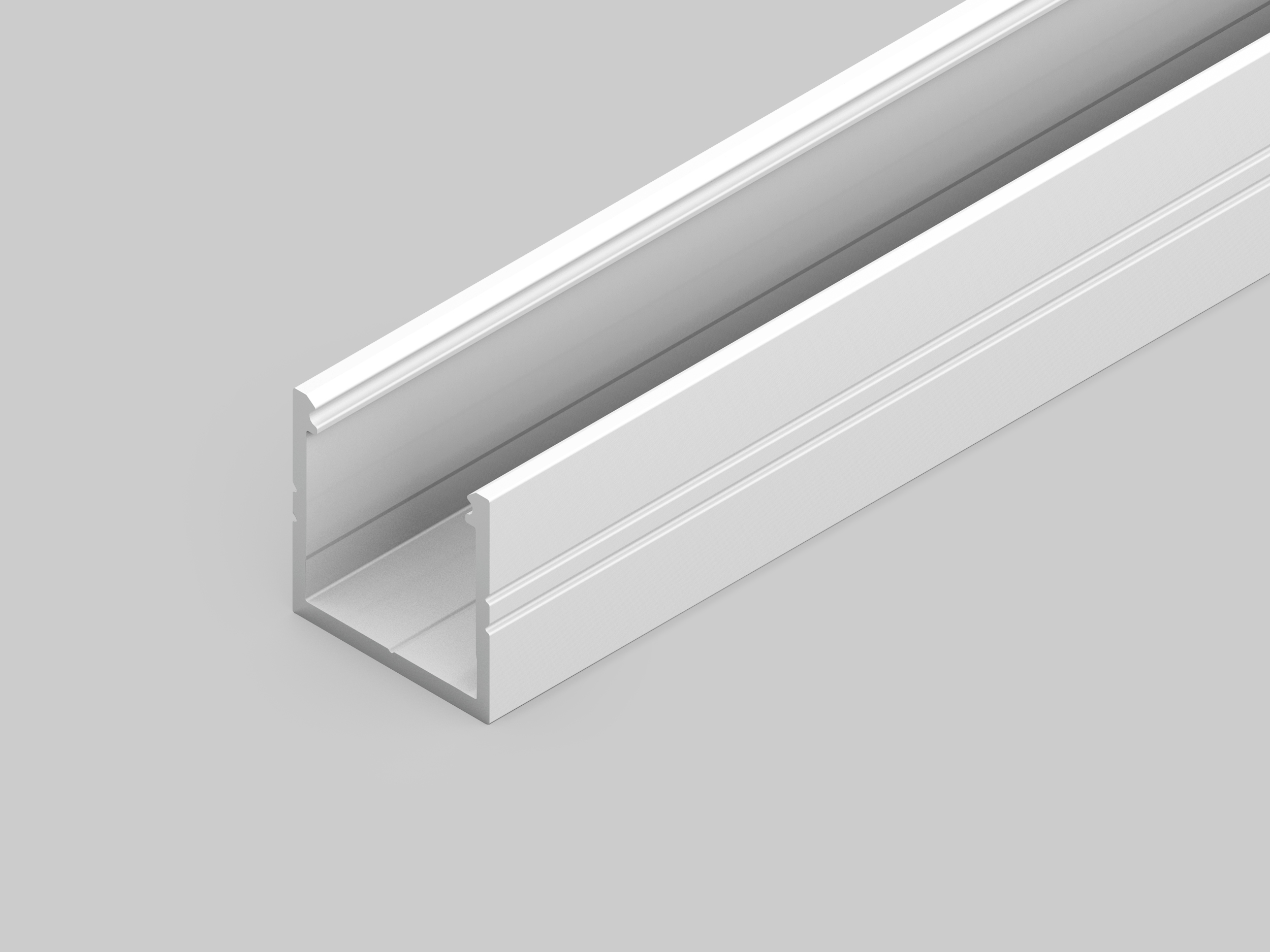

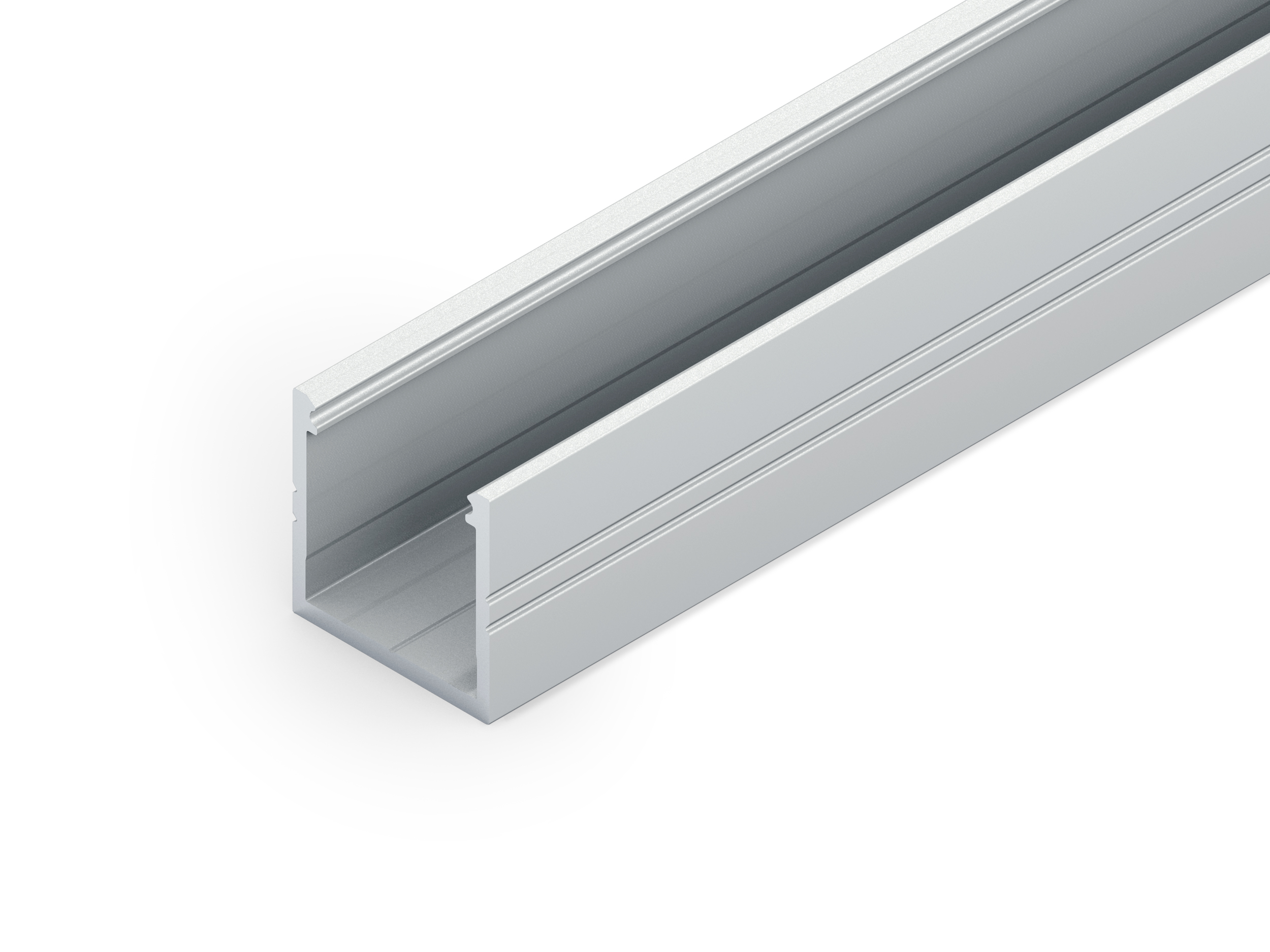

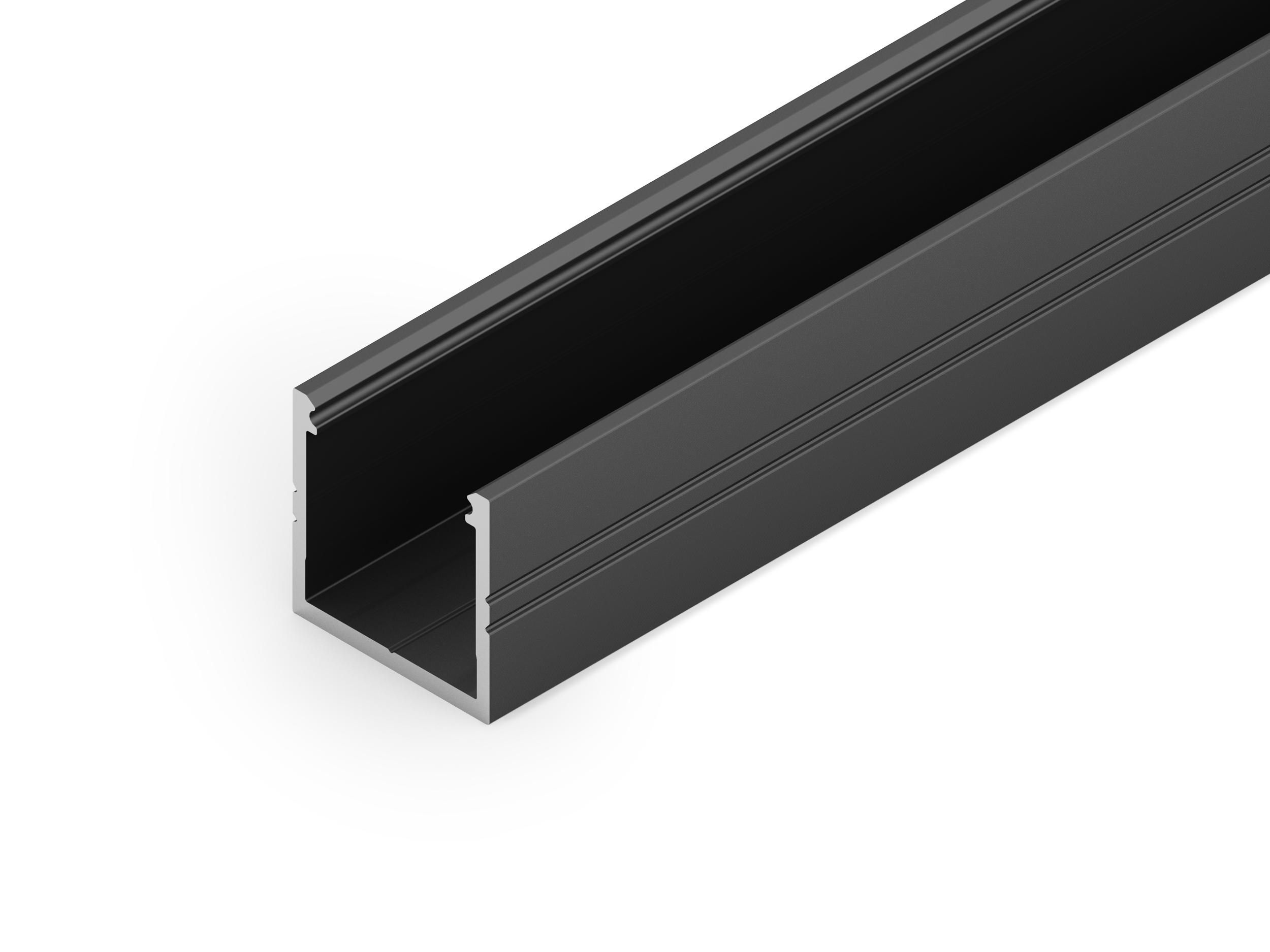

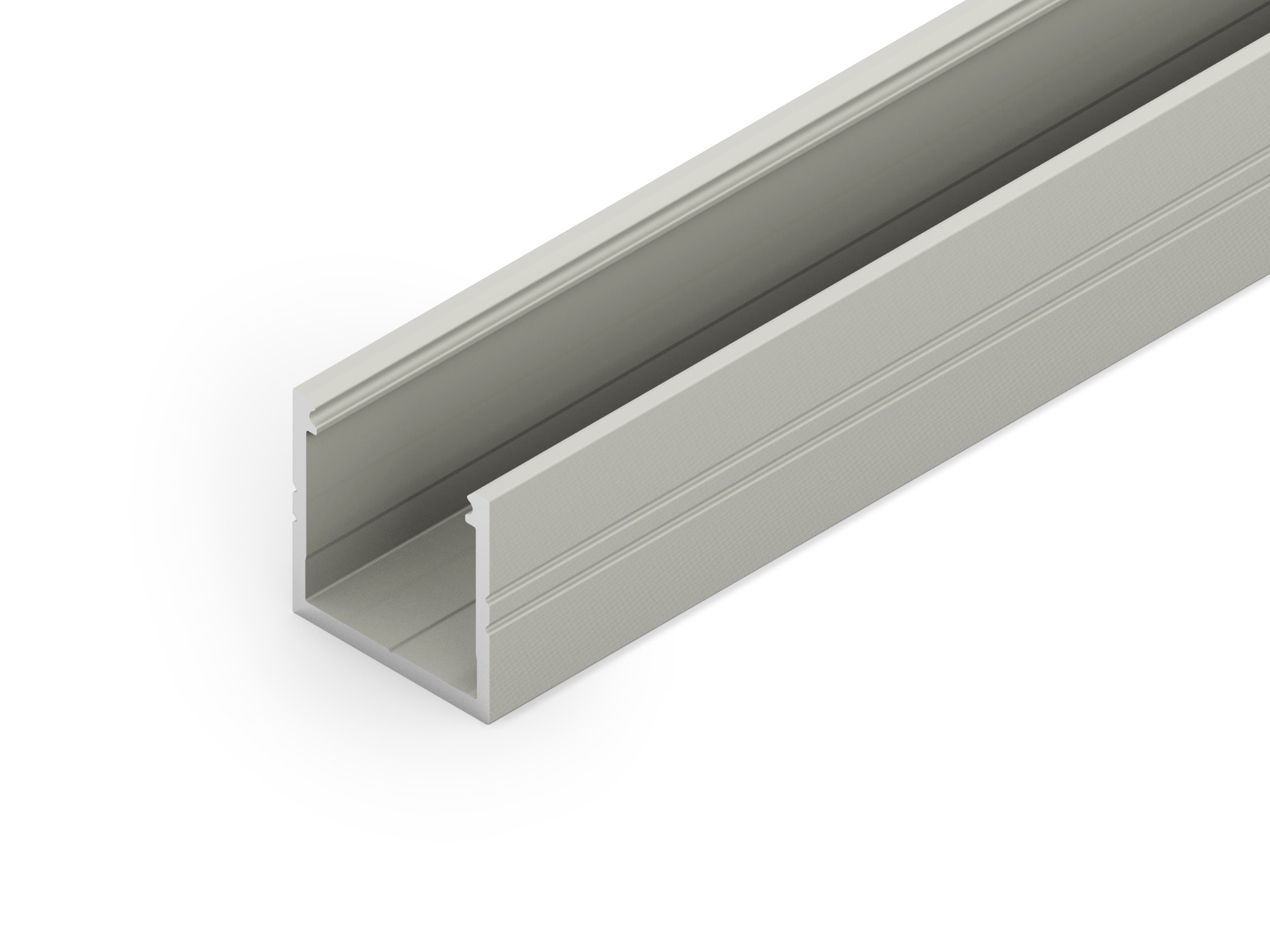

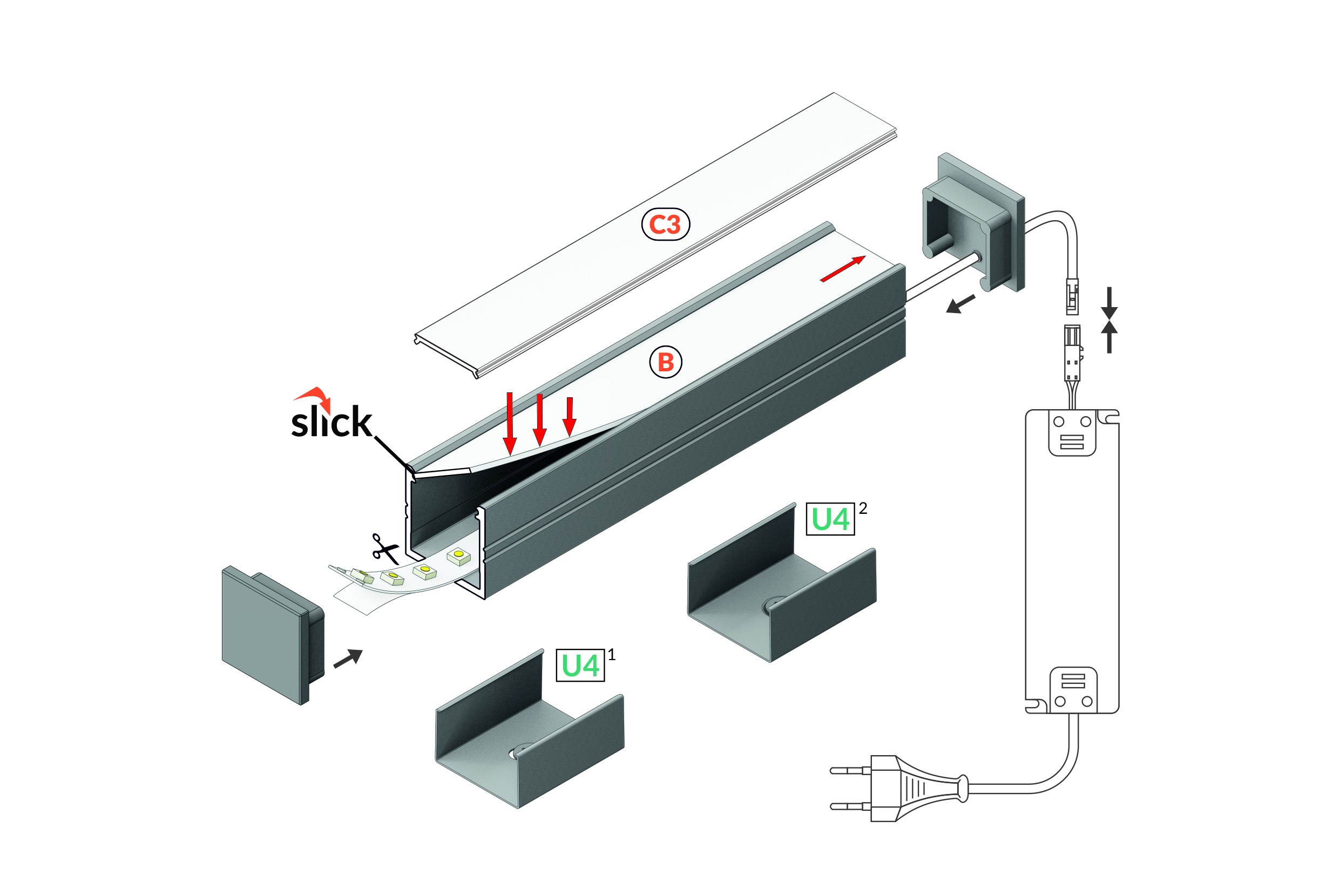

B slide-in and C3 click-fit diffusers are available, with U4 or cone U4 mounting plates for secure installation. The profile is compatible with 12V and 24V LED strip systems and is offered in anodised, black, raw aluminium and white finishes.
| Height | 18.6mm |
| Width | 18.8mm |
| Max. LED Tape Width | 16mm |
| Length | 2m |
| Material | Aluminium |
