BESTSELLER
BEGTON12 JC/S
BEGTON12 JC/S - Image 2
BEGTON12 JC/S - Image 3
BEGTON12 JC/S - Image 4
BEGTON12 JC/S - Image 5
BEGTON12 JC/S - Image 6
BEGTON12 JC/S - Image 7
BEGTON12 JC/S - Image 8

BEGTON12 JC/S

Product Height

6mm
Product Width

14mm
Internal Width

12mm
Available Body Colours

Anodised, Black, Raw, White
Available Diffuser

Click, Slide
Available Diffuser Colours

Black, Frosted, Opal, Transparent
Available Lengths

4m, 3m, 2m, 1m
Application

Surface Mounted
SKU: IN-BEGTO Category: Tag:

Description

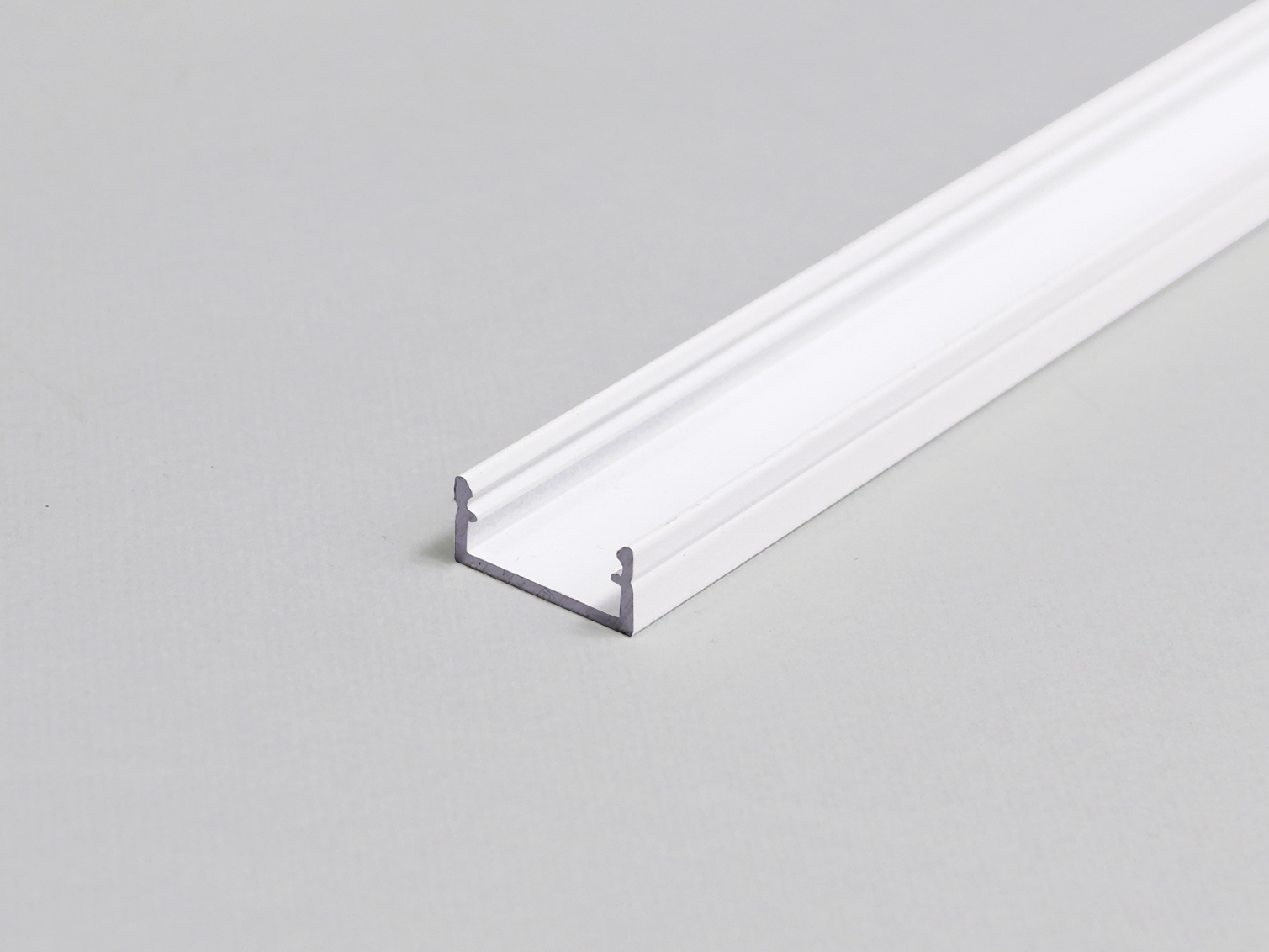

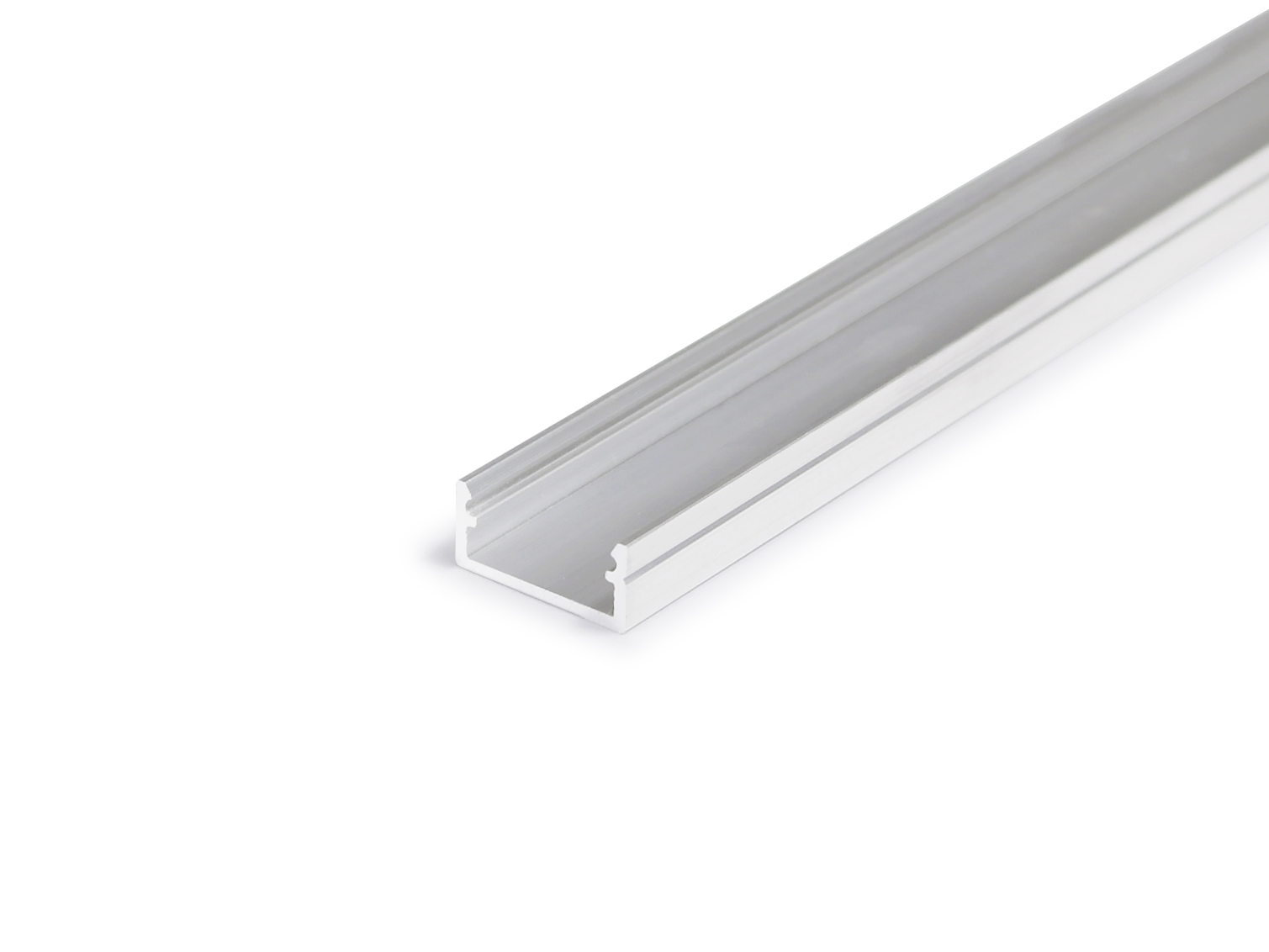

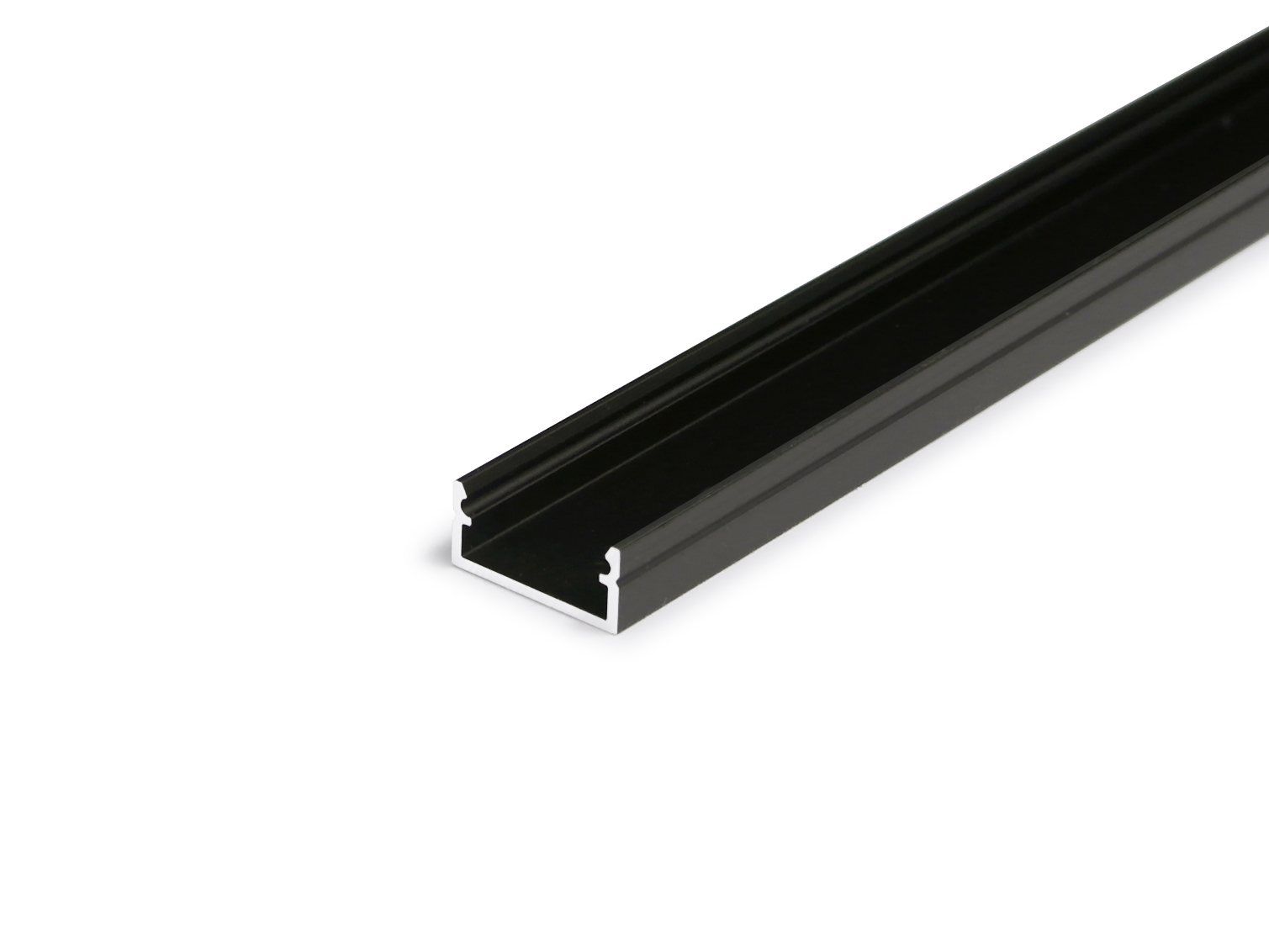

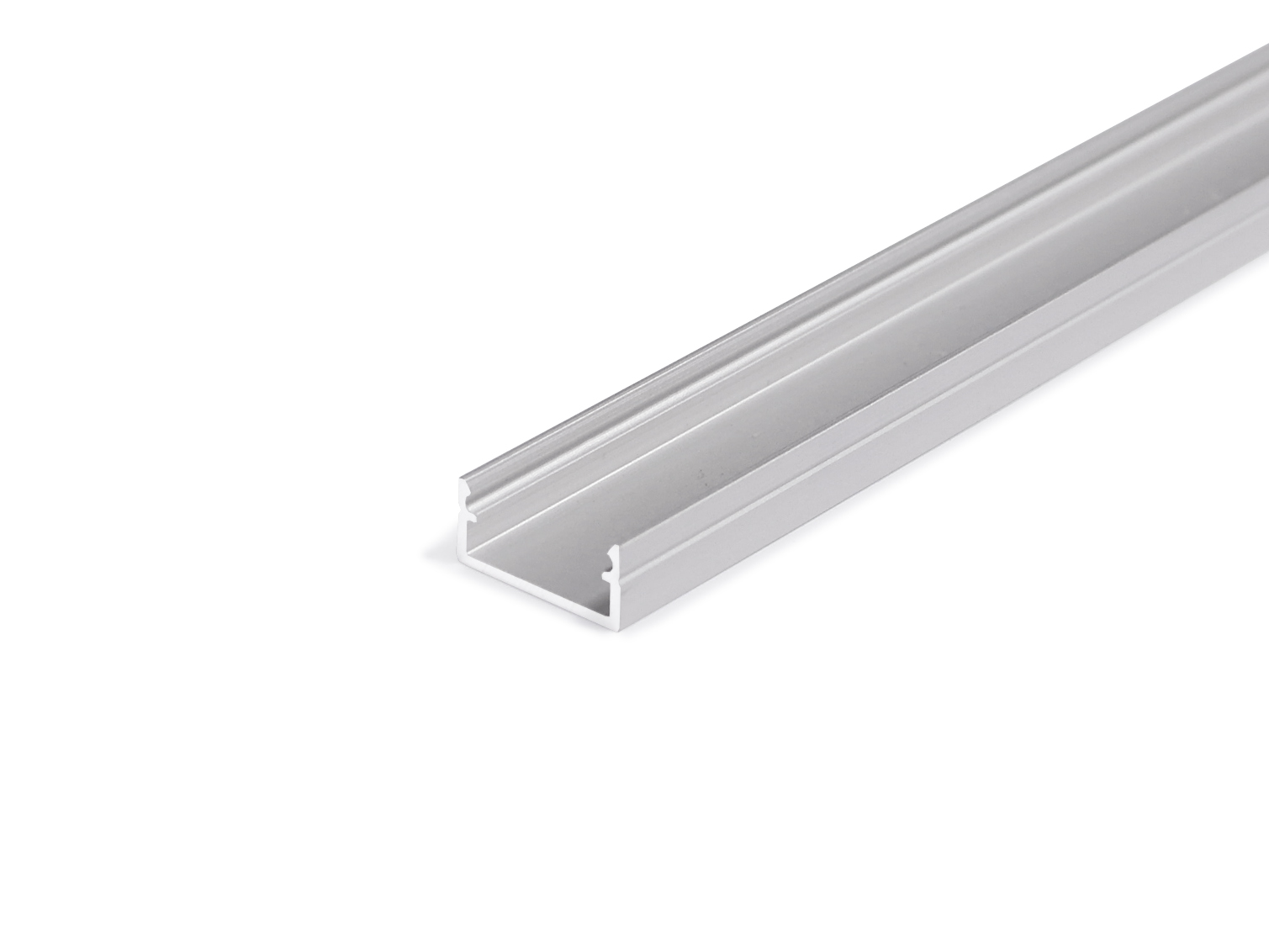

The BEGTON12 JC/S is a compact, low-profile surface-mounted aluminium LED profile for clean, continuous linear lighting. Measuring 14.4mm wide x 6.6mm high, it accepts LED tape up to 12mm wide and is suitable for furniture, shelving, cabinetry and architectural details.

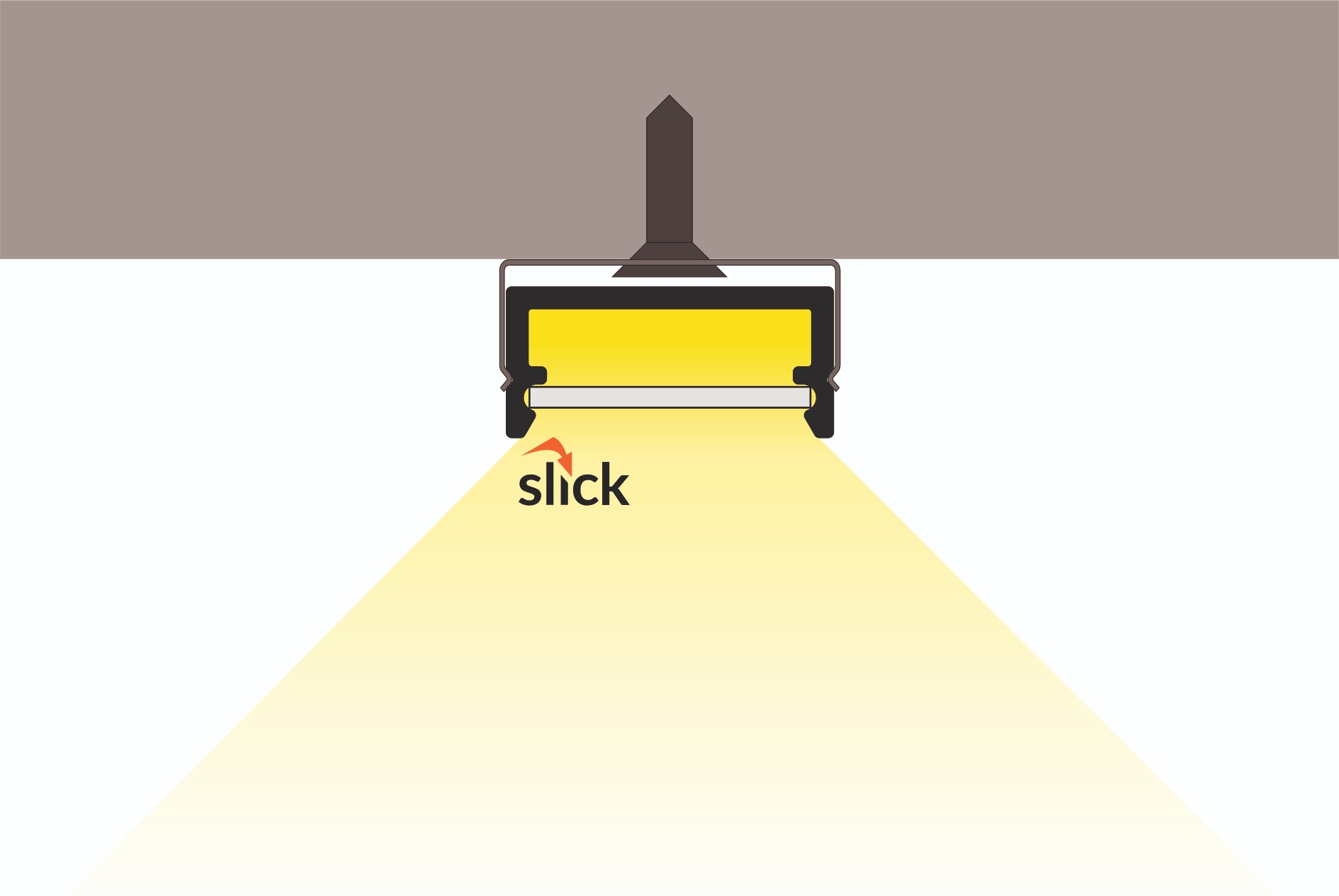

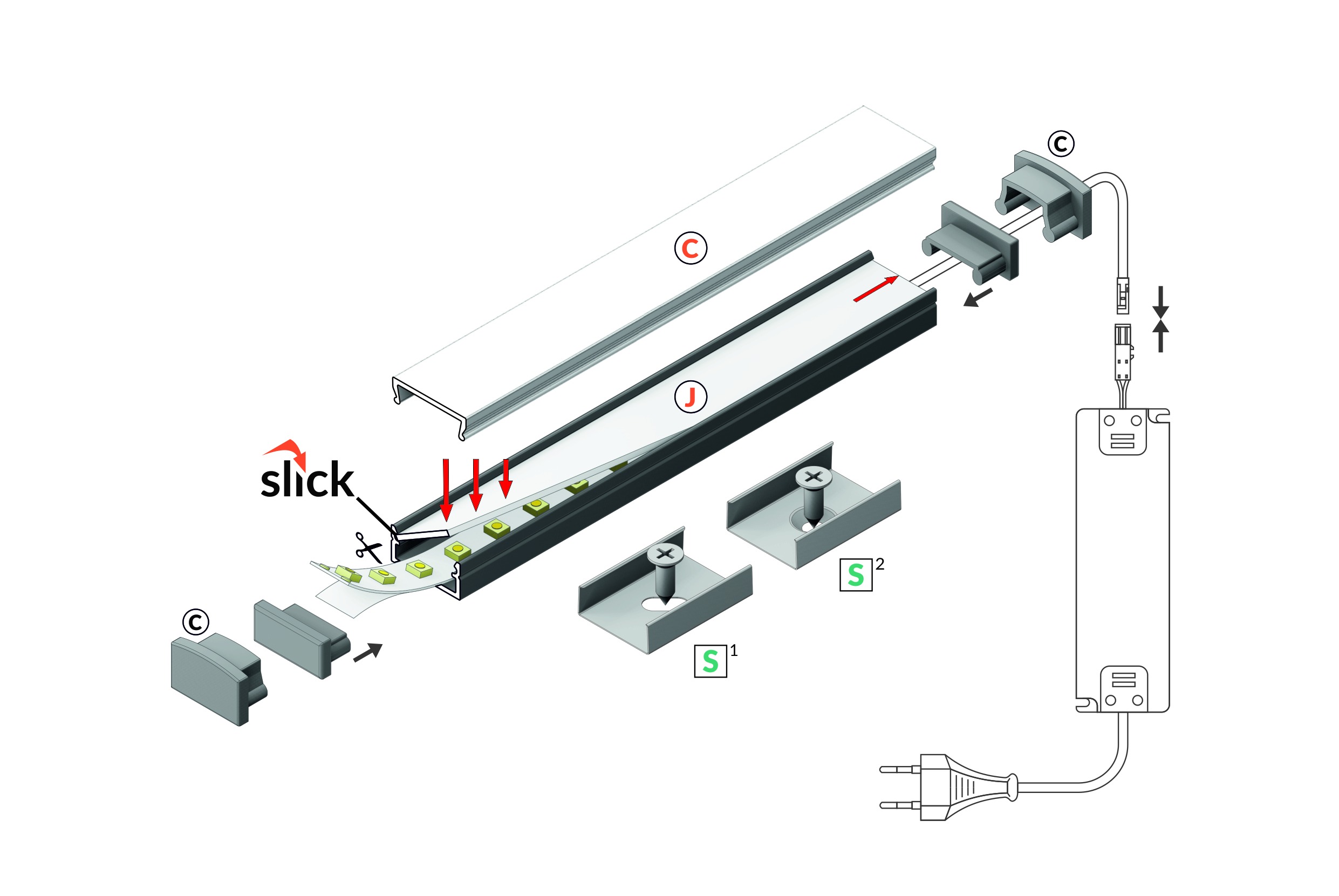

A slide-in diffuser and C click-in diffuser creates a neat finished appearance, while flexible mounting plates, cone plates, adhesive or mounting tape provide a choice of installation methods. The profile is compatible with 12V and 24V LED strip systems and is available in anodised, black, raw aluminium and white finishes.

Tech Specs

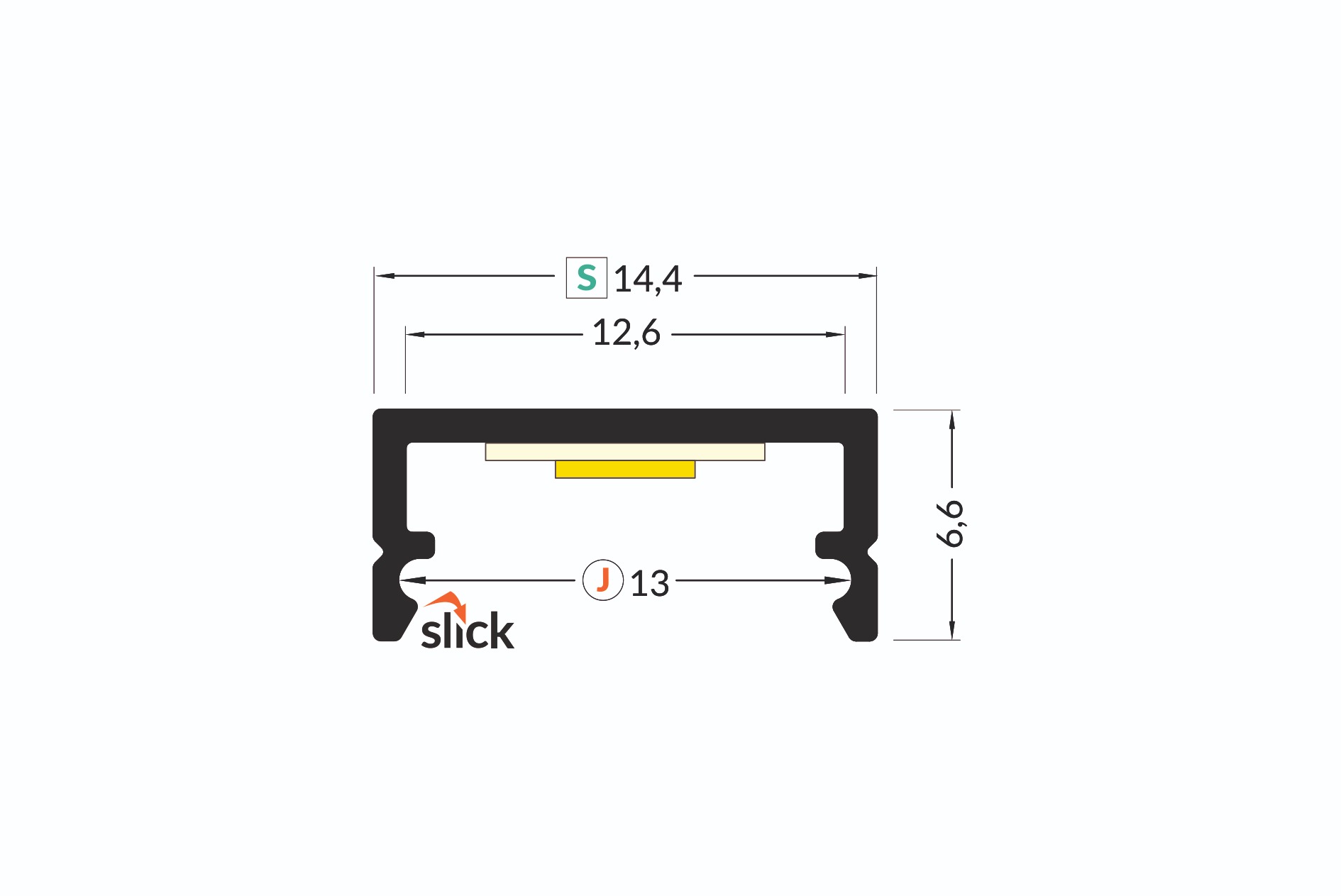

Height 6.6mm
Width 14.4mm
Max. LED Tape Width 12mm
Length 2m
Material Aluminium

Product Data Sheet

PDF Download
