LS5W-12V
LS5W-12V - Image 2
LS5W-12V - Image 3

LS5W-12V

Warranty

5 years
CRI

>80
Cut points

50mm
Run Length (max)

5 Metres
LED Width

8mm
Watts per Metre

5w/m
IP Rating

IP20
Available Colours

6000k, 4000k, 3000k
Length

Custom
LED Type

White
Mounting Type

Adhesiveback
Voltage

12V
Beam Angle

110-120
Bend Direction

Vertical
SKU: IN-LS5W1 Category: Tag:

Description

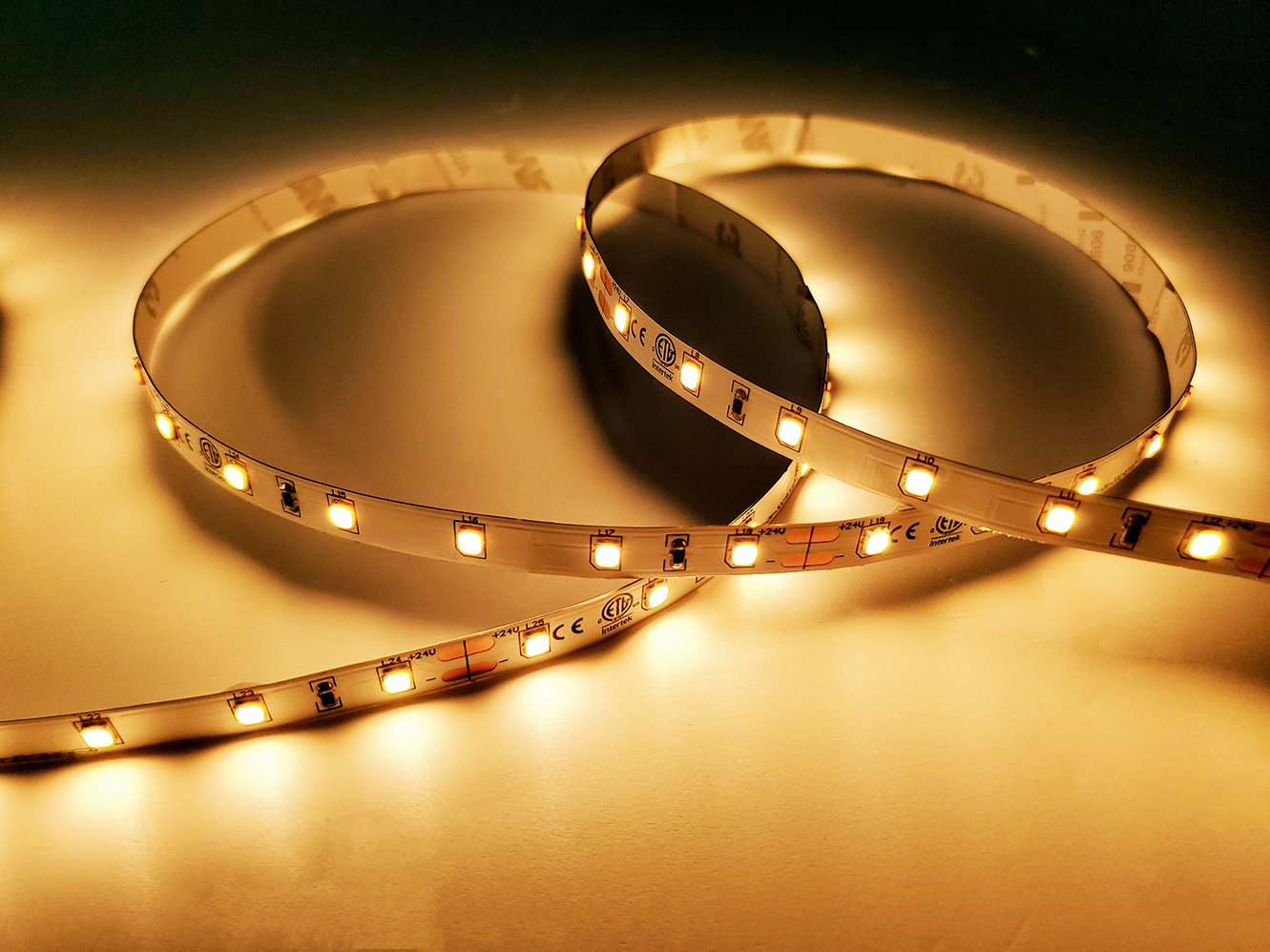

The LS5W-12V is a standard-output LED strip for efficient indoor accent, display and indirect lighting. Operating at 4.8W per metre from a 12V DC constant-voltage supply, it delivers more than 95lm/W with a CRI above 85.

The 8mm-wide tape contains 60 high-quality 2835 LEDs per metre and can be cut every 50mm, making it suitable for layouts that require shorter cutting increments. Depending on colour temperature, it produces between 400lm/m and 470lm/m across a 120° beam angle.

The LS5W-12V is rated IP20 for dry indoor use and can be supplied in lengths of up to 5 metres. It is available in 2700K, 3000K, 4000K and 6000K, is dimmable with a compatible LED driver and is covered by a five-year warranty.

Tech Specs

LED Type 2835
LED Quantity 60 LEDs/m
Product Width 8mm
Product Height 1.2mm
Power (W) 4.8w/m
Voltage 12V DC Constant Voltage
Current (A) 0.4A/m
CRI 85+ (90, 98 available to order)
LED Lifespan 50,000 hours
Certification CE, ETL, UL, LM79 & LM80
