LS5W-24V
LS5W-24V - Image 2
LS5W-24V - Image 3

LS5W-24V

Warranty

5 years
CRI

>85
Cut points

100mm
Run Length (max)

10 Metres
LED Width

8mm
Watts per Metre

5w/m
IP Rating

IP20
Available Colours

6000k, 4000k, 3000k, 2700k
Length

Custom
LED Type

White
Mounting Type

Adhesiveback
Voltage

24V
Beam Angle

110-120
Bend Direction

Vertical
SKU: IN-LS5W2 Category: Tag:

Description

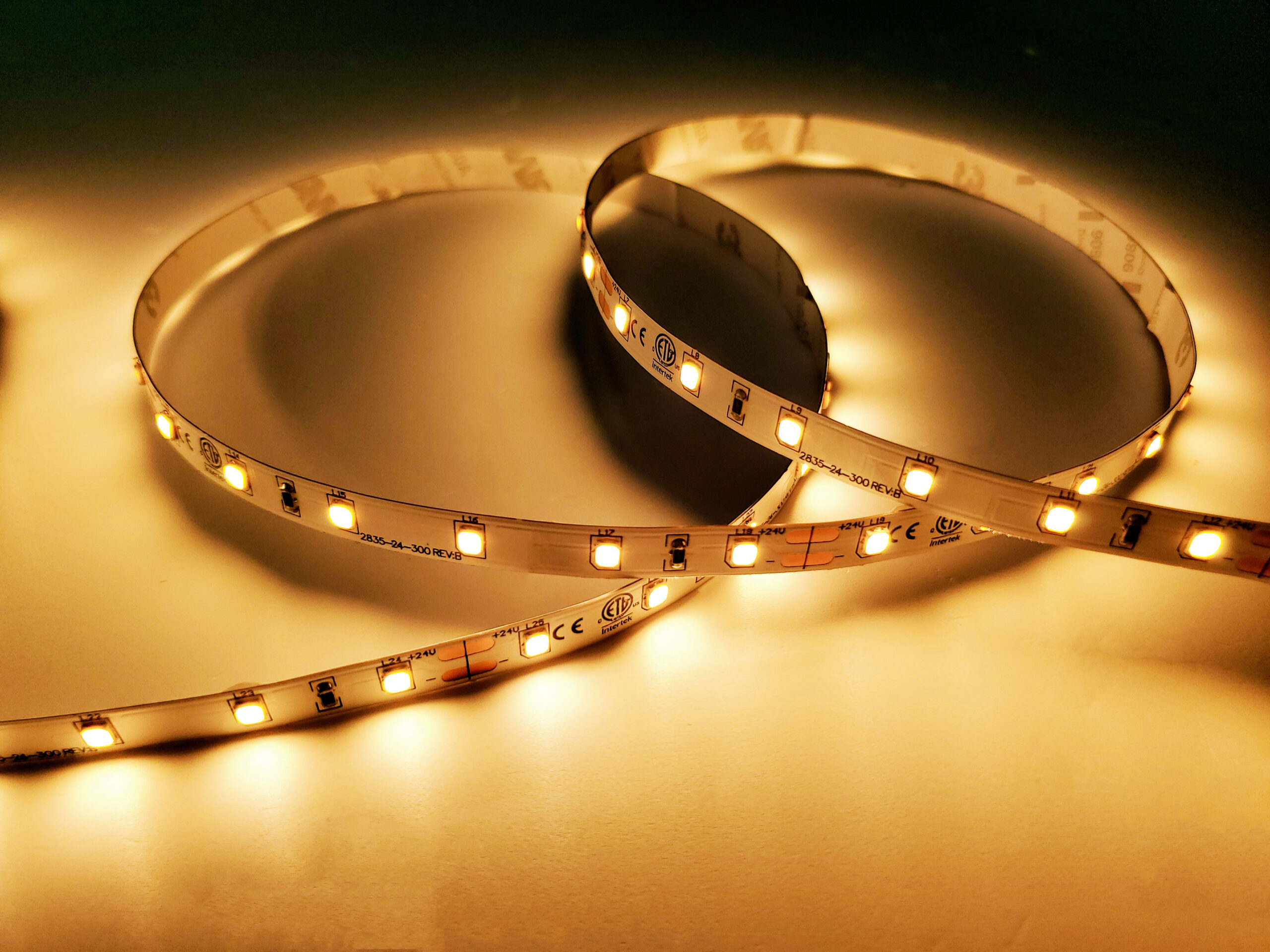

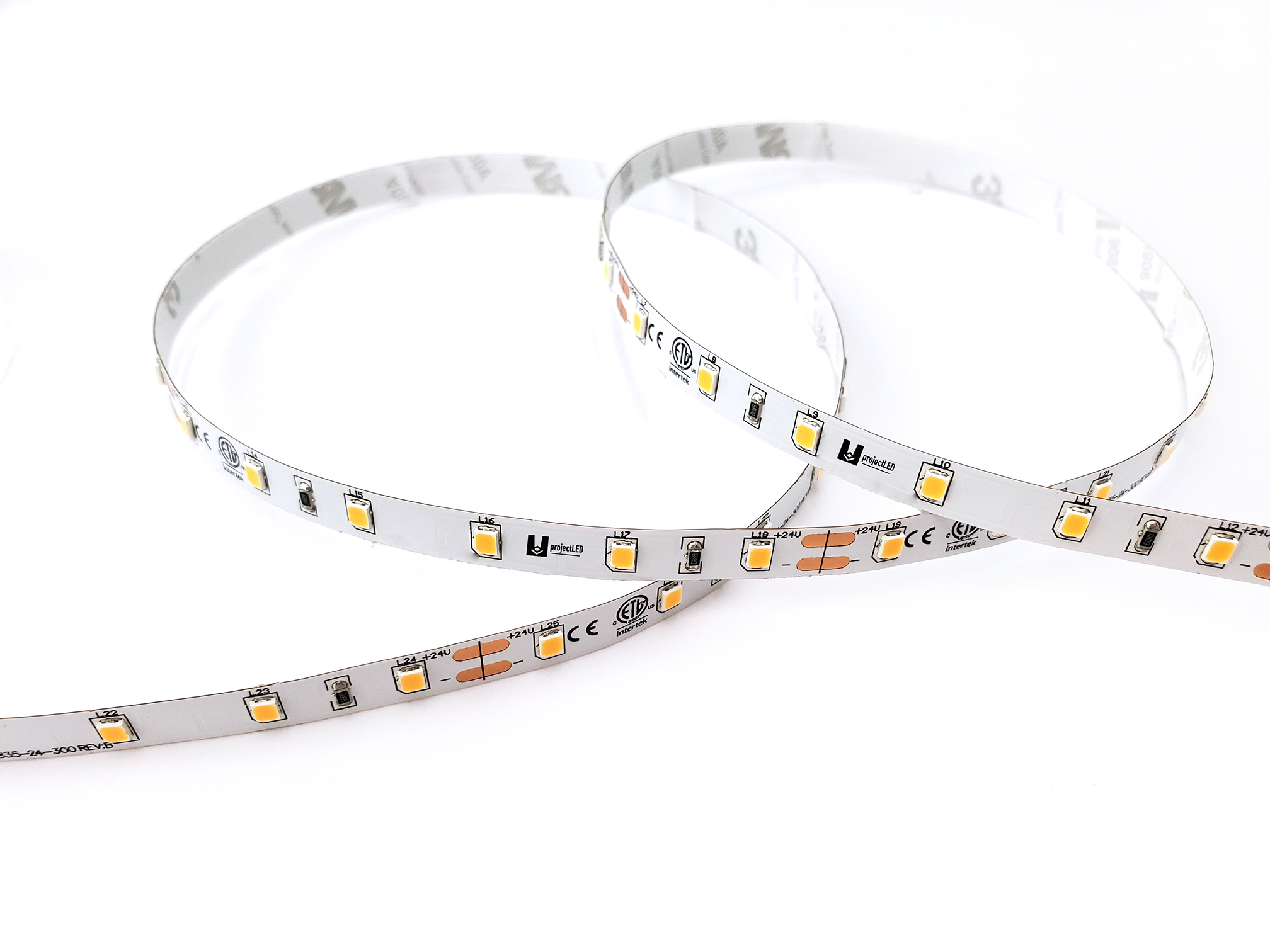

The LS5W-24V is a standard-output LED strip for efficient indoor accent, display and indirect lighting. Operating at 4.8W per metre from a 24V DC constant-voltage supply, it delivers more than 95lm/W with a CRI above 85.

The 8mm-wide tape uses 60 high-quality 2835 LEDs per metre and can be cut every 100mm. It produces up to 545lm/m, depending on the selected colour temperature, and provides a 120° beam angle for even light distribution.

The LS5W-24V is rated IP20 for dry indoor use and can be supplied in lengths of up to 10 metres. It is available in 2700K, 3000K, 4000K and 6000K, is dimmable with a compatible LED driver and is covered by a five-year warranty.

Tech Specs

LED Type 2835
LED Quantity 60 LEDs/m
Product Width 8mm
Product Height 1.2mm
Power (W) 4.8w/m
Voltage 24V DC Constant Voltage
Current (A) 0.2A/m
CRI 85+ (90, 98 available to order)
LED Lifespan 50,000 hours
Certification CE, ETL, UL, LM79 & LM80



Product Data Sheet

PDF Download
