LS17W-24V
LS17W-24V - Image 2

LS17W-24V

Warranty

5 years
CRI

>85
Cut points

25mm
Run Length (max)

10 Metres
LED Width

10mm
Watts per Metre

17w/m
IP Rating

IP20
Available Colours

6000k, 4000k, 3000k, 2700k
Length

Custom
LED Type

White
Mounting Type

Adhesiveback
Voltage

24V
Beam Angle

120-130
Bend Direction

Vertical
SKU: IN-LS17W Category: Tag:

Description

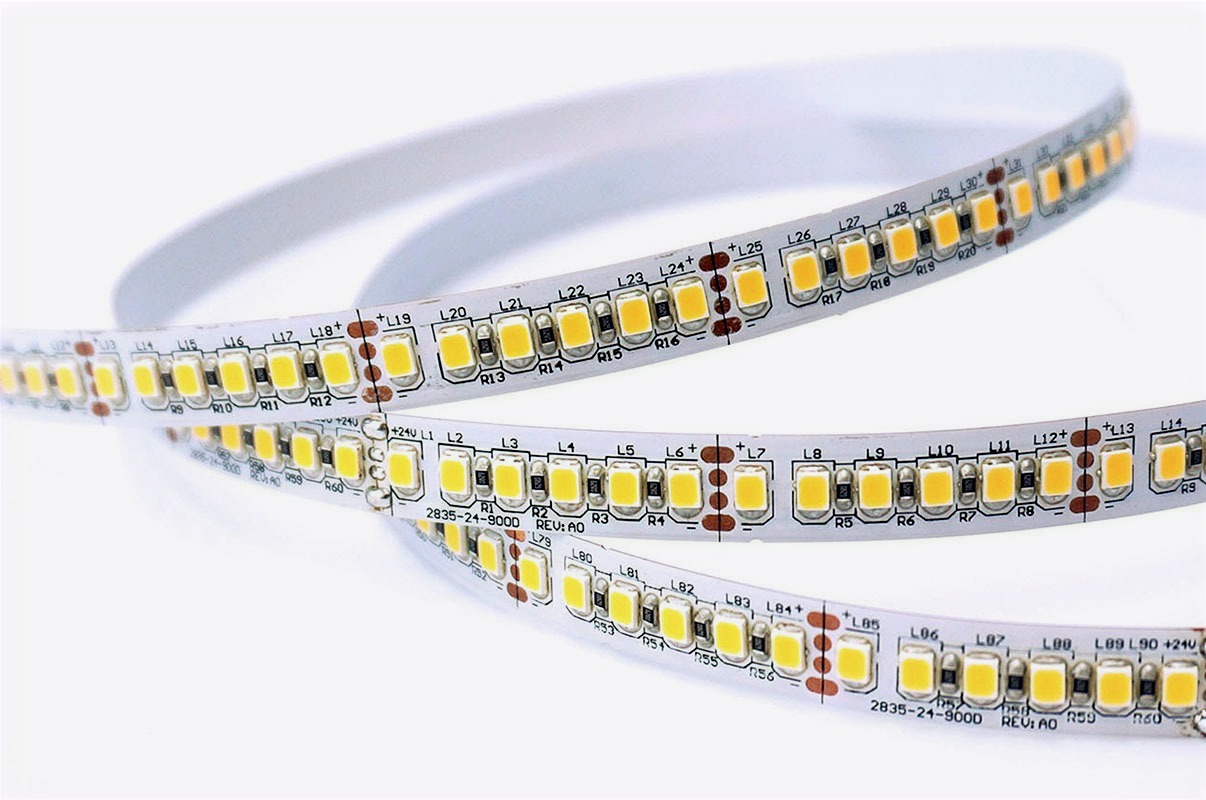

The LS17W-24V is a high-output, high-density LED strip designed for primary and high-brightness indoor lighting. Operating at 17W per metre from a 24V DC constant-voltage supply, it delivers more than 95lm/W with a CRI above 85.

The strip contains 240 high-quality 2835 LEDs per metre, helping to produce smooth, consistent illumination. Its 10mm-wide tape can be cut every 25mm and provides between 1,650lm/m and 2,000lm/m, depending on colour temperature, across a 120° beam angle.

The LS17W-24V is rated IP20 for dry indoor use and can be supplied in lengths of up to 10 metres. It is available in 2700K, 3000K, 4000K and 6000K, is dimmable with a compatible LED driver and is covered by a five-year warranty.

Tech Specs

LED Type 2835
LED Quantity 240 LEDs/m
Product Width 10mm
Product Height 1.2mm
Power (W) 17w/m
Voltage 24V DC Constant Voltage
Current (A) 0.7A/m
CRI 85+ (90, 98 available to order)
LED Lifespan 50,000 hours
Certification

CE, ETL, UL, LM79 & LM80
