PLANE14 SIDE B/C3

Product Height	14mm
Internal Width	14mm
Available Body Colours	Anodised, Raw, White
Available Diffuser	Click, Slide
Available Diffuser Colours	Black, Frosted, Opal, Transparent
Available Lengths	2m
Application	Plaster In
Product Width	17mm

SKU: IN-PANE1 Category: LED Profiles

Description

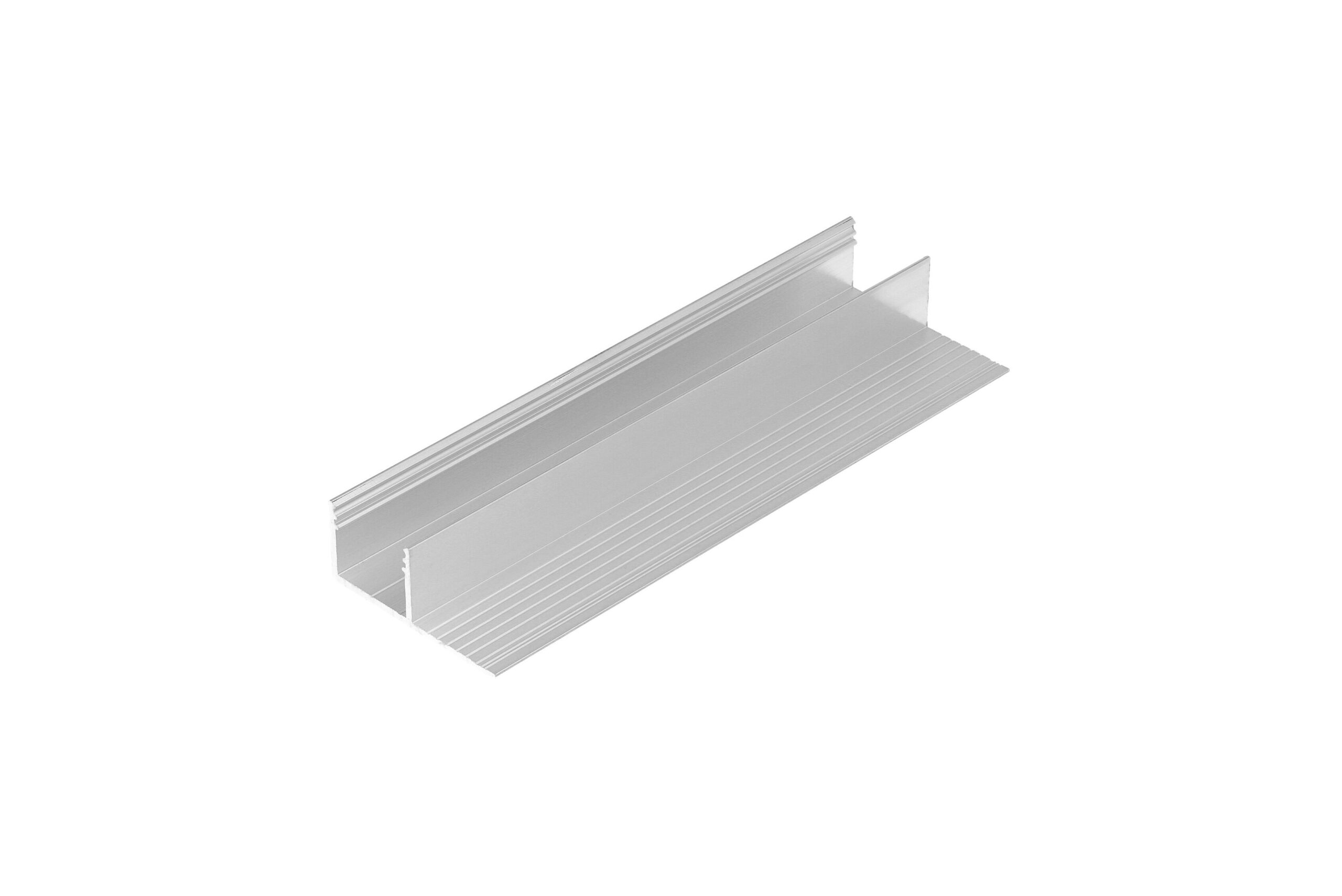

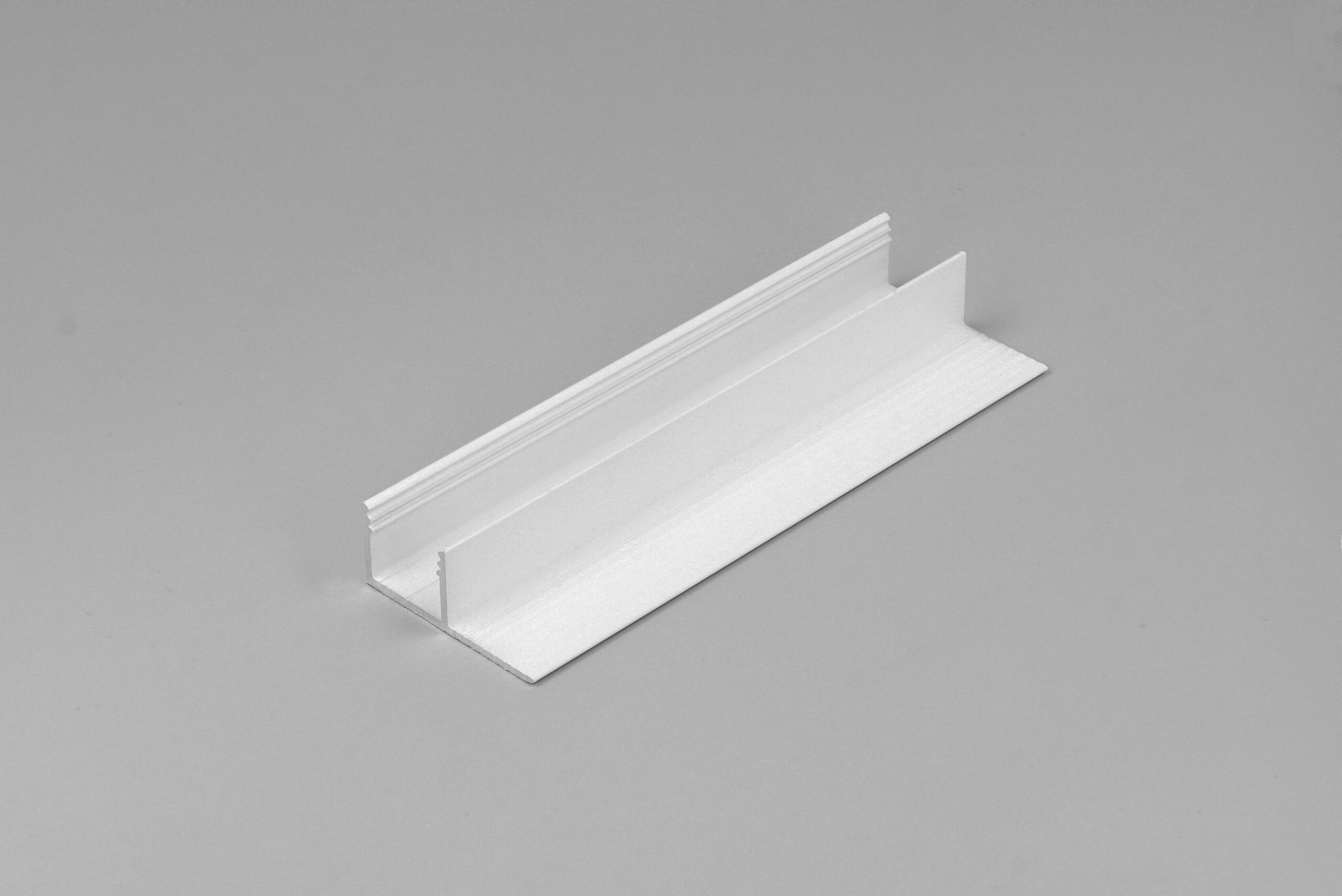

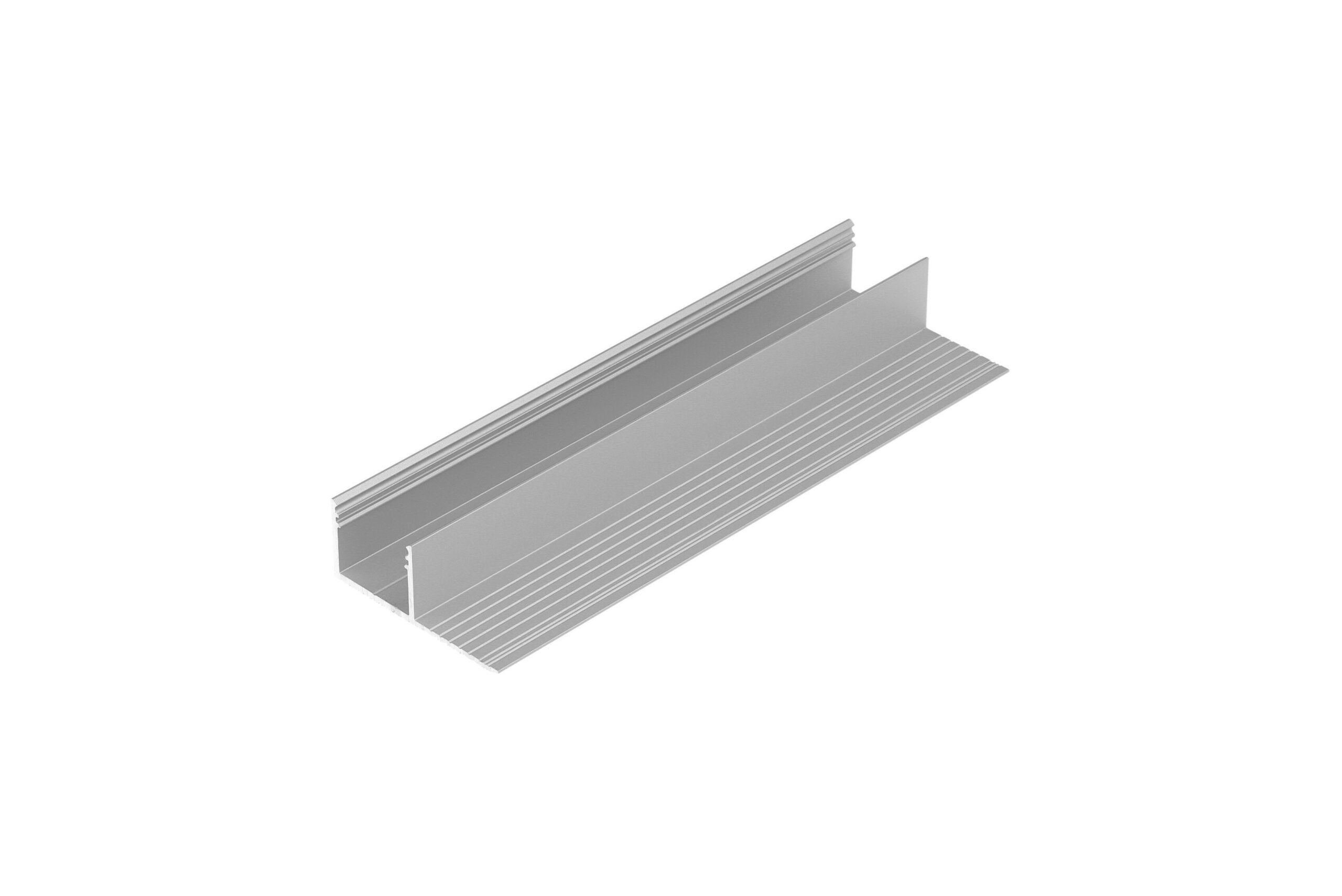

The PLANE14 SIDE BC3 is a plaster-in aluminium LED profile designed to create a clean, side-directed line of light within walls, ceilings and architectural details. The mounting body is concealed beneath the finished surface, leaving a precise illuminated edge that can be used to emphasise changes in plane, perimeter details and recessed features.

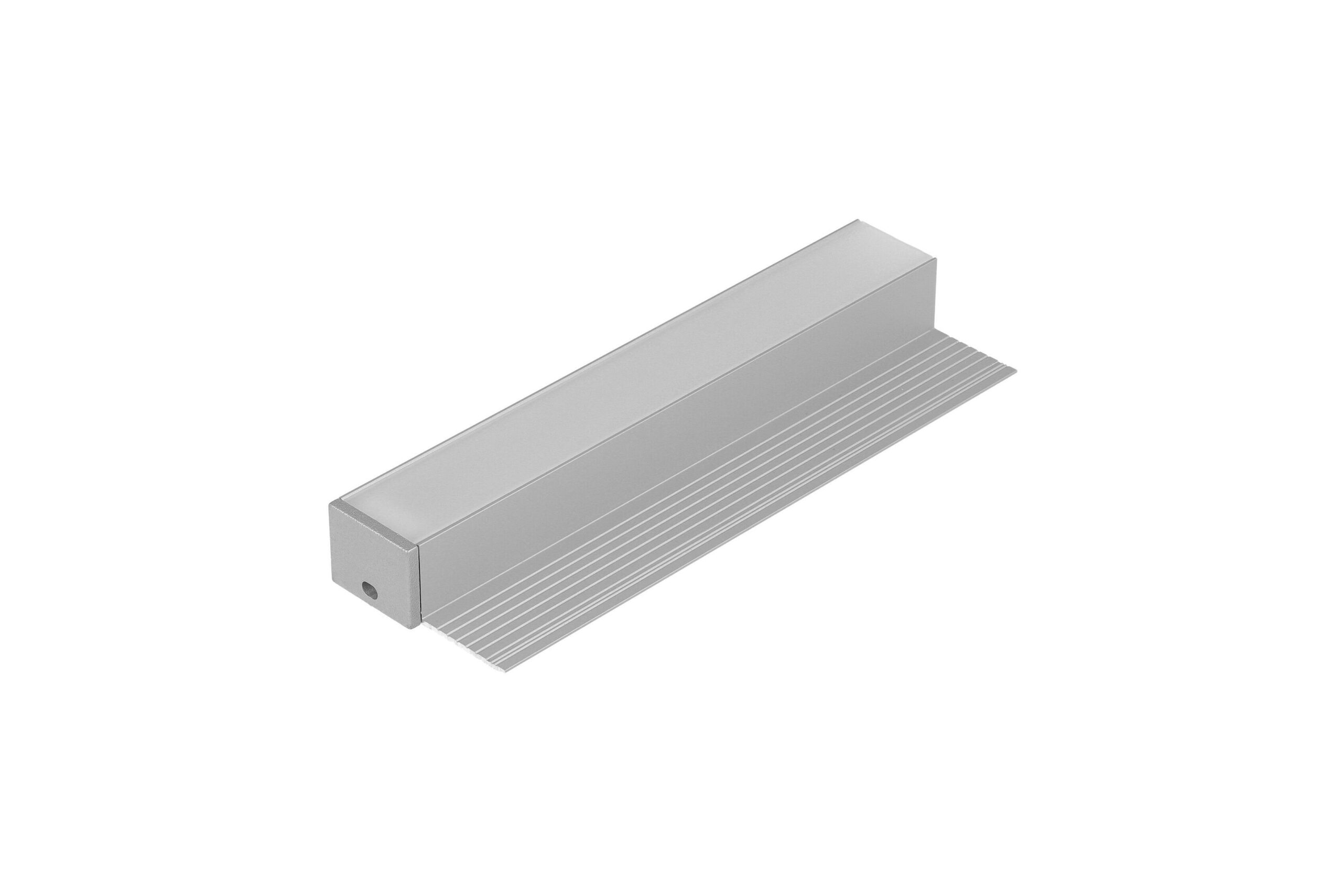

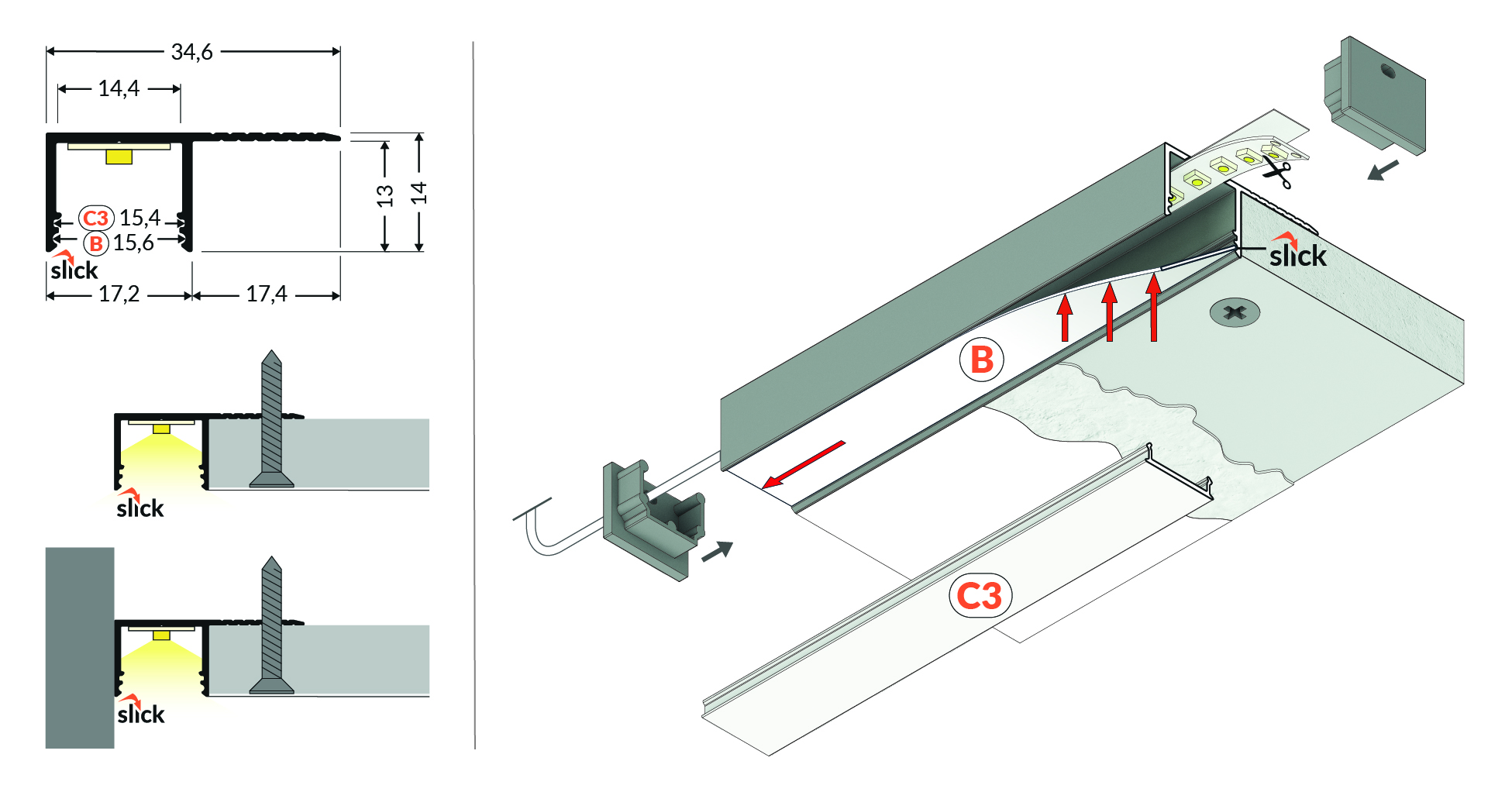

The profile accepts LED strip up to 14mm wide and is compatible with B slide-in and C3 click-fit diffusers. Manufacturer-listed lengths include 1m, 2m, 3m and 4.05m, with anodised, raw-aluminium and white-painted finishes available. Use correctly specified LED strip, a compatible driver and the dedicated end caps and installation accessories required for the project.

Tech Specs

Product	PLANE14 SIDE BC3
Profile Type	Plaster-in architectural aluminium LED profile
Maximum LED Tape Width	14mm
Diffuser Options	B slide-in or C3 click-fit
Available Lengths	1m, 2m, 3m and 4.05m
Available Finishes	Anodised, raw aluminium and white painted
Application	Side-directed, trimless architectural lighting
Material	Aluminium

Product Data Sheet

PDF Download
