| Product Height | 16mm |
|---|---|
| Available Body Colours | Anodised, Raw, White |
| Available Diffuser | Click, Slide |
| Available Diffuser Colours | Black, Frosted, Opal, Transparent |
| Available Lengths | 2m |
| Application | Plaster In |

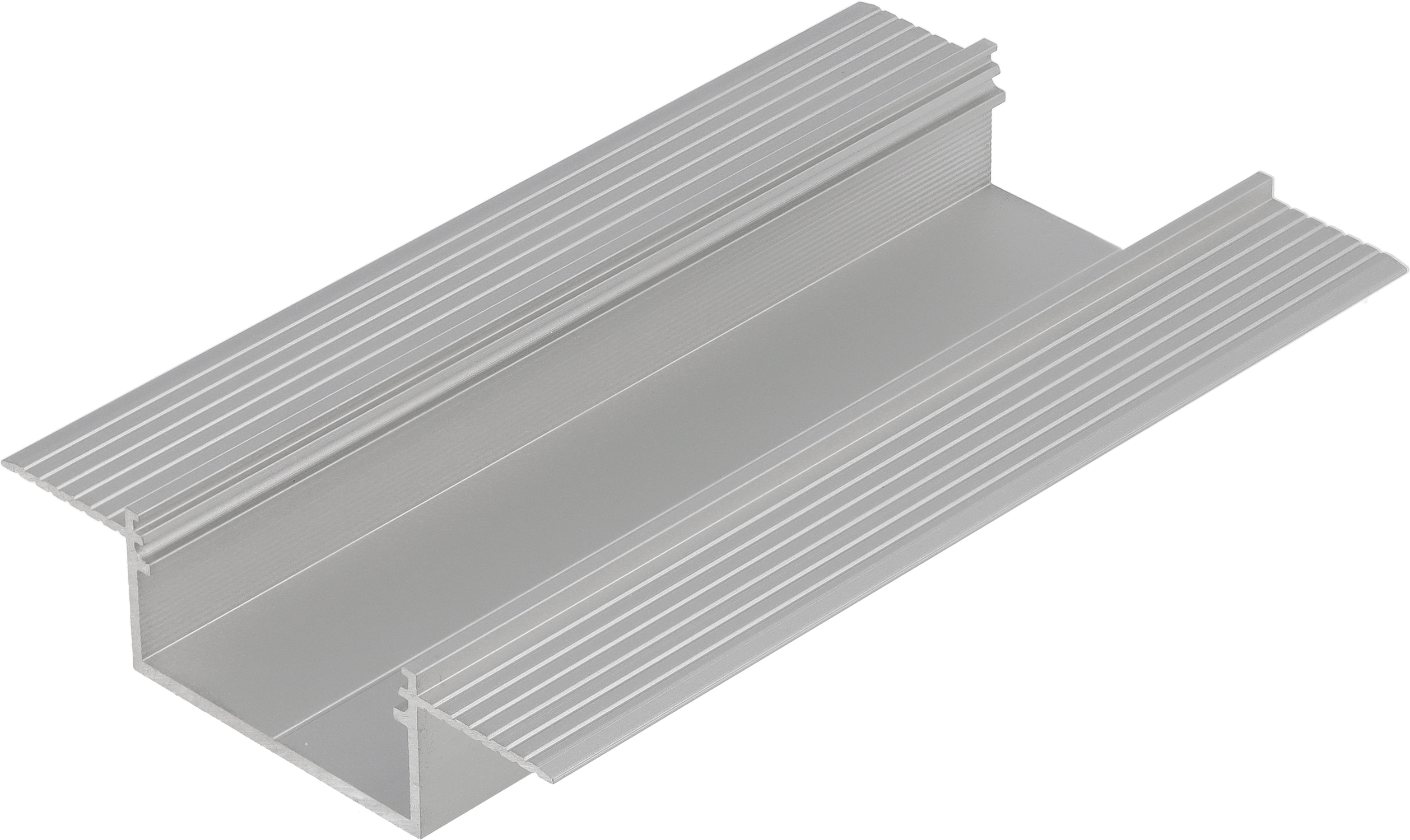

The VARIO30-04 is a plaster-in aluminium LED profile from the modular VARIO30 family. It creates a wide, trimless architectural light line in walls and ceilings, with the profile wings concealed beneath the finished surface.

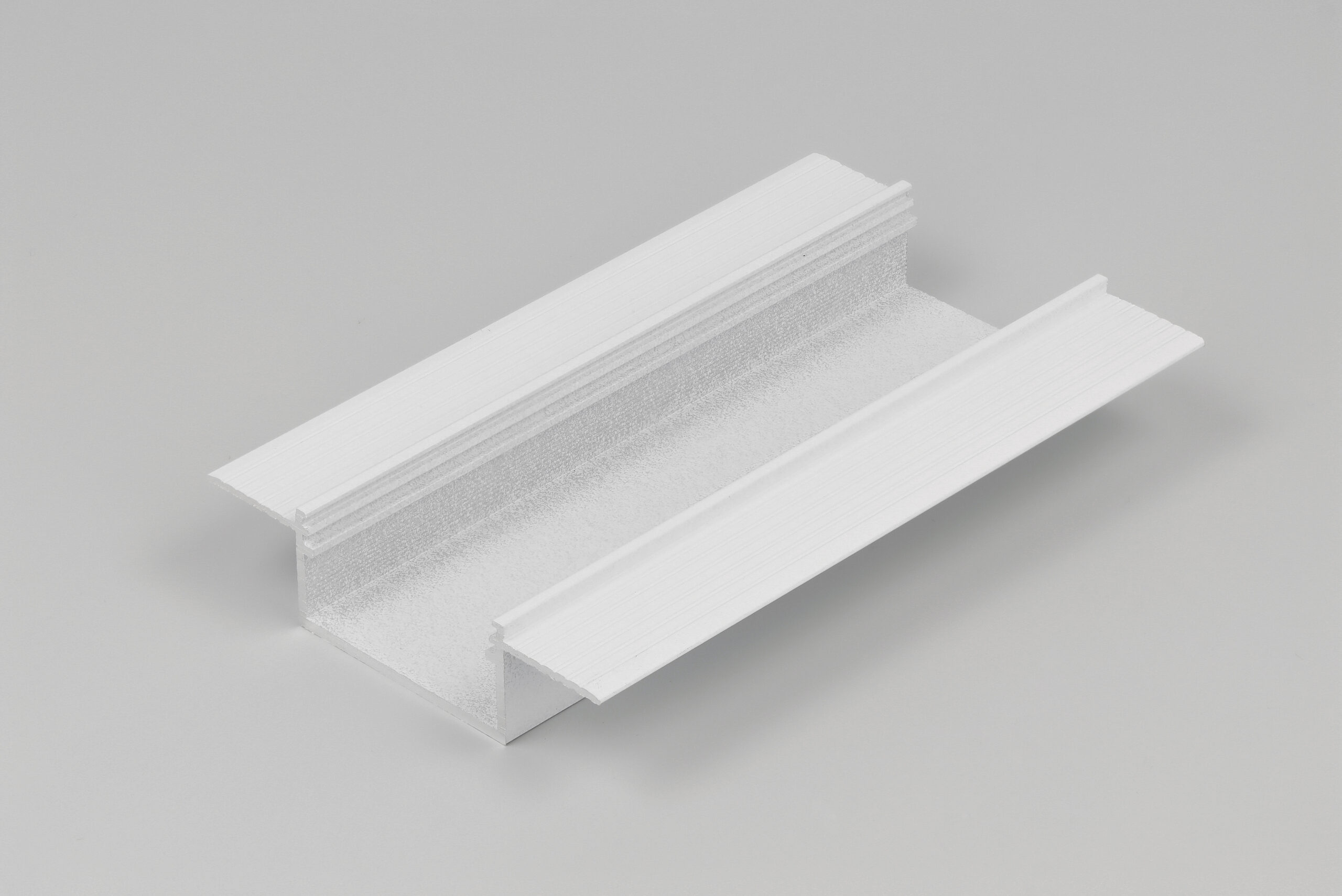

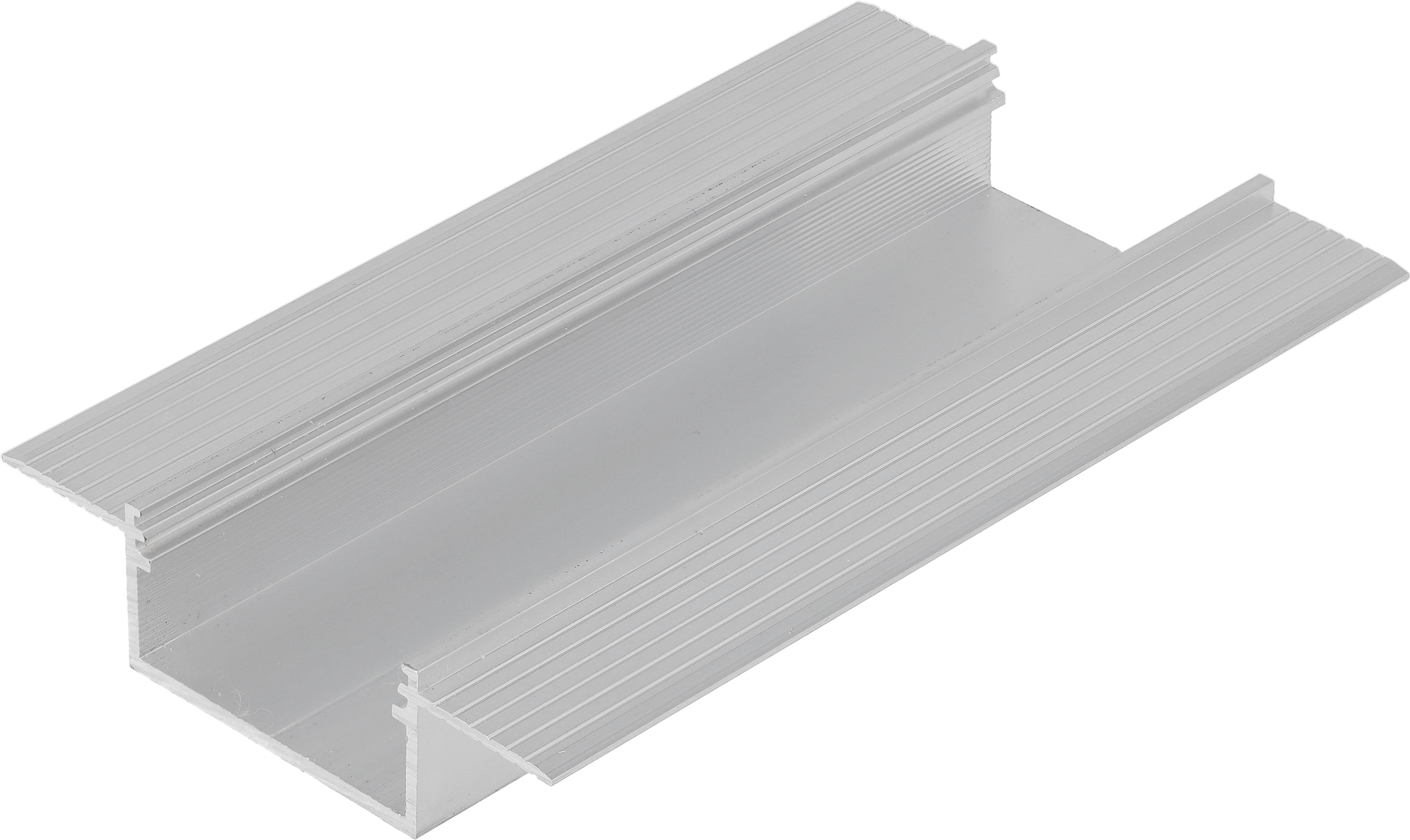

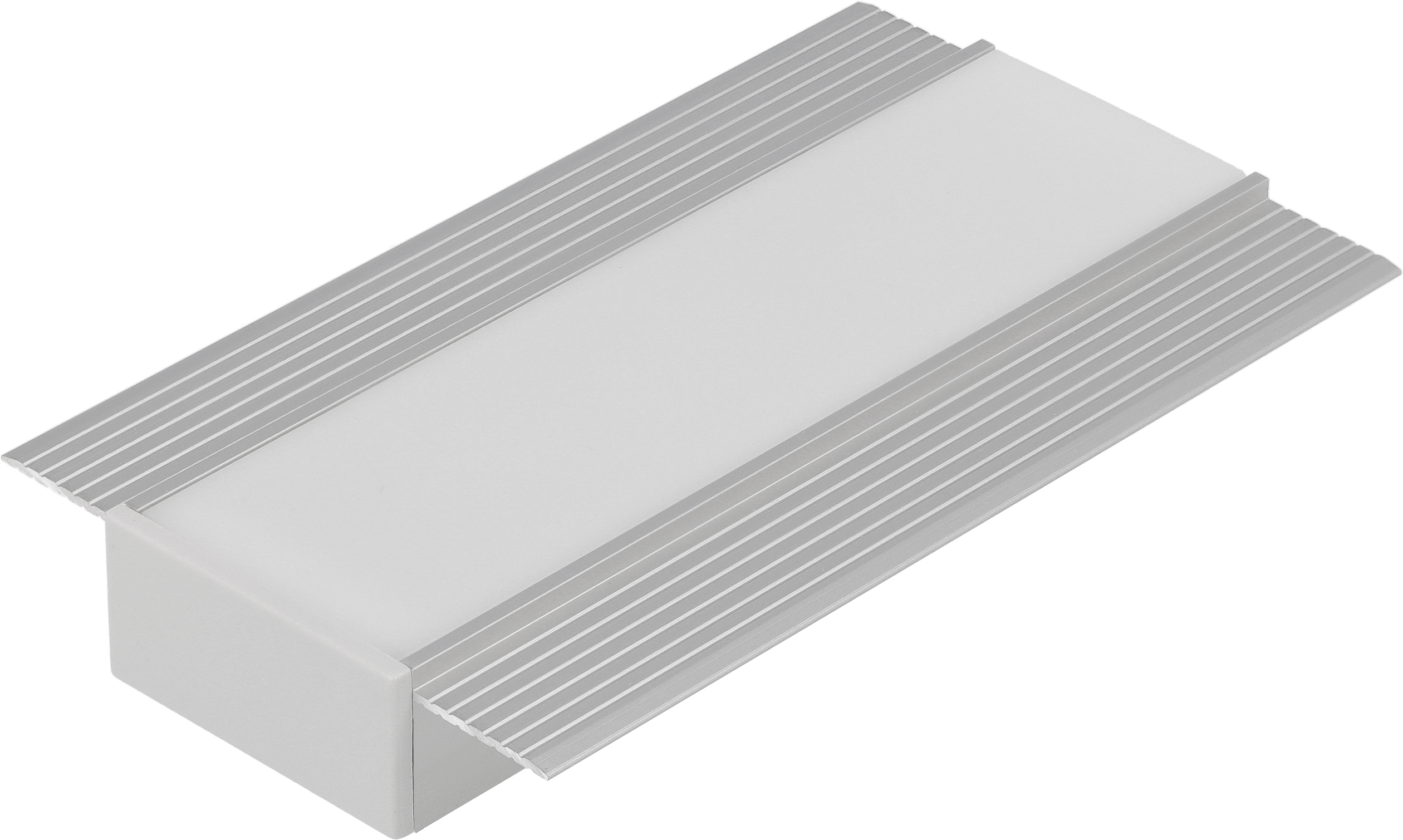

A9 slide-in and C9, D9 or E9 click-fit diffusers provide a choice of lighting effects. The profile is available in raw aluminium and white finishes, with 1m, 2m, 3m and 4.0m variants available to order.
| Profile Type | Plaster-in architectural aluminium LED profile |
|---|---|
| Application | Trimless wall or ceiling lighting |

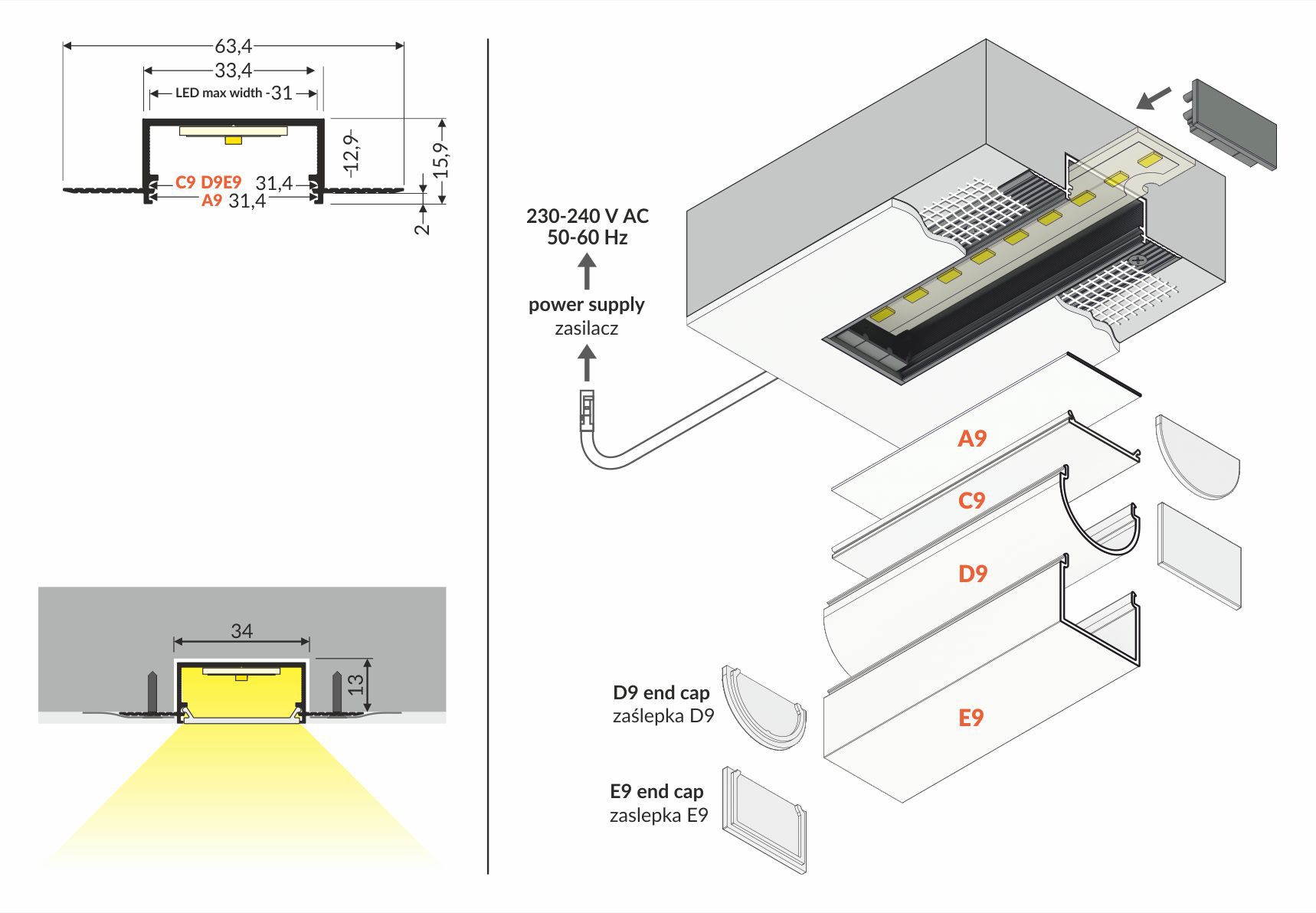

| Approximate Overall Width | 63.4mm including plaster-in wings |
| Approximate Height | 15.9mm |
| Diffuser Options | A9 slide-in; C9, D9 or E9 click-fit |
| Available Lengths | 1m, 2m, 3m and 4.05m |
| Finishes | Raw aluminium and white |
| Material | Aluminium |
PDF Download
